Feature highlights:The OBC Mobile Retractable Telescopic Spray Booth offers electric heating, a waterproof PVC design, and an environmental 3-filter process for efficient car painting. Equipped with LED lighting, axial fans, and a maximum baking temperature of 80°C, it ensures professional results. Certified by CE, it complies with EU safety standards, providing market access and reliability for users.

Features

1. Product positioning and core functions

Telescopic mobile painting room is a special painting room equipment, which combines the characteristics of "automatically expanding into a closed/semi-enclosed painting space when used" and "retracting to a very small volume when idle". It is an integrated product of advanced painting room design concepts and technologies, and has a wide coverage of application scenarios.

2. Special advantages of telescopic mobile paint studio

‌Adapability: Designed to solve the "large-scale workpiece handling/transportation problems", the structure can be adjusted freely according to the workpiece size, production site, and operating space, without relying on special transportation tools;
Practicality: During the production process, the process of "frequently using cranes to lift large heavy objects" is greatly simplified, and the extension length can be flexibly adapted to any working area, with both adaptability and convenience.

Product Details

inner dimension	5900 × 23 00 × 250 0 mm (L × W × H)
outer dimension	6000 × 2400 × 29 00 mm (L × W × H)
Left air inlet operation box	4800 × 80 0 × 290 0 mm (L × W × H)
Right exhaust filter box	4800 × 80 0 × 290 0 mm (L × W × H)
Basement	50x50x2.0 square tube support frame, covered with pattern board
Direct front to rear doors	Door size: 2100 × 22 00mm (W×H), sheet metal bending door, 2 door leaves, square tempered glass window, filling: EPS. (The filling can be adjusted according to needs)
main structure	Container corner fittings + 4mm steel plate bent horizontal and longitudinal beams are welded and formed, and the surface is sprayed with outdoor anti-rust paint
Air inlet operation box structure	50x50 square tube welded frame, 50mm thick EPS wall installed on the outside, 500x1000 tempered glass windows installed on each wall panel; casters with brakes installed on the bottom, can be freely moved and assembled
Exhaust filter box structure	50x50 square tube welded frame, 50mm thick EPS wall installed on the outside, 1000mm high paint mist filter paper and a layer of fiberglass cotton installed, which can be freely moved and assembled
working door	2 sets, working door size: 700×2000mm (W×H), equipped with pressure lock, glass observation window ; installed at the front and rear of the left air inlet operation box
wall panel	EPS wall panel, effective width 1150mm, total thickness 50mm , color steel plate thickness: 0.426mm, white, steel edges sealed on both sides; ( Rock wool, PU optional )
roof	EPS wall panel, effective width 1150mm, total thickness 50mm , color steel plate thickness: 0.426mm, white, steel edges sealed on both sides; ( rock wool, PU optional ) top waterproof treatment;
illumination	Top lighting: 8 groups × 4 pcs = 32 pcs 18W lamps Illumination ≥800Lux
Make-up air unit	2 exhaust fans, single motor power: 0.55KW; total flow: 20000m3 /h, no-load wind speed: 0.25m/s; air supply manual adjustment damper .
Exhaust air unit	1 single-inlet axial flow fan, single motor power: 4KW; total flow: 20000m3 /h, no-load wind speed: 0.25m/s; exhaust manual adjustment damper .
Heating system	No heating system
filtering system	1. Air supply primary filter cotton : EN 779 level: G3 2 Glass fiber paint-resistant cotton blanket filtration: EN 779 Level: G3; 3Paint mist filter paper : EN 779 Level: G3;
Electronic control system	Spray paint, lighting switch, fault indicator light, temperature controller, power switch, emergency stop switch, timer, pressure gauge, pressure alarm
Pipeline system	The air supply and exhaust are each equipped with 3 sections of 7 00 x 7 00 x 1000mm straight air ducts, 1 section of 700 x 700mm 90° elbow, and 1 section of 800 x 800mm 45° elbow;
Total power	8KW

Mobile Retractable Telescopic Spray Booths Car Painting Room with Electric Heatingg Paint 0

Mobile Retractable Telescopic Spray Booths Car Painting Room with Electric Heatingg Paint 1

Mobile Retractable Telescopic Spray Booths Car Painting Room with Electric Heatingg Paint 2

Mobile Retractable Telescopic Spray Booths Car Painting Room with Electric Heatingg Paint 3

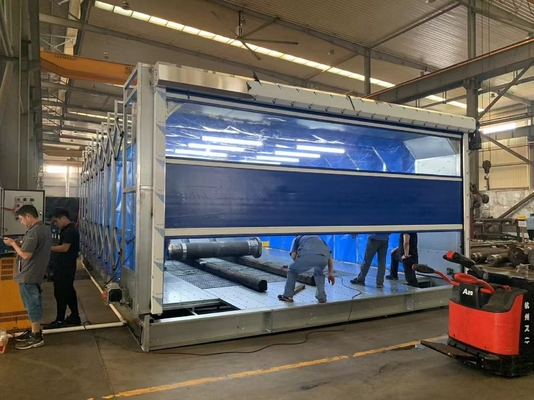

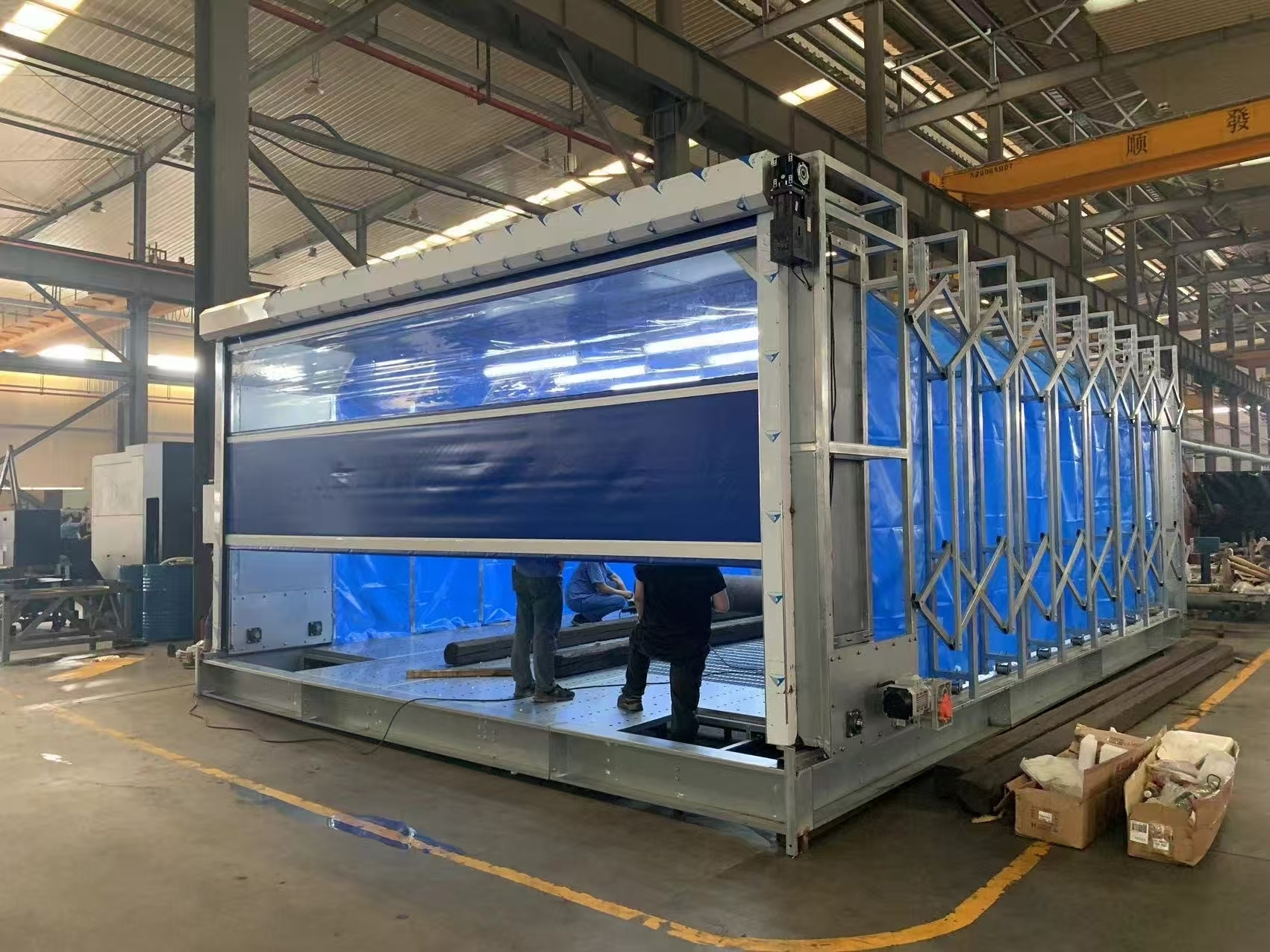

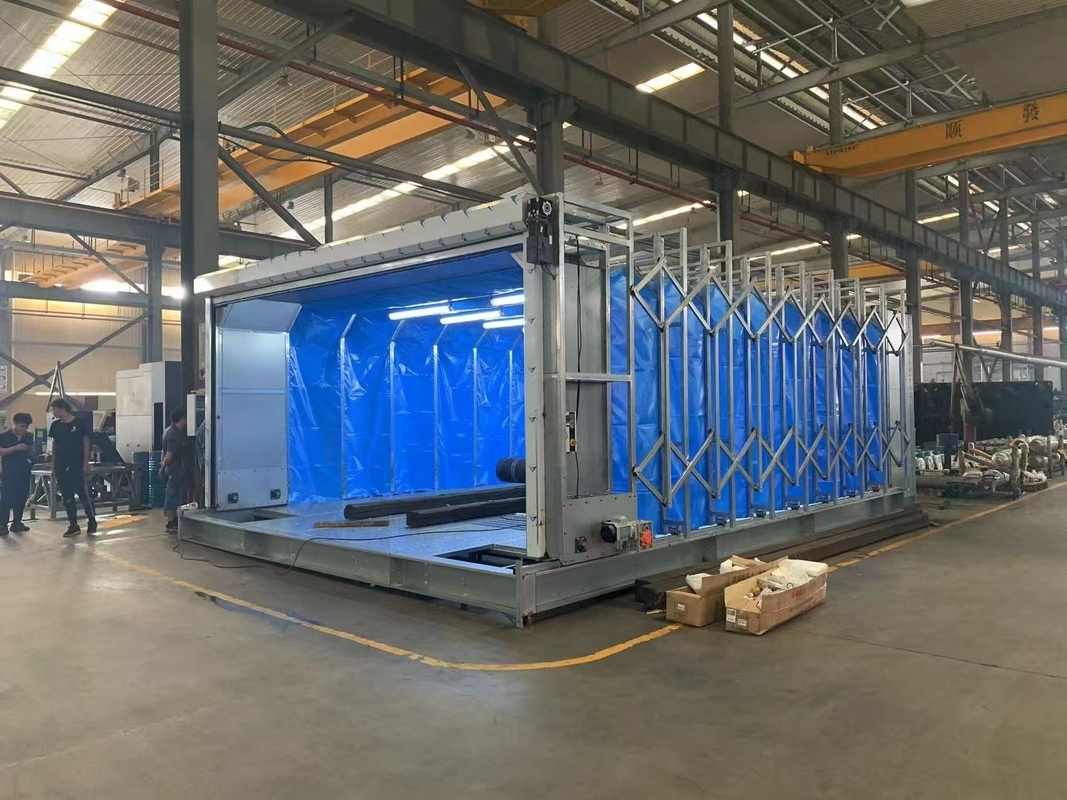

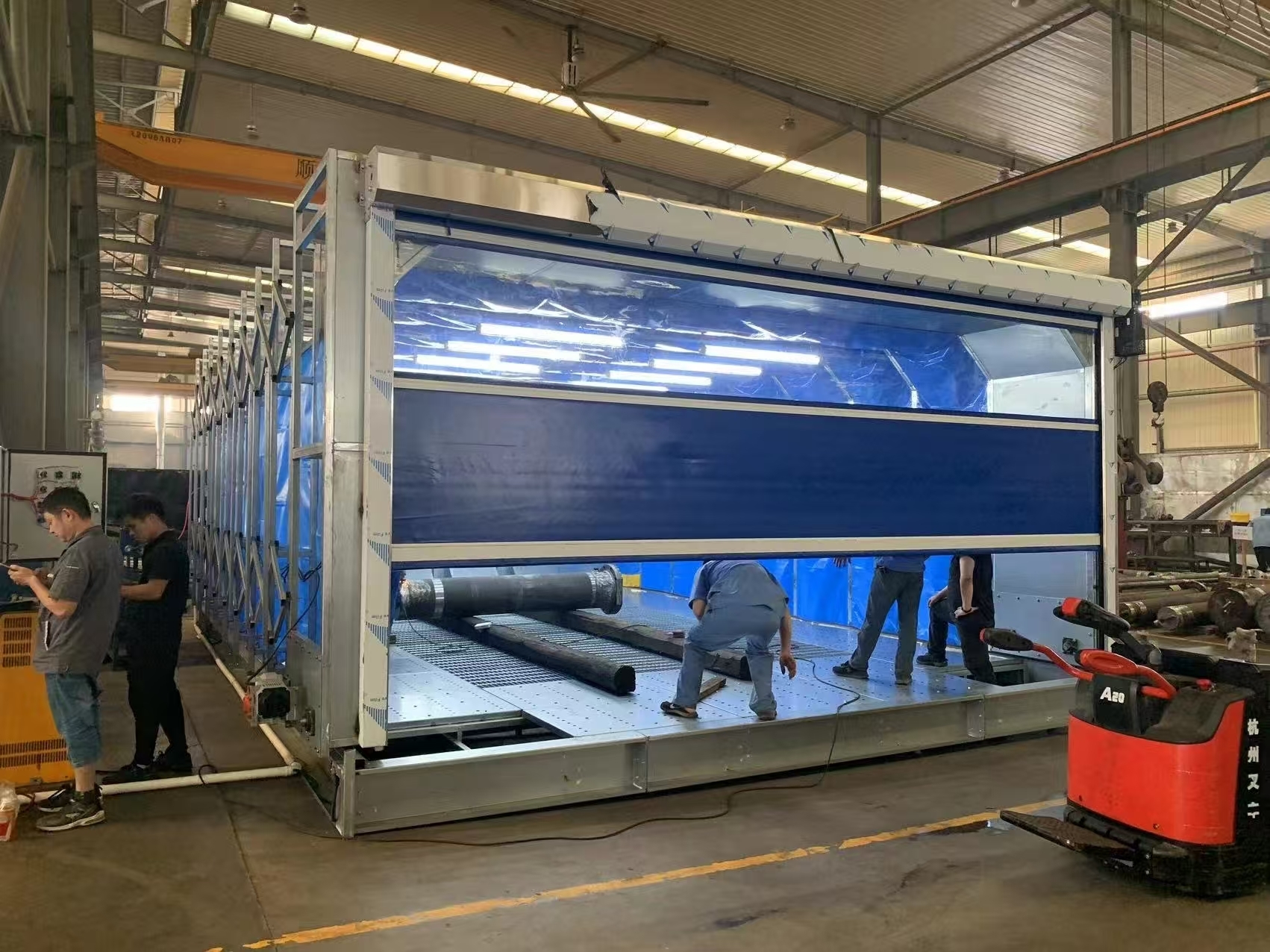

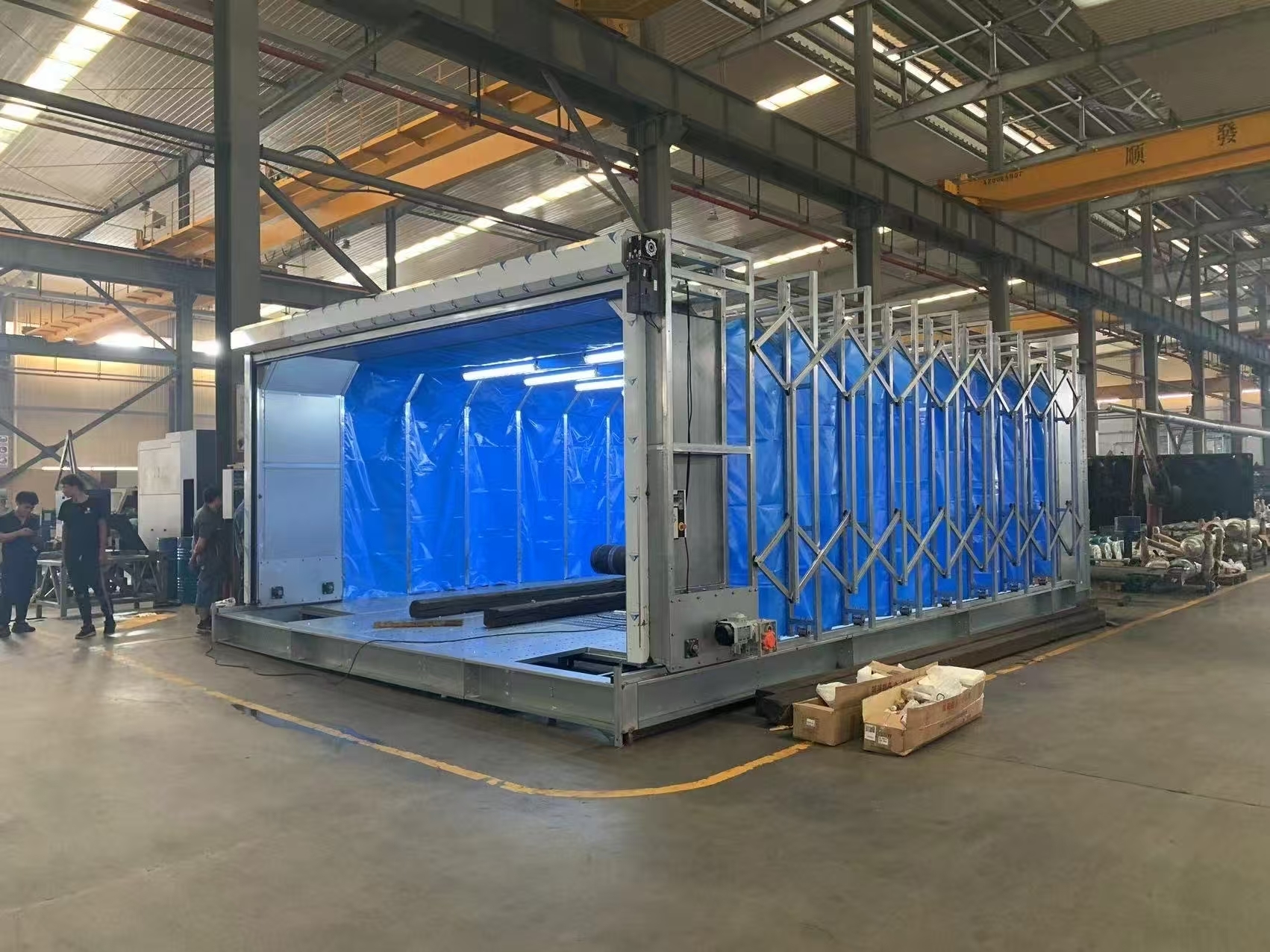

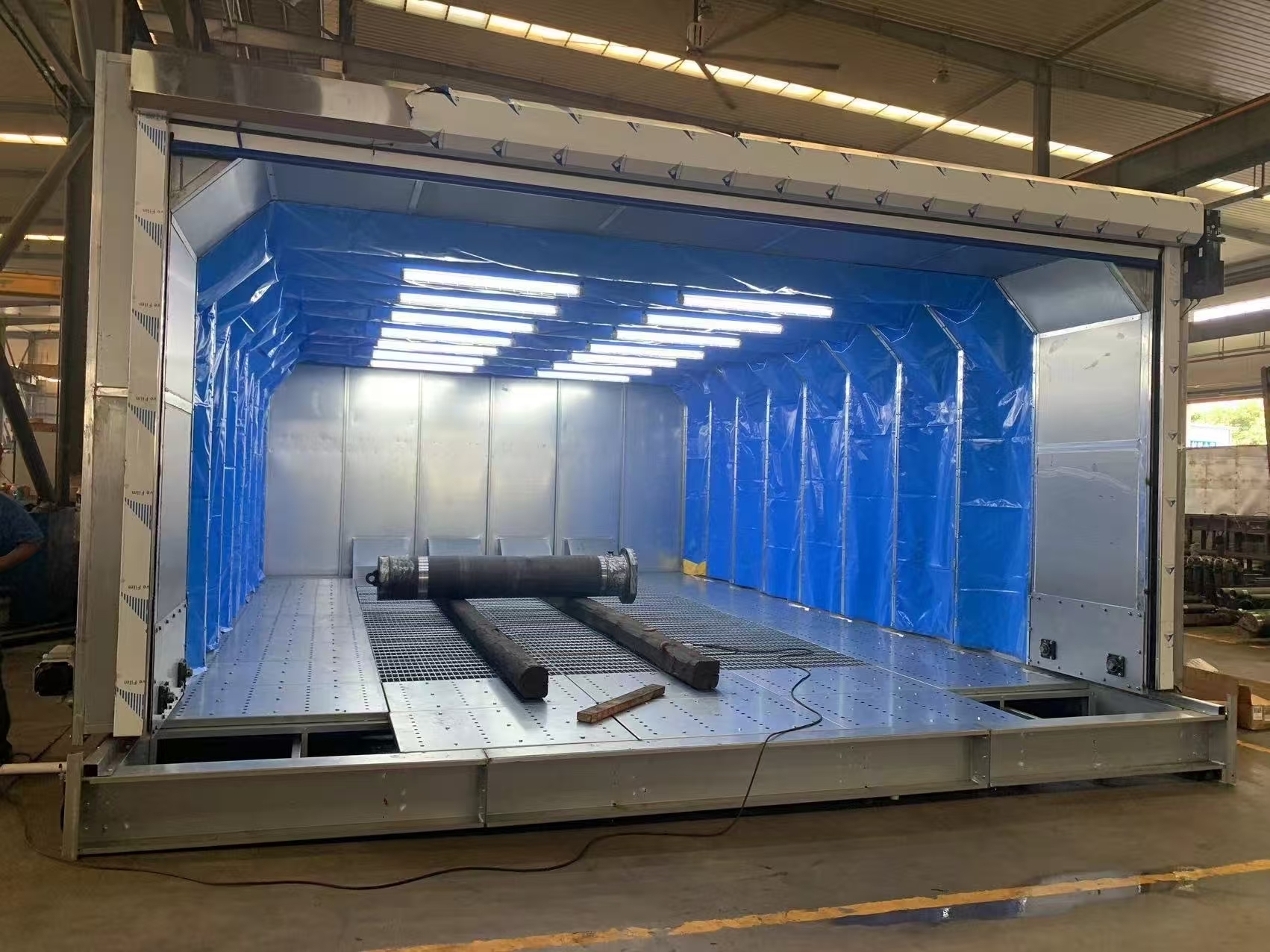

Mobile container spray paint booth for automobiles: the main body of the spray

paint in the middle, the air inlet operation box on the left, and the exhaust filter box

on the right. It is suitable for vehicle maintenance without a fixed site.

Configuration table of automobile mobile container spray paint room

Mobile Retractable Telescopic Spray Booths Car Painting Room with Electric Heatingg Paint 4

Mobile Retractable Telescopic Spray Booths Car Painting Room with Electric Heatingg Paint 5

Mobile Retractable Telescopic Spray Booths Car Painting Room with Electric Heatingg Paint 6

Mobile Retractable Telescopic Spray Booths Car Painting Room with Electric Heatingg Paint 7

Mobile Retractable Telescopic Spray Booths Car Painting Room with Electric Heatingg Paint 8

Peace Environmental Protection always adheres to the core principle of "quality first, honest service" and provides
excellent solutions for customers in the field of environmental protection equipment. The factory is located in
Guangzhou City, Guangdong Province.
The company's main products include environmental protection equipment such as spray booth,coating line,painting line
and waste gas and wastewater treatment,if you have any inquiry,please leave the inquiry here directly,will be respond to you within 12 hours
We will make the exact Design Drawing,Design Case in words,and Quotation in detail,just waiting for you leave the message here.

Tag:

Place of Origin:	China
Brand Name:	CoatTech
Certification:	CE
Model Number:	Mbooth-2

Minimum Order Quantity:	1set
Price:	USD5000-USD5000/SET
Packaging Details:	Normal Package
Delivery Time:	15 Working Days
Supply Ability:	500SET/MONTH

Features:	Portable, Easy To Assemble, Durable	Lighting:	LED
Warranty:	1 Year	Power Source:	Electric
Size:	Customizable	Type:	Mobile
Application:	Spray Painting	Material:	Steel
Voltage:	220V/380V	Color:	White
Air Flow:	12000m³/h
Highlight:	mobile retractable spray booth , electric heating paint booth , telescopic car painting room
