Full-Automatic Overhead Conveyor Powder Coating Line with Cyclone Recovery & Curing Tunnel

MOQ:	1
Price:	USD2000-USD10000/SET
Standard Packaging:	With regular Film and Carton
Delivery Period:	15 DAYS After Deposit
Payment Method:	T/T
Supply Capacity:	500SET/MONTH

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

CoatTech

Certification

Model Number

OCCL-30

Warranty:

1 Year

Control System:

Material:

Steel

Conveyor Load Capacity:

Up To 500kg

Conveyor Speed:

Adjustable

Coating Color:

Customizable

Heating Method:

Electric/ Gas/ Infrared

Power Supply:

AC 380V/50Hz

Type:

Continuous Coating Line

Conveyor Type:

Overhead Conveyor

Cooling Method:

Air/ Water

Heating Temperature:

Adjustable

Cooling Time:

Adjustable

Coating Type:

Powder Coating

Highlight:

full-automatic powder coating line

overhead conveyor curing tunnel

cyclone recovery coating system

Product Description

Full-Automatic Overhead Conveyor Powder Coating Line with Cyclone Recovery & Curing Tunnel

Overview

The CoatTech Full-Automatic Overhead Conveyor Line is a turnkey solution designed for high-efficiency mass production. This closed-loop system seamlessly integrates automated pre-treatment, moisture drying, electrostatic powder application, and high-temperature curing. By automating the transport and coating process, this line significantly reduces labor costs while ensuring a uniform, high-quality finish on every workpiece.

Core Features

Continuous Workflow: The QXG-Series suspension chain conveyor runs continuously, enabling high-volume throughput without production bottlenecks.
Smart Automation: Controlled by a central PLC touch screen (HMI) with Variable Frequency Drive (VFD) for precise speed adjustments (0-5 m/min).
Quick Color Changes: Features a Mono-Cyclone + After-filter recovery system that achieves 98%+ powder recovery and allows color changes in under 15 minutes.
Energy Saving Design: The curing oven utilizes an "air return" heating method and high-density rock wool insulation to maximize thermal efficiency.

Technical Specifications Table (Typical Line Configuration):

Parameter	Economic Series (Start-up)	Performance Series (High-Volume)	Customized Options
Conveyor Model	QXG-150 (Max load 30kg/hanger)	QXG-250 (Max load 50-80kg/hanger)	Heavy Duty I-Beam / Power & Free
Line Speed	0.5 - 2.5 meters/min (Adjustable)	1.0 - 5.0 meters/min (VFD Control)	High Speed / Step-Index
Powder Recovery	Cartridge Filter Recovery (95%)	Mono-Cyclone + After Filter (98%+)	Multi-Cyclone / Magic Center
Color Change Time	Approx. 30 - 45 mins	Approx. 10 - 15 mins	< 10 mins (Fast Color Change)
Spray Guns	Manual Spray Station (2-4 units)	Automatic Reciprocator + 4-12 Auto Guns	Wagner / Gema / Nordson integration
Pre-treatment	Offline / Manual Dip Tank	Online Automatic Spray (3-5 Stages)	Stainless Steel Tunnel / Silane
Curing Oven	Bridge Type (Heat lock)	Bridge or Tunnel Type	IR Booster Pre-heating
Heating Source	Electric / LPG	Natural Gas / Diesel	Infrared / Biomass
Control System	Analog Panel	PLC + Touch Screen (HMI)	Remote Monitoring / SCADA

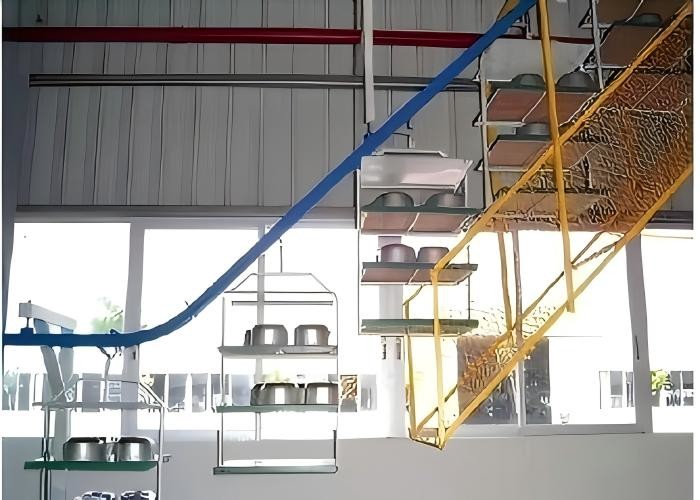

Full-Automatic Overhead Conveyor Powder Coating Line with Cyclone Recovery & Curing Tunnel 0

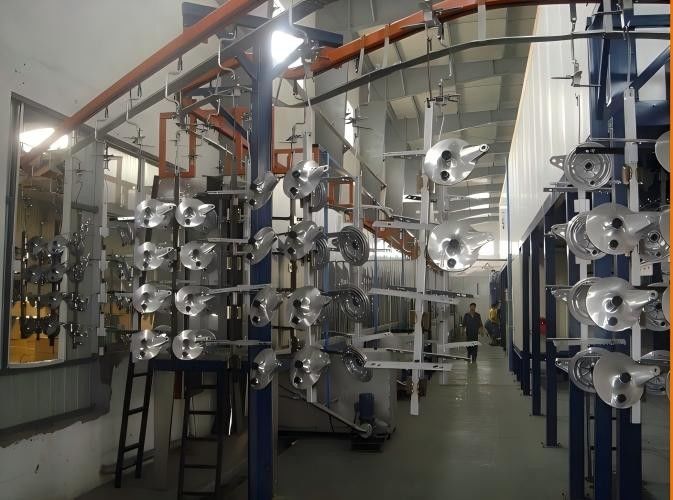

Full-Automatic Overhead Conveyor Powder Coating Line with Cyclone Recovery & Curing Tunnel 2
