Professional Downdraft Automotive Spray Paint Booth With Heated Baking & Waterborne Drying System For Car

MOQ: 1
Price: USD2000-USD10000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 500SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
OCCL-33
Warranty:
1 Year
Control System:
PLC
Material:
Steel
Conveyor Load Capacity:
Up To 500kg
Conveyor Speed:
Adjustable
Coating Color:
Customizable
Heating Method:
Electric/ Gas/ Infrared
Power Supply:
AC 380V/50Hz
Type:
Continuous Coating Line
Conveyor Type:
Overhead Conveyor
Cooling Method:
Air/ Water
Heating Temperature:
Adjustable
Cooling Time:
Adjustable
Coating Type:
Powder Coating
Highlight:

Professional automotive spray paint booth

,

Heated baking spray booth

,

Waterborne drying spray paint system

Product Description

Professional Downdraft Automotive Spray Paint Booth with Heated Baking & Waterborne Drying System



Overview



Engineered for the modern body shop, the CoatTech Downdraft Booth provides a contaminant-free environment for premium automotive refinishing. Available in three distinct configurations to suit your budget and performance needs, this booth features vertical airflow to push overspray away from the vehicle. The "Waterborne Ready" option includes specialized corner blowers to accelerate the flashing time of water-based paints.



Core Features

  • Full Vertical Airflow: 0.30 m/s airspeed ensures overspray is immediately captured in the floor filters, keeping the finish clean.

  • Shadow-Free Lighting: High-CRI LED lighting (>1000 Lux) mimics daylight for accurate color matching and defect inspection.

  • Smart Cycle Control: One-touch switching between "Spray," "Flash-off," and "Bake" cycles with automatic temperature regulation.

  • Installation Flexibility: Choose between a metal basement with ramps (no digging) or a pit-style installation for a flush floor.

Technical Specification Sheet

Parameter Series D: Eco-Garage (Start-up) Series E: Pro-Service (4S Center) Series F: Custom Commercial (Van/Bus)
Catalog Code CT-AUTO-ECO CT-AUTO-PRO CT-AUTO-MAX
Internal Size 6.9m x 3.9m x 2.65m 7.0m x 4.0m x 2.8m 8m - 15m Length (Custom)
Airflow Capacity 20,000 m3/h 24,000 - 30,000 m3/h 36,000 - 60,000 m3/h
Intake Fans 2 x 3.0 kW Centrifugal 2 x 4.0 kW Turbo Fan Multiple 5.5 kW / 7.5 kW Units
Exhaust Fans 1 x 4.0 kW Centrifugal 1 x 5.5 kW Turbo Fan High Capacity Extraction
Heating Unit Riello G10 Diesel Riello G20 Diesel / Gas Direct Fire Gas Burner
Wall Insulation 50mm EPS Panel 50mm Rockwool (Fireproof) 75mm Rockwool
Basement 300mm Grid/Plate Mix 350mm Full Grating Heavy Duty Beam Reinforcement
Waterborne Sys N/A Corner Air Nozzles (Optional) Integrated Ceiling Blowers

Applications:

Automotive parts, aluminum profiles, home appliances (white goods), metal fencing, and racking systems.

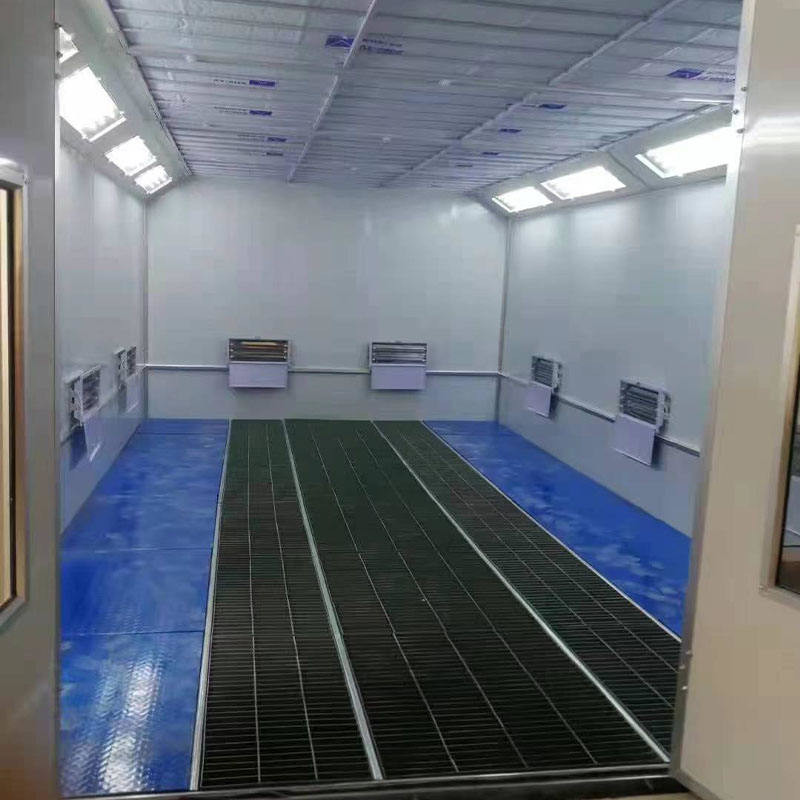

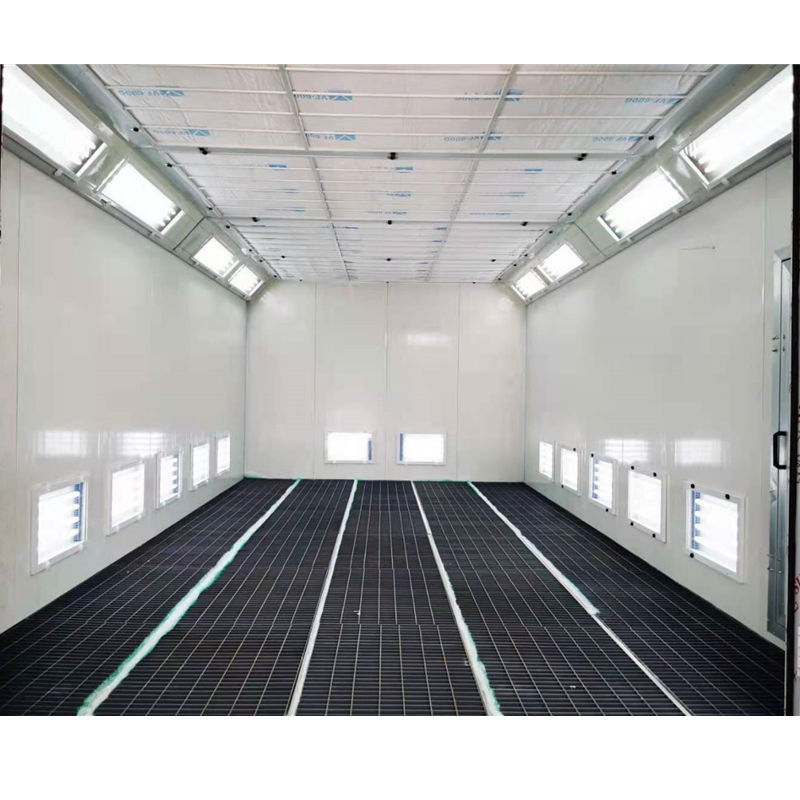

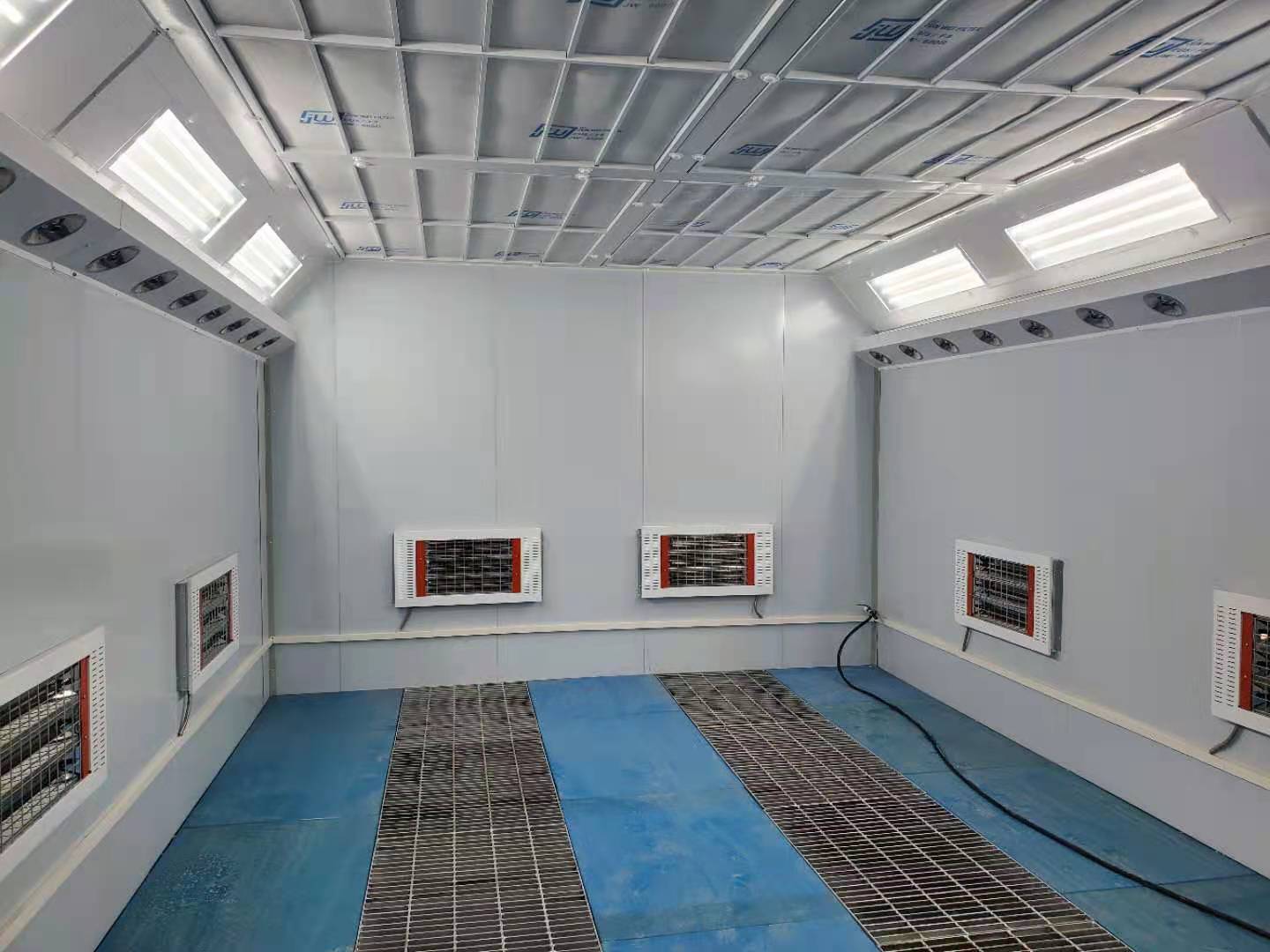

Professional Downdraft Automotive Spray Paint Booth With Heated Baking & Waterborne Drying System For Car 0Professional Downdraft Automotive Spray Paint Booth With Heated Baking & Waterborne Drying System For Car 1Professional Downdraft Automotive Spray Paint Booth With Heated Baking & Waterborne Drying System For Car 2Professional Downdraft Automotive Spray Paint Booth With Heated Baking & Waterborne Drying System For Car 3

Professional Downdraft Automotive Spray Paint Booth With Heated Baking & Waterborne Drying System For Car 4Professional Downdraft Automotive Spray Paint Booth With Heated Baking & Waterborne Drying System For Car 5

Professional Downdraft Automotive Spray Paint Booth With Heated Baking & Waterborne Drying System For Car 6
