Turnkey Automated Monorail Conveyor & Thermal Processing Coating Line Systems

MOQ: 1
Price: USD2000-USD10000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 500SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
OCCL-17
NAME:
Coating Line 17
Power Supply::
220V/50HZ/1Ph Or Other Option
Using Energy::
Electric Or Other Option
Motor::
Chinese Brand Or Import Brand
Control Sytem::
Switch Style Or PLC Touch Screen Control
Color::
White Or Other Option
Application::
Metallic Products
Coating:
10-50um
Dimention::
As Require
Product Description

1.Turnkey Automated Monorail Conveyor & Thermal Processing Coating Line Systems


Upgrade your surface finishing with our high-throughput overhead monorail systems and energy-efficient thermal baking ovens. Built for 24/7 use. Get a custom quote today!


2.Key Advantages for Your Manufacturing Facility


1.Streamlined Floor Space: Maximize your factory's vertical and horizontal footprint with custom-routed overhead tracks that keep the shop floor clear for other operations.

Optimized Energy Consumption: Advanced thermal insulation and recirculating airflow technology within the baking chamber drastically reduce fuel or electricity waste.


2.Heavy-Duty Reliability: Engineered with wear-resistant components to handle demanding payloads and sustain continuous, 24/7 manufacturing cycles.


3.Smart Line Synchronization: Intelligent drive controls ensure perfect timing between the transport speed and the required baking duration for a flawless finish every time.



3. Technical Specifications


Parameter Specification
System Architecture Enclosed Track Overhead Monorail
Track Profile Heavy-Duty Enclosed Tubular Track
Maximum Weight Capacity Up to 150 kg (330 lbs) per Suspension Point
Standard Pitch Dimension 400 mm (15.7 in) C-C
Drive Mechanism Variable Speed Linear Chain Drive Unit
Operational Line Speed Adjustable 1.0 - 10.0 m/min (3.2 - 32.8 ft/min)
Thermal Chamber Type Forced Convection Baking Oven
Maximum Operating Temp 260°C  (500°F)
Insulation Specs 150mm High-Density Mineral Wool Panels
Heating Power Options Natural Gas, Propane (LPG), or Electrical Heaters
Automation Interface Allen-Bradley or Siemens PLC with Smart HMI
Main Input Voltage 380V/415V/480V, 3-Phase, 50/60Hz
Integrated System Protections Over-Torque Sensors, Emergency Pull Cords along track

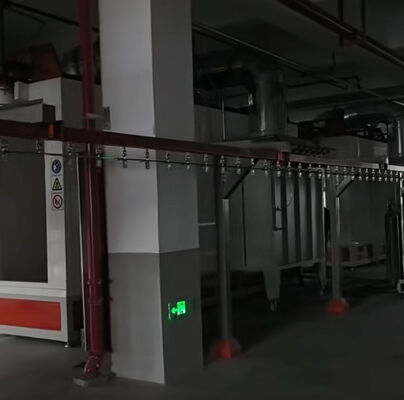

Turnkey Automated Monorail Conveyor & Thermal Processing Coating Line Systems 0

Turnkey Automated Monorail Conveyor & Thermal Processing Coating Line Systems 1


Ready to elevate your surface treatment capabilities and cut down on energy costs? Don't settle for off-the-shelf solutions.

Reach out to our engineering specialists today to receive a personalized facility layout drawing and detailed pricing for your next coating line project!


Turnkey Automated Monorail Conveyor & Thermal Processing Coating Line Systems 2
