Industrial Automotive & Equipment Paint Curing Down-draft Booth

Global automotive repair centers, heavy equipment manufacturers, industrial coating service providers, automotive customizers,if you are looking for below booth,please pay attention

Industrial paint baking booth, automotive spray and bake room, high-efficiency paint curing oven, CoatTech finishing system, down-draft spray booth, eco-friendly coating enclosure.

high-performance Industrial Automotive & Equipment Paint Curing Booth. Designed to deliver exceptional finish quality, this advanced baking and spraying system integrates precision thermal control, uniform down-draft airflow, and heavy-duty structural insulation to optimize coating adhesion and curing times for vehicles and industrial components.

Core Focus

Engineered for industrial buyers and workshop managers searching for reliable, energy-efficient turnkey paint curing enclosures, this system guarantees compliance with stringent environmental standards, superior illumination, and rapid thermal cycling to maximize daily shop throughput.

Key Technical Advantages & Innovations

1.Advanced Down-Draft Airflow Architecture: Features an optimized ceiling-to-floor ventilation matrix with recessed grated floor trenches, ensuring efficient removal of overspray and uniform air circulation.

2.Precision Thermal Curing: Equipped with high-efficiency heating systems and intelligent temperature controls to ensure rapid, even baking cycles and flawless paint hardening.

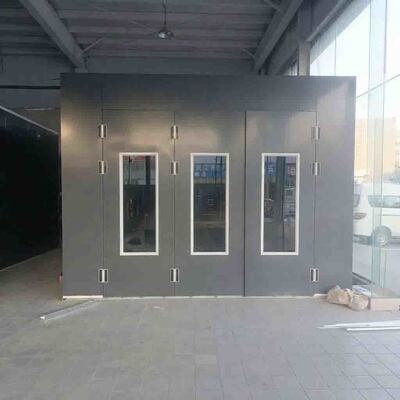

3.Robust Seal & Heavy-Duty Doors: Incorporates multi-panel reinforced access doors with integrated observation windows and heavy-duty sealing mechanisms to retain heat and prevent dust contamination.

4.High-Uniformity Lighting: Embedded angular ceiling and wall light fixtures equipped with high-lumen, explosion-proof LED tubes to eliminate shadows during critical spray and inspection tasks.

Technical Specification Sheet

Frequently Asked Questions (FAQ)

Q1: How does the down-draft airflow design improve the final paint finish?

A: The full down-draft configuration pulls air vertically from the ceiling filters past the workpiece and down through the floor grates. This forces paint overspray and micro-dust away from the surface immediately, preventing blemishes and ensuring a mirror-smooth gloss finish.

Q2: Can the booth switch easily between spraying and baking modes?

A: Yes. The integrated digital control panel allows operators to seamlessly transition between ambient spraying, flash-off, and high-temperature baking cycles with automated damper and burner adjustments.

Q3: What type of insulation and panels are used for energy efficiency?

A: The booth utilizes high-density, flame-retardant rockwool sandwich panels locked with tongue-and-groove edges, offering exceptional thermal insulation to minimize heat loss and lower energy consumption during baking operations.

Q4: How does the lighting setup eliminate shadows inside the booth?

A: By positioning high-output, explosion-proof LED fixtures diagonally along both the upper ceiling corners and side walls, the design provides multi-angle illumination that eliminates blind spots and shadows across the entire vehicle or workpiece.

Q5: What are the maintenance requirements for the filtration system?

A: The multi-stage filtration system features easily accessible pre-filters, ceiling diffusion filters, and floor paint arrestors. Routine maintenance involves scheduled visual checks and periodic replacement of filter media depending on daily operational volume.

Global Market Applications & Industry Impact

In modern automotive and industrial fabrication, surface finish durability dictates asset value and customer satisfaction. CoatTech’s paint curing booth provides a reliable, eco-friendly, and energy-conscious environment that shortens processing windows, reduces energy waste, and guarantees superior corrosion protection.

About CoatTech Intelligent Equipment

CoatTech Intelligent Equipment Co., Ltd. is a global leader in industrial surface finishing automation, intelligent painting lines, and environmental dust-removal systems. Committed to engineering excellence and sustainable manufacturing, CoatTech delivers custom-built turnkey solutions to clients across the Middle East, Southeast Asia, Europe, and the Americas.
