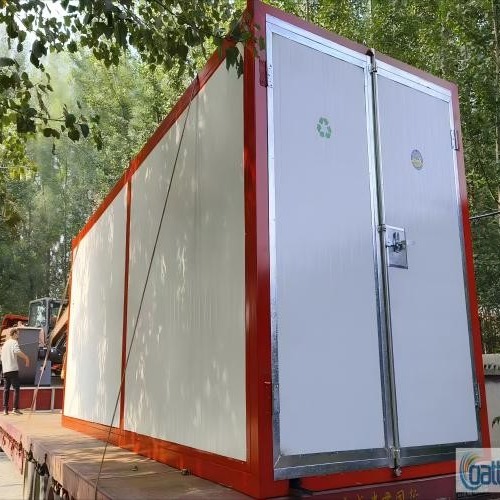

Automated High-Temperature Paint Spray Booth with Thermal Curing Oven
Description
A paint baking chamber, also known as a high-temperature curing chamber or drying chamber, is better suited for energy efficiency enhancement in modern coating applications. It avoids the high energy consumption and operating costs associated with conventional electric heating and oil-fired paint baking rooms, representing the development direction of the coatings industry with minimized drawbacks.
I. Primary Functions and Applications
Coating Curing: Accelerates solvent evaporation and resin cross-linking reactions in coatings through high-temperature heating, enabling rapid hardening.
Quality Enhancement: Ensures strong coating adhesion, smooth surfaces, and eliminates bubbles or orange peel texture.Scope of Application:
Industries: Automotive manufacturing, home appliances, furniture, mechanical equipment, electronics, etc.
Materials: Post-paint drying and curing for metal, plastic, and wooden components.
II. Structure and Components
Chamber Structure:
Materials: Insulated panels (e.g., rock wool, polyurethane) with inner walls made of high-temperature-resistant stainless steel or galvanized steel.
Sealing: Optimized design to minimize heat loss.
Heating System:
Heat Sources: Electric, gas, fuel, or infrared heating.
Hot Air Circulation: Forced air circulation via fans ensures uniform temperature distribution.
Temperature Control System:
Smart Control: PLC or PID controllers for precise temperature curve programming (heating, curing, cooling stages).
Sensors: Multi-point temperature monitoring to prevent localized overheating.
Ventilation System:
Exhaust: Removes VOCs and fumes, optionally integrated with eco-friendly filtration.
Fresh Air Supply: Maintains airflow to prevent excessive solvent concentration.
III. Technical Features
Looking for an industrial automated high-temperature paint spray booth with a thermal curing oven? Coattech delivers heavy-duty coating equipment for efficient, flawless finishes. Custom dimensions and heating systems available. Get a quote today!
| Parameters |
Specifications |
| Product Name |
Automated High Temperature Paint Spray Booth with Thermal Curing Oven |
| Brand |
Coattech |
| Application |
Industrial metal parts, automotive, heavy machinery coating & baking |
| External Dimensions (L×W×H) |
Customizable (e.g., 8000 × 5500 × 3500 mm) |
| Internal Dimensions (L×W×H) |
Customizable (e.g., 7900 × 3900 × 2800 mm) |
| Max Curing Temperature |
200°C - 250°C (Adjustable based on requirements) |
| Heating System |
Natural Gas Burner / Diesel Burner / Electric Heating (Optional) |
| Air Flow System |
Dual Centrifugal Fans (High-efficiency intake & exhaust) |
| Control System |
Advanced PLC Touch Screen Control Panel |
| Wall Panel Insulation |
100mm / 150mm High-Density Rockwool Panels (Fireproof) |
| Lighting System |
Explosion-proof LED tubes (Top & Side illumination) |
| Filtration System |
Multi-layer fiberglass filter + High-efficiency ceiling filter |
| Warranty |
12 Months |
