Professional Floor Conveyor Coating Line Superior Finish Quality Seamless Operation

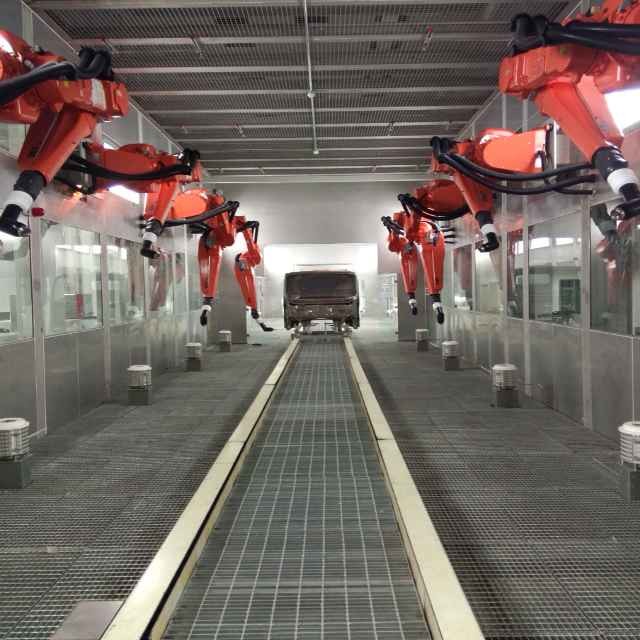

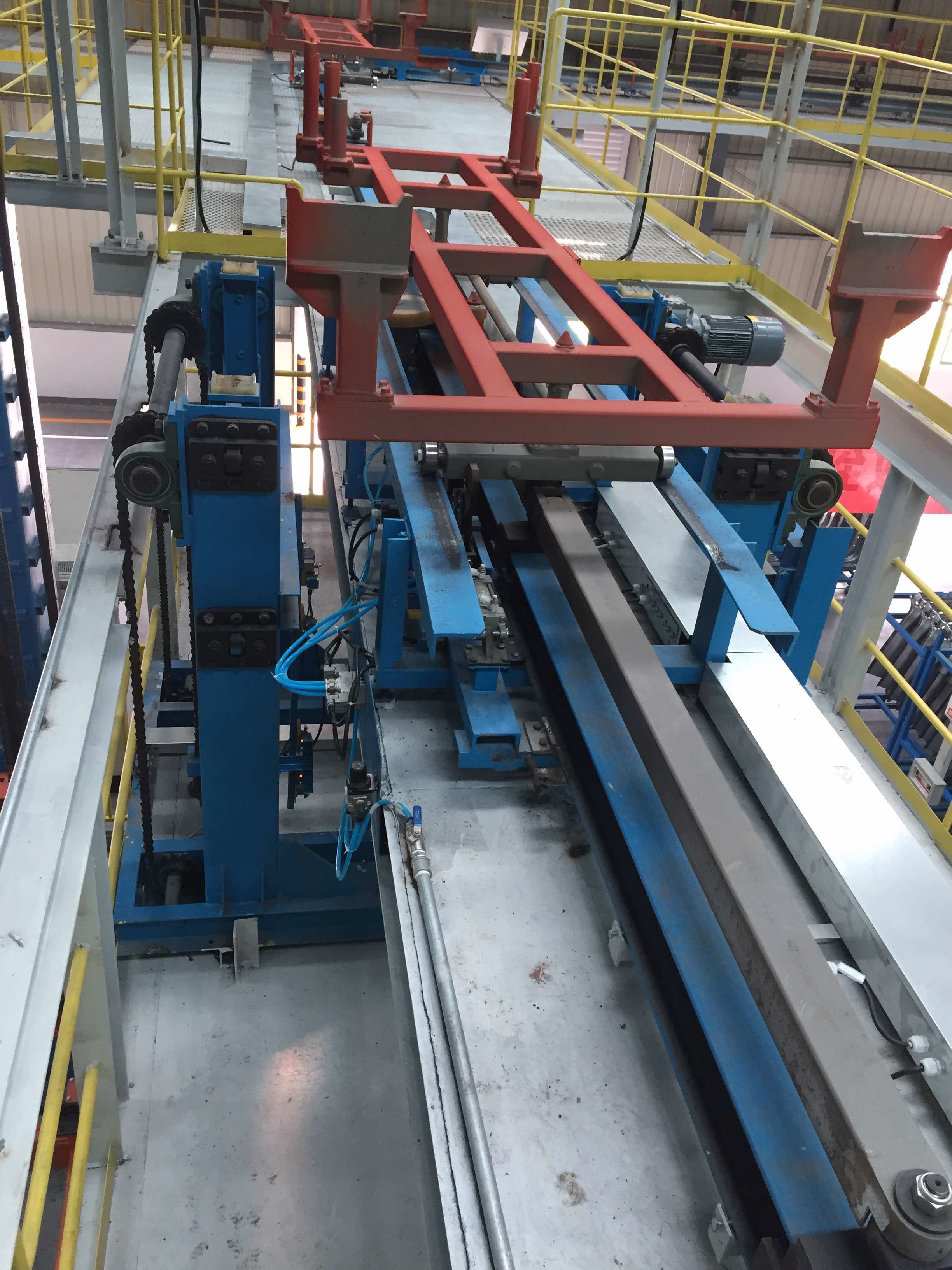

Unpowered translation vehicle + ground conveyor chain.

Purpose:

Used for surface treatment of large, heavy workpieces with low productivity

requirements;

Process flow:

pieces on-->sanding-->cleaning-->drying-->spray painting-->baking paint-->pieces off;

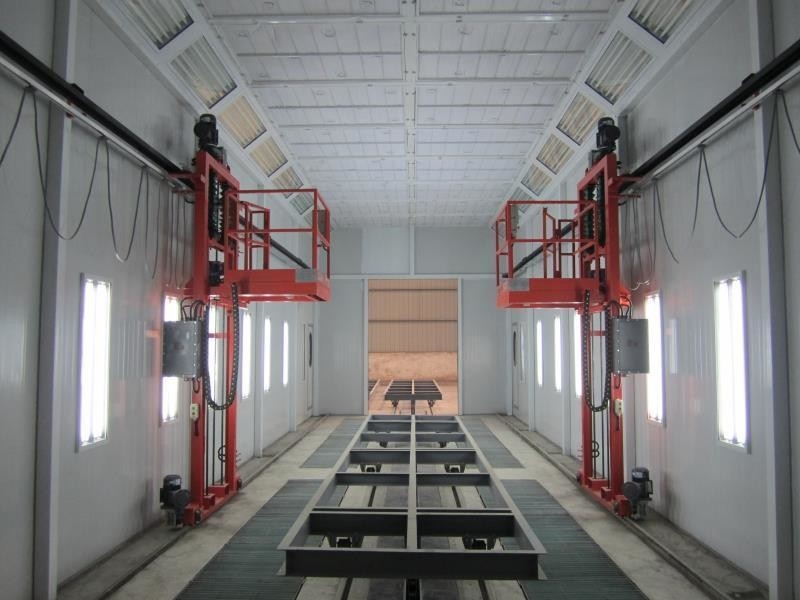

The room structure includes: polishing room, cleaning room, drying room, spray painting room, and baking room (customized according to the product);

Translation car: It is welded and formed by I-beam and channel steel, and the surface is paved with 8mm thick steel plate;

Ground conveyor chain equipment description:

It is mainly composed of driving device, traction chain, tensioning device and conveyor

track.

⑴Driving device

The power of the driving device is transmitted to the driving spindle through the motor-reducer and the transmission chain. Finally, the driving sprocket drives the conveyor

chain, making the conveyor chain move forward along the conveyor chain track; the use of a cycloidal pinwheel reducer can greatly improve the transmission efficiency. , and

the movement is reliable.

⑵ Traction chain

The chain consists of pin shaft, chain plate, pusher chain plate and roller sleeve. The

pusher spacing can be assembled into various shapes according to needs.

just to meet the needs of work rhythm.

This series of conveyor chains all use high-quality manganese steel as chain plates, and all require specified tensile tests before leaving the factory.

⑶Tensioning device

This device ensures that the entire conveyor chain always maintains a relatively stable

tension during operation. At the same time, it can absorb or compensate for the

installation error of the conveyor chain, the expansion and contraction caused by thermal expansion, contraction and force deformation during operation. Ensure that the conveyor chain has an initial tension at the winding-out point of the drive device and eliminate devices that generate negative tension in the entire line.

This series of tensioning devices mainly uses screw rods for tensioning. Its structure is

relatively simple and compact, and its tensioning force is relatively stable;

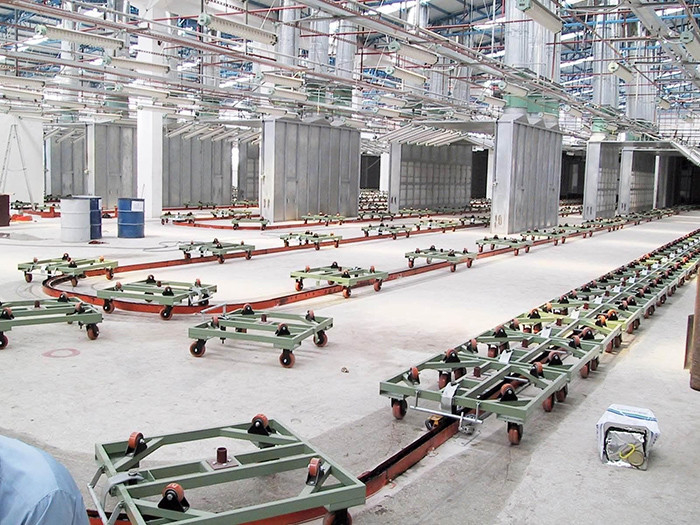

⑷Conveyor track

The trolley track adopts 30kg/m light rail (the foundation is pre-embedded in

construction), the running wheels use light rail steel wheels, and the trolley brackets are all welded from section steel, with a solid structure;

The entire line adopts PLC control, stepless speed adjustment, and is equipped with

multiple induction probes and control buttons.
