Superior Capacity Ventilation With High-Performance Automotive Spray Booth for Precision Painting

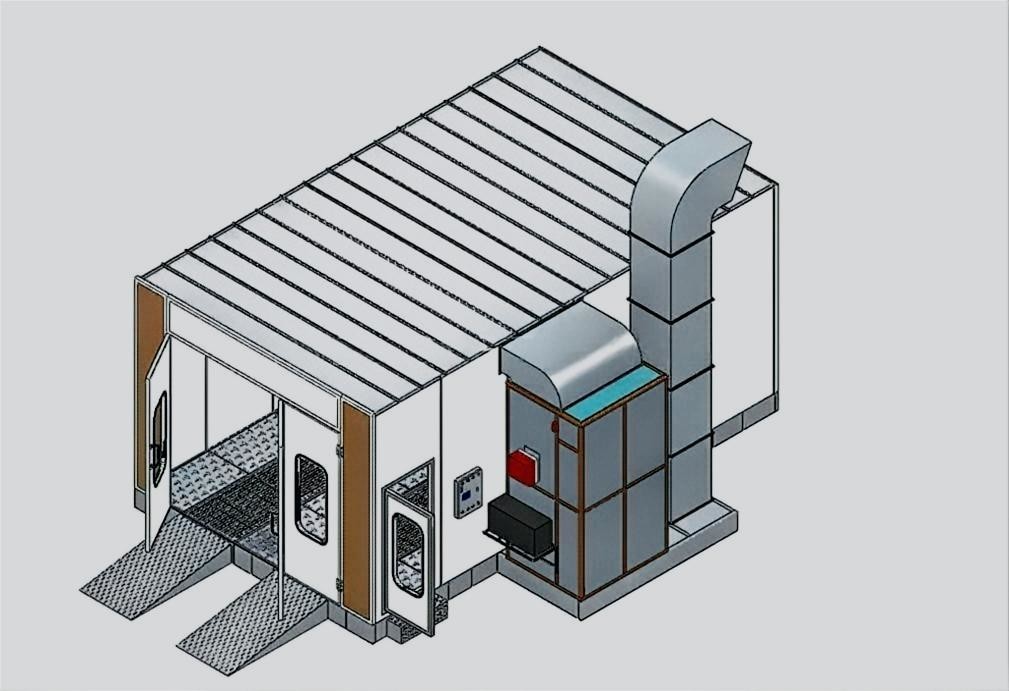

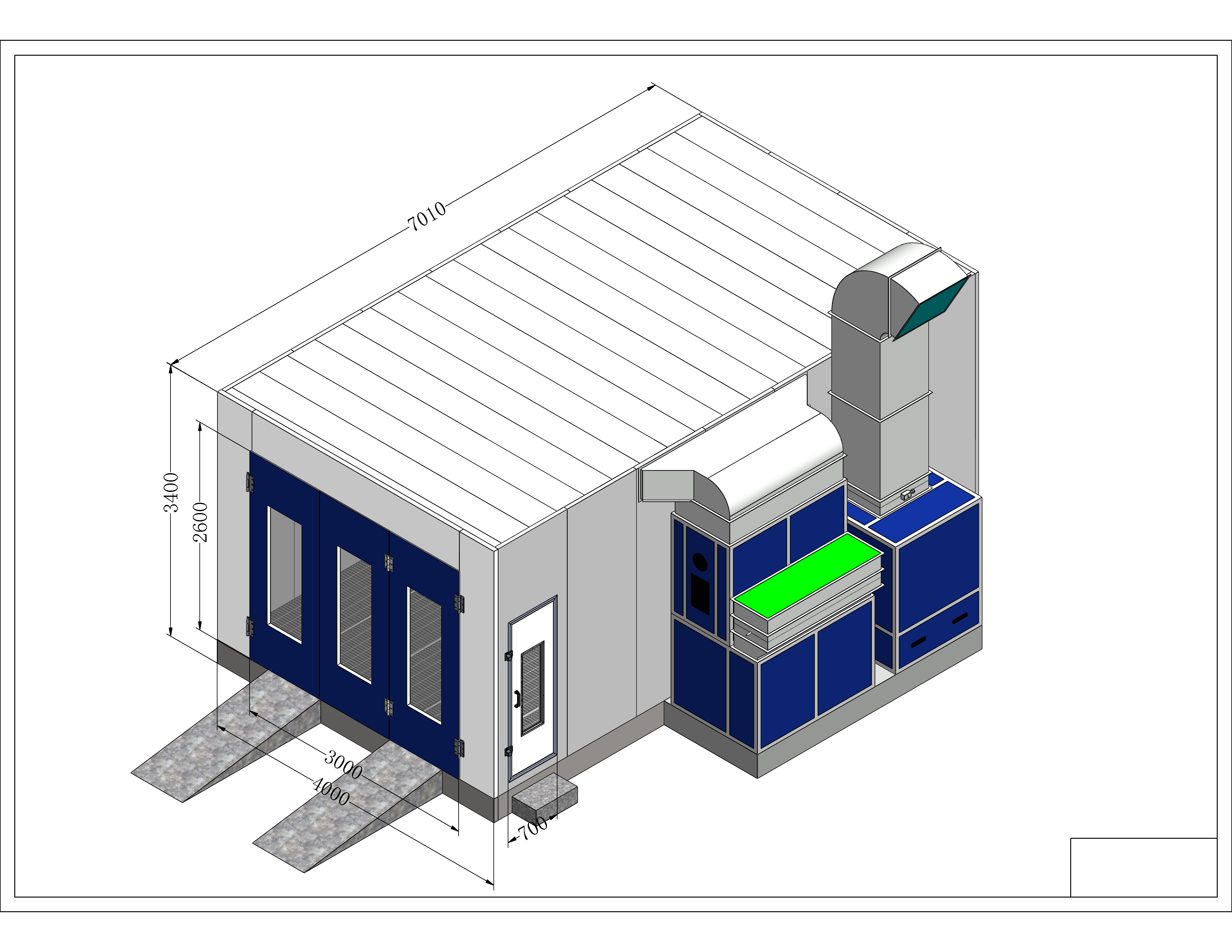

inside

dimension

Outside

dimension

1.2 Galvanized sheet bending hoarding, square tube supporting

horizontal and longitudinal beams, 30x4 flat iron + ⌀8 twisted steel floor grille, overall load-bearing 2.4T; (load-bearing can be adjusted

according to needs) (side wall exhaust and trench are optional exhaust)

EPS wall panel, effective width 1150mm, total thickness 50mm ,

color steel plate thickness: 0.426mm, white, steel edges sealed on both sides; ( Rock wool, PU optional )

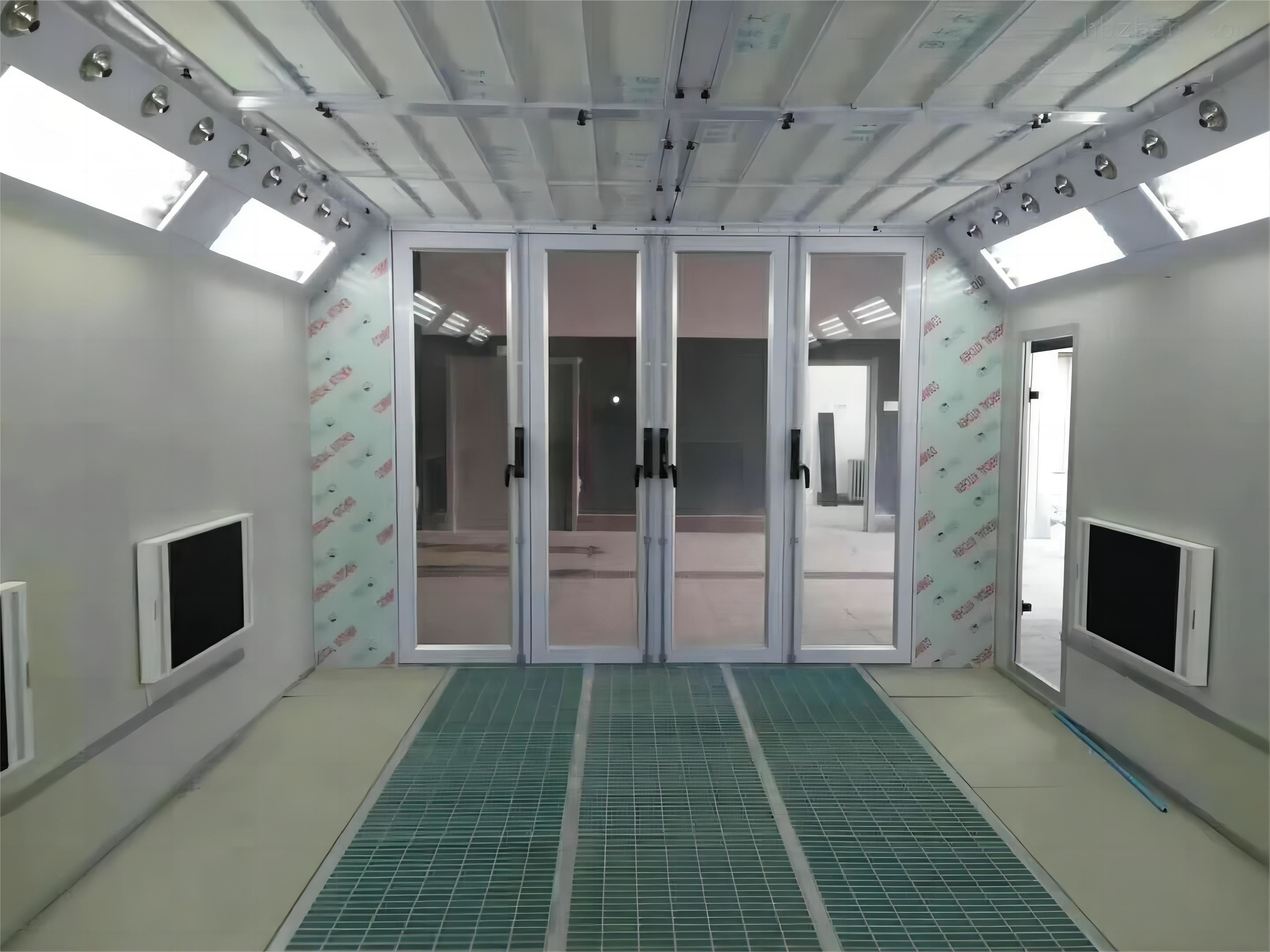

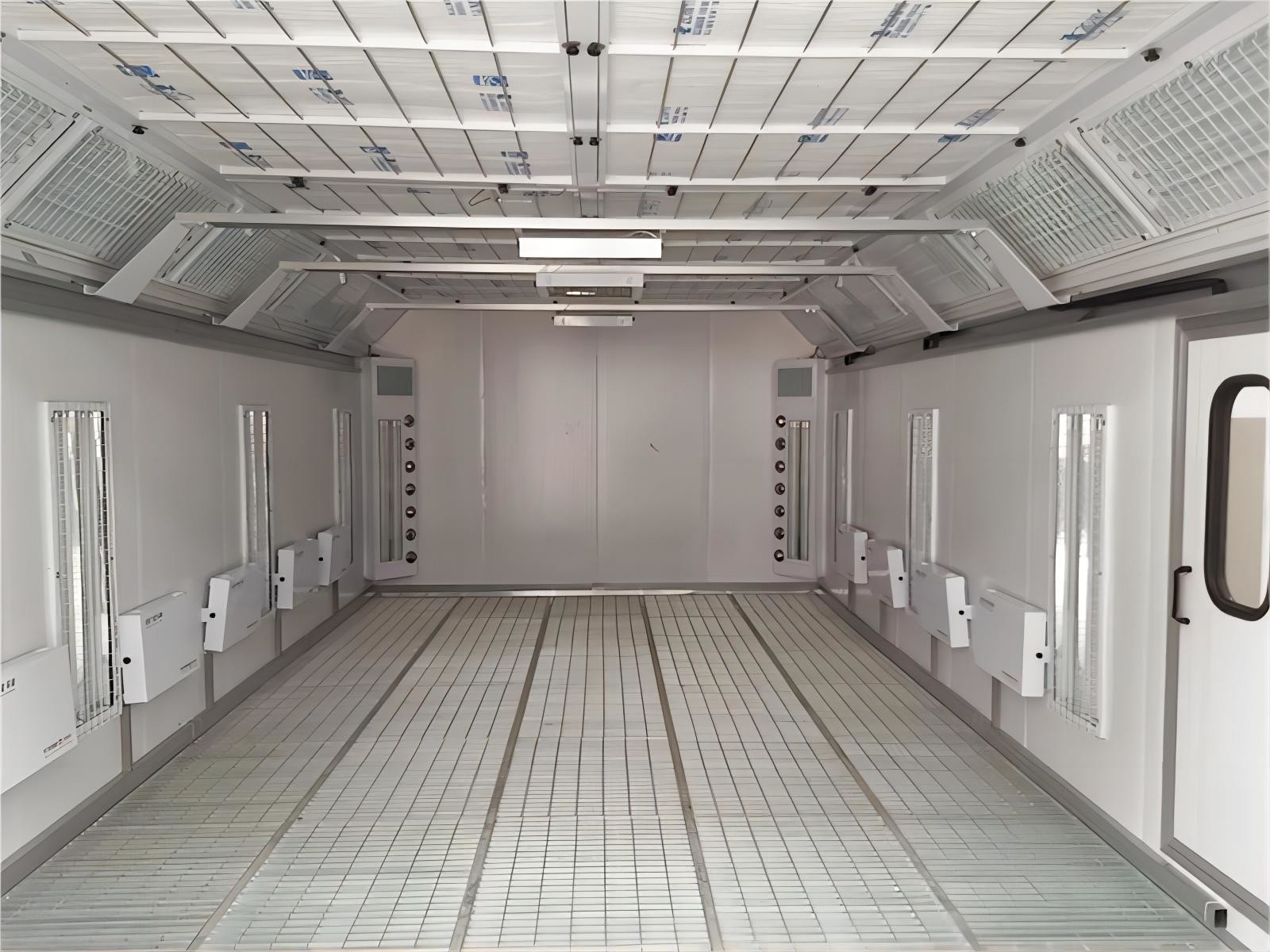

Top lighting: 8 groups×4 pcs = 32 pcs 18W lamps

Waist lighting: 8sets ×2 pcs = 16 18W lamps, LED lamps,

flameproof light box

Illumination ≥1000Lux

Air unit

Position

Make-up

air unit

Exhaust-air

Unit

1 external rotor double-inlet centrifugal fan, single motor power:

7.5KW; total flow: 21000m3 /h, no-load wind speed: 0.25m/s; exhaust manual adjustment damper .

Equipped with a Riello RG5S burner with a maximum heat output of 26000KW; equipped with a 304 stainless steel heat exchange furnace; heating spray paint: 20°C (from 0°C to 20°C in spray painting state); baking paint: 10-15 minutes ( From 20° to 60ºС) paint

condition. (Natural gas heating, electric heating tube heating,

and infrared baking lamp heating can be selected)

1. Air supply primary filter cotton : EN 779 level: G3

2 sub-high efficiency filtration: full depth three-dimensional viscose; EN799 level: F5,

3 Glass fiber paint-resisting cotton blanket filtration: EN 779 Level: G3;

4. Activated carbon particle filtration: adsorbs benzene and xylene in exhaust gas

Electronic

control system

Pipeline system

The air supply and exhaust are each equipped with 3 sections of 800 x 800 x 1000mm straight air ducts, 1 section of 800 x 800mm

90° elbow, and 1 section of 8 00 x 8 00mm 45° elbow;
