Place of Origin: | China |
---|---|
Brand Name: | CoatTech |
Certification: | CE |
Model Number: | SPB-3 |
Minimum Order Quantity: | 1 |
Price: | USD7200-USD10000/SET |
Packaging Details: | With regular Film and Carton |
Delivery Time: | 15 DAYS After Deposit |
Payment Terms: | T/T, MoneyGram, Western Union, D/A |
Supply Ability: | 50SET/MONTH |
NAME: | Spray Booth For US | Power Supply: | 380V/50HZ/3Ph Or Other Option |
---|---|---|---|
Using Energy: | Gas Heating | Main Door: | Fold Style |
Motor: | Chinese Brand Or Import Brand | Control Sytem: | Switch Style Or PLC Touch Screen Control |
Wall: | Metal Sheld,EPS,Rock Wool Of PU For Option | Color: | White Or Other Option |
Application: | Car Painting | Energy Sources: | GAS |
Coating: | 10-50um | Dimention: | 7000*4000*3300mm (L × W × H) |
Highlight: | car spray booth,car auto paint booth,baking spray booth |

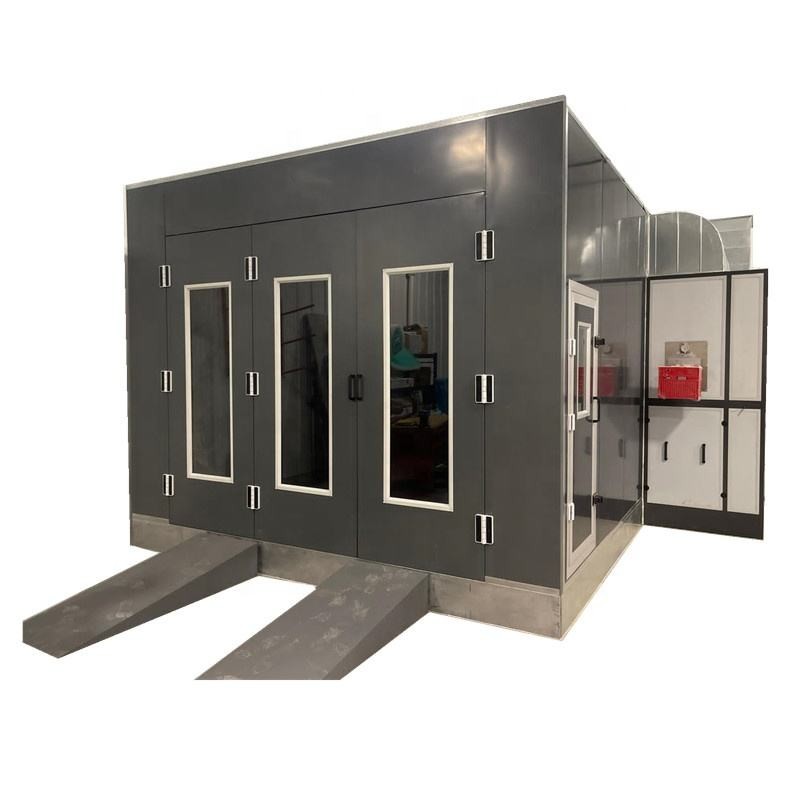

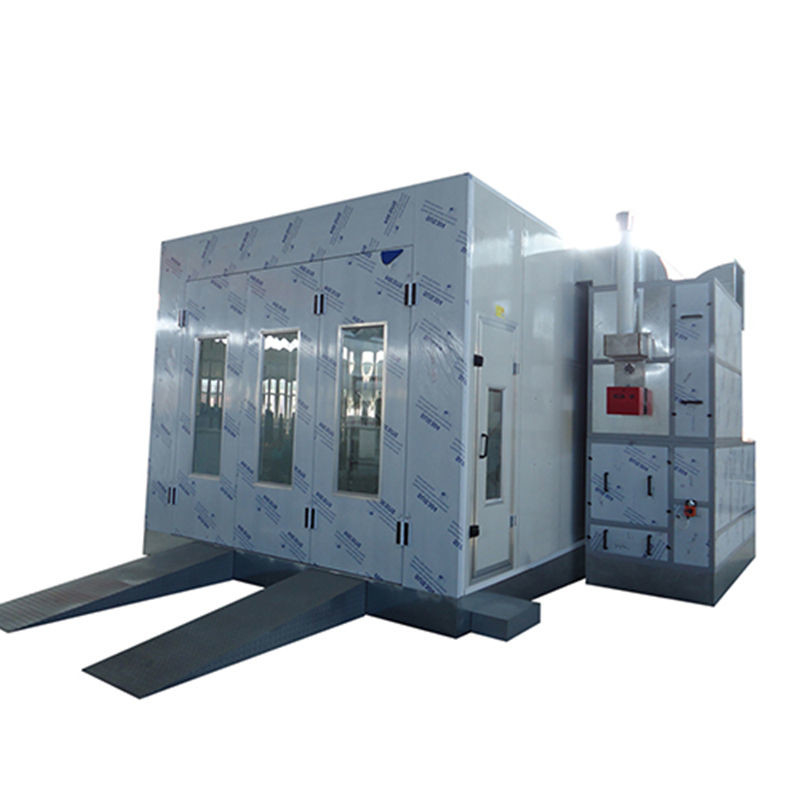

High Quality Gas Heating Car Spray Paint Baking Booth For US Customers
Advanced Filtration Technology
Equipped with cutting-edge filtration systems, our spray booth effectively removes airborne particles.
The multi-stage filtration captures large debris to microscopic contaminants, guaranteeing a smooth,
impeccable finish every time,to meet the USA environment rule.
inside dimension |
7000*4000*3300mm |
Outside dimension |
6900*3900*2650mm |
Basement |
1.2 Galvanized sheet bending hoarding, square tube supporting horizontal and longitudinal beams, 30x4 flat iron + ⌀8 twisted steel floor grille, overall load-bearing 2.4T; (load-bearing can be adjusted according to needs) (side wall exhaust and trench are optional exhaust) |
front door | Door size: 3000 × 2600mm (W×H), sheet metal bending door, 3 door leaves, square tempered glass window, filling: EPS. (The filling can be adjusted according to needs) |
working door | 1 set, working door size: 800×2000mm (W×H), equipped with pressure lock and glass observation window |
wall panel |
EPS wall panel, effective width 1150mm, total thickness 50mm , color steel plate thickness: 0.426mm, white, steel edges sealed on both sides; ( Rock wool, PU optional ) |
roof | 0.6mm galvanized sheet bending ( EPS, rock wool, PU optional ) |
illumination |
Top lighting: 8 groups×4 pcs = 32 pcs 18W lamps Waist lighting: 8sets ×2 pcs = 16 18W lamps, LED lamps, flameproof light box Illumination ≥1000Lux |
Air unit Position |
Air inlet from the side , exhaust from the rear, square tube welding + aluminum tee frame, white paint, high-strength machine-made 20mm thick rock wool board mask |
Make-up air unit |
2*4kw |
Exhaust-air Unit |
1*7.5kw |
Heating system |
GAS heating |
filtering system |
1. Air supply primary filter cotton : EN 779 level: G3 2 sub-high efficiency filtration: full depth three-dimensional viscose; EN799 level: F5, 3 Glass fiber paint-resisting cotton blanket filtration: EN 779 Level: G3; 4. Activated carbon particle filtration: adsorbs benzene and xylene in exhaust gas |
Electronic control system |
Spray painting, heating spray painting, baking paint, drying time setting, lighting switch, fault indicator light, temperature controller, power switch, emergency stop switch, timer, temperature limiter , ammeter , voltmeter , pressure gauge, pressure alarm |
Pipeline system
|
The air supply and exhaust are each equipped with 3 sections of 800 x 800 x 1000mm straight air ducts, 1 section of 800 x 800mm 90° elbow, and 1 section of 8 00 x 8 00mm 45° elbow; |
total power | 17kW |
