CE Approved Car Paint Equipment Spray Booth For Automotive Repair Service Centre

MOQ:	1
Price:	USD7200-USD10000/SET
Standard Packaging:	With regular Film and Carton
Delivery Period:	15 DAYS After Deposit
Payment Method:	T/T, MoneyGram, Western Union, D/A
Supply Capacity:	50SET/MONTH

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

CoatTech

Certification

Model Number

SPB-5

NAME:

Paint Booth

Power Supply:

380V/50HZ/3Ph Or Other Option

Using Energy:

Gas /Diesel/ IR

Main Door:

Fold Style

Motor:

Chinese Brand Or Import Brand

Control Sytem:

Switch Style Or PLC Touch Screen Control

Wall:

Metal Sheld,EPS,Rock Wool Of PU For Option

Color:

White Or Other Option

Application:

Car Painting

Energy Sources:

Coating:

10-50um

Dimention:

7000*5200*3300mm

Highlight:

ce spray booth

ce auto paint booth

car spray booth

Product Description

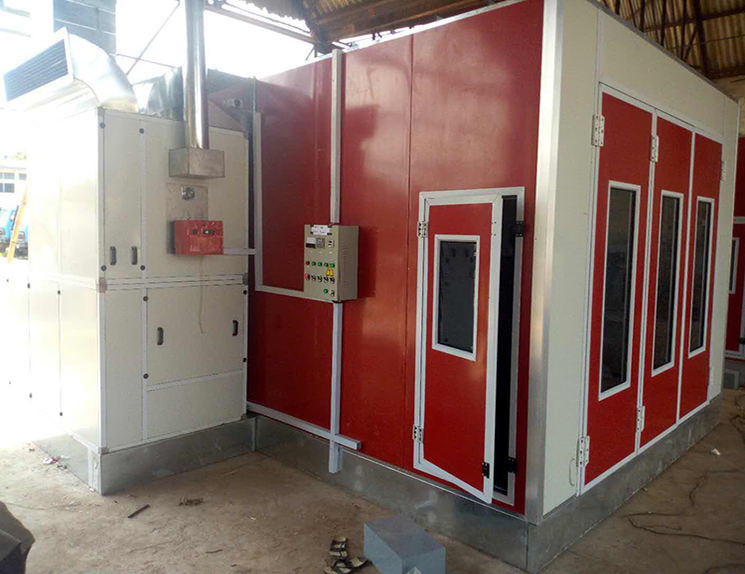

CE Approved Car Paint Equipment Spray Booth For Automotive Repair Service CentreBuilt with high-grade materials, our water-based paint booth offers exceptional durability and longevity.
Its spacious interior facilitates easy maneuverability, accommodating vehicles and parts of various sizes.
Moreover, the booth is highly customizable, allowing for additional lighting, specialized filtration, and custom
dimensions to meet the unique needs of your workshop.

Category	Parameter
Dimensions	Length (mm)
Booth Outside	700052003300mm
Booth Inside	690039002650mm
Entrance Door	3 folds, size: 3,000 × 2,000 mm (W × H), with tempered glass embedded into square frame made of color steel. Equipped with handle & lock
Personnel Door	Size: 800 × 2,000 mm (W × H), with tempered glass embedded into square frame made of color steel. Equipped with handle & anti-explosion lock
Plenum Chamber	700 mm high, all spare parts made of galvanized bended steel and treated with white powder for long life.
Walls Panel	50 mm thick, 1,000 mm wide, EPS insulation, covered by 0.426 mm thick color steel on both sides. Tongue and groove interlock structure.
Basement System
Grid Plates	2 rows, made of 30x4 mm flat bar and 10 mm twisted steel, galvanized surface treatment, with floor filter supporting frame. Loading weight: 600 kg/wheel
Diamond Plates	3 rows, powder coated or galvanized.
Ramps	2 ramps, each size: 800 x 2,000 mm (W x L)

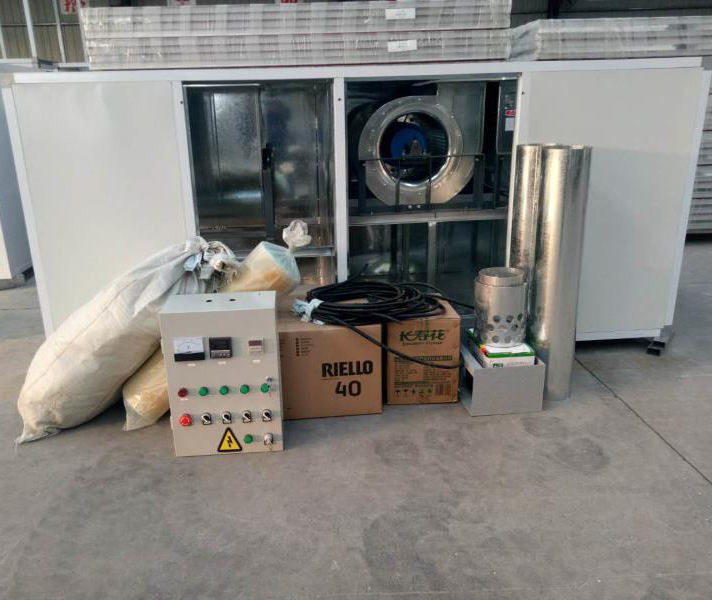

Heating System
Diesel Burner	1 unit (Italy RIELLO, G20), heating capacity: 200,000 Kcal/H
Heat Exchanger	1 unit, 200 kW, made of 1.5 mm stainless steel SUS304, round type multi-cycle, radiator pipe, with anti-explosion hole, 1 m stainless steel chimney, 3 m long bended galvanized steel chimney, 1 pc rain shield
Cabinet	1 unit, rock-wool insulation. Frame made of 1.5 mm thick bended galvanized steel, aluminum alloy three-way connector
Filter System
Primary Filter	1 set, filtering rate > 83%, G3 Grade (EN779), type: C16-300; Fiber glass filter, G3 Grade (EU-3)
Air-Intake Filter	1 set, filtering rate > 97%. Supporting net made of C shape steel with painted surface treatment, sub-high efficiency filter, F5 Grade (EU-5)
Air-Exhaust Filter	1 set, paint-stop filter, filtering rate > 70%. Fiber glass filter, G2 Grade (EU-3)
Air System
Air-Intake Fans	2 units, Centrifugal Fans with 3 kW motor each
Air-Exhaust Fan	1 unit, Centrifugal Fan with 5.5 kW motor
Electric Damper	Belimo NMU230 20NM
Fan Cabinet	1 unit
Air Ducts	3 pcs
Air Damper	1 unit (electric)

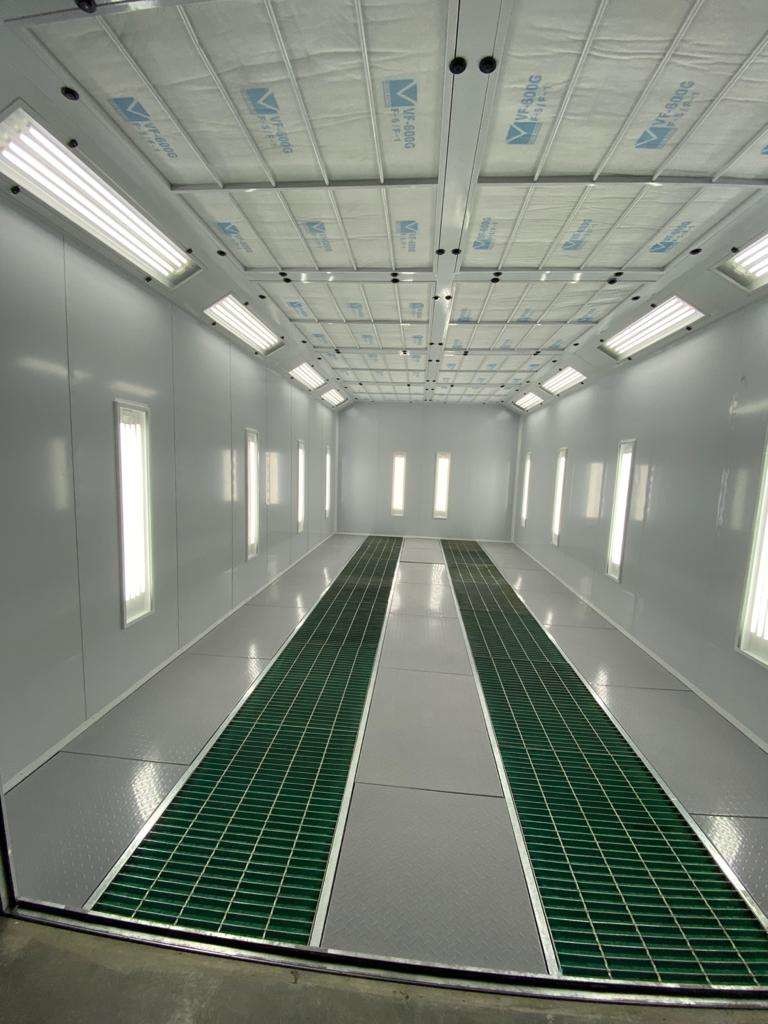

Illumination
Ceiling Lights	40 pcs, 16W LED lamp, with light fixtures, anti-explosion design
Side Lights	32 pcs, 16W LED lamp, with light fixtures, anti-explosion design
Illumination Level	≥800 LUX
Control Panel
Control Box	1 unit, button type control box with main switch, normal temperature spraying, constant temperature spraying, baking switch, lighting switch, temperature time setting, emergency stop, failure alarm, time accumulator
