Integrated Automated Powder Coating Lines | Modular Finishing Systems

MOQ: 1
Price: USD2000-USD10000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 500SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
OCCL-6
NAME:
Coating Line 6
Power Supply::
220V/50HZ/1Ph Or Other Option
Using Energy::
Electric Or Other Option
Motor::
Chinese Brand Or Import Brand
Control Sytem::
Switch Style Or PLC Touch Screen Control
Color::
White Or Other Option
Application::
Metallic Products
Coating:
10-50um
Dimention::
As Require
Highlight:

precise powder coating conveyor

,

precise powder coating paint lines systems

,

systems powder coating conveyor

Product Description

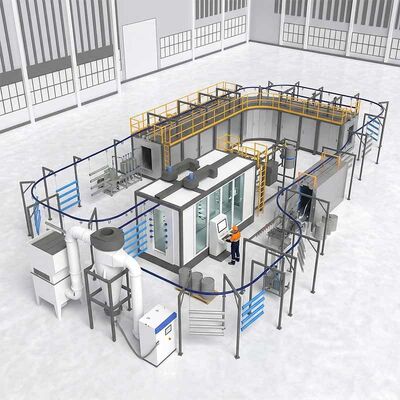

Integrated Automated Powder Coating Lines | Modular Finishing Systems


1.Streamline Your Finishing Process with an Integrated Automated Powder Coating Line


Our comprehensive automated powder coating line systems provide a turnkey solution for high-throughput, consistent finishing. This advanced, closed-loop system is meticulously engineered to handle pre-treatment, precise powder application, and efficient curing in a seamless, automated workflow. Designed for a wide range of industrial applications, this modular line minimizes manual labor, ensures superior finish quality, and maximizes operational uptime.


2.Key Advantages


1.Closed-Loop Automation: The entire finishing process, from loading to unloading, is managed by a continuous overhead conveyor, minimizing handling and optimizing production flow.

2.High-Efficiency Powder Recovery: Our advanced multi-cyclone recovery system, coupled with secondary cartridge filtration, ensures up to 99% powder utilization, significantly reducing material waste and operational costs.

3.Precise Application & Control: The integrated powder coating booth is equipped with multiple automatic guns and manual touch-up stations, all managed by a central HMI for consistent coating thickness and finish quality.

4.Modular & Scalable Design: The system is composed of modular components, including the pre-treatment tunnels, powder booths, and curing ovens, allowing for custom configurations to meet your specific production needs and floor space.

5.Reliable and Energy-Efficient Curing: The high-capacity curing oven features advanced air distribution for uniform heating, ensuring thorough powder polymerization and a durable, high-quality finish, while optimizing energy consumption.


3.Technical Specifications

Parameter

Specification

System Type

Fully Automated, Continuous Overhead Conveyor Line

Conveyor Type

Heavy-Duty Overhead Chain Conveyor System

Product Capacity (Max)

200 kg per hook (Customizable)

Conveyor Speed (Variable)

0.5 - 5.0 m/min (Adjustable)

Pre-treatment Stages

5-Stage Tunnel (eg., Degrease, Rinse, Phosphate, Rinse, DI Rinse)

Powder Booth Material

Powder-Coated Steel / Stainless Steel / PP (Optional)

Powder Application

Integrated Automatic Gun System with Manual Station

Powder Recovery System

High-Efficiency Multi-Cyclone + Cartridge After-Filter

Curing Oven Type

Gas-Fired / Electric-Heated Convection Oven

Oven Temperature (Max)

250 °C (Adjustable)

Oven Dimensions (Custom)

e.g., 20m (L) x 3m (W) x 4m (H)

Control System

Centralized PLC with HMI Touchscreen

Compressed Air Requirement

6-8 Bar, Dry, Oil-Free

Power Supply

380V / 50Hz / 3P (Customizable)

Safety Features

Interlock Systems, Emergency Stops, Fire Suppression (Optional)

Certifications

CE Compliant

Integrated Automated Powder Coating Lines | Modular Finishing Systems 0

Integrated Automated Powder Coating Lines | Modular Finishing Systems 1

Integrated Automated Powder Coating Lines | Modular Finishing Systems 2

Integrated Automated Powder Coating Lines | Modular Finishing Systems 3

Integrated Automated Powder Coating Lines | Modular Finishing Systems 4

Integrated Automated Powder Coating Lines | Modular Finishing Systems 5Integrated Automated Powder Coating Lines | Modular Finishing Systems 6Integrated Automated Powder Coating Lines | Modular Finishing Systems 7

Want to revolutionize your finishing process and boost your bottom line? Contact our engineering team today to discuss

how a custom-designed automated powder coating line can transform your production efficiency and finish quality.

 Let's build your perfect finishing solution together.
