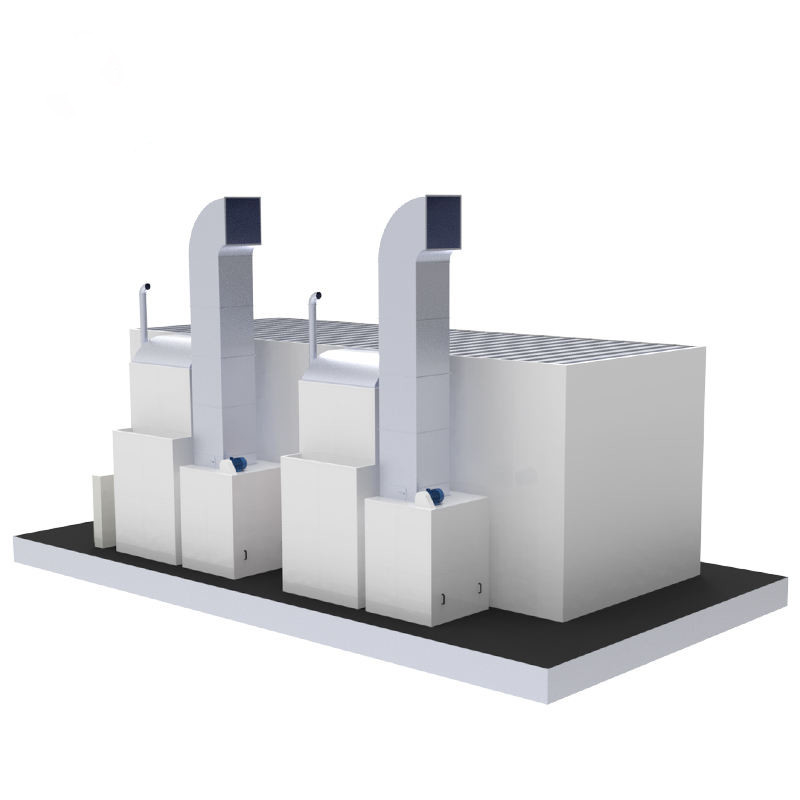

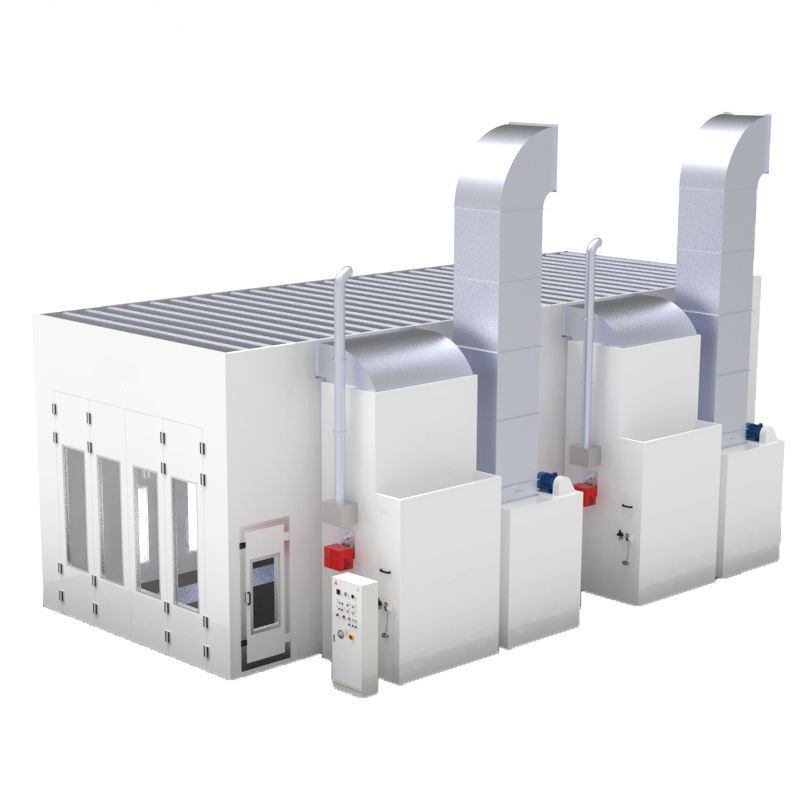

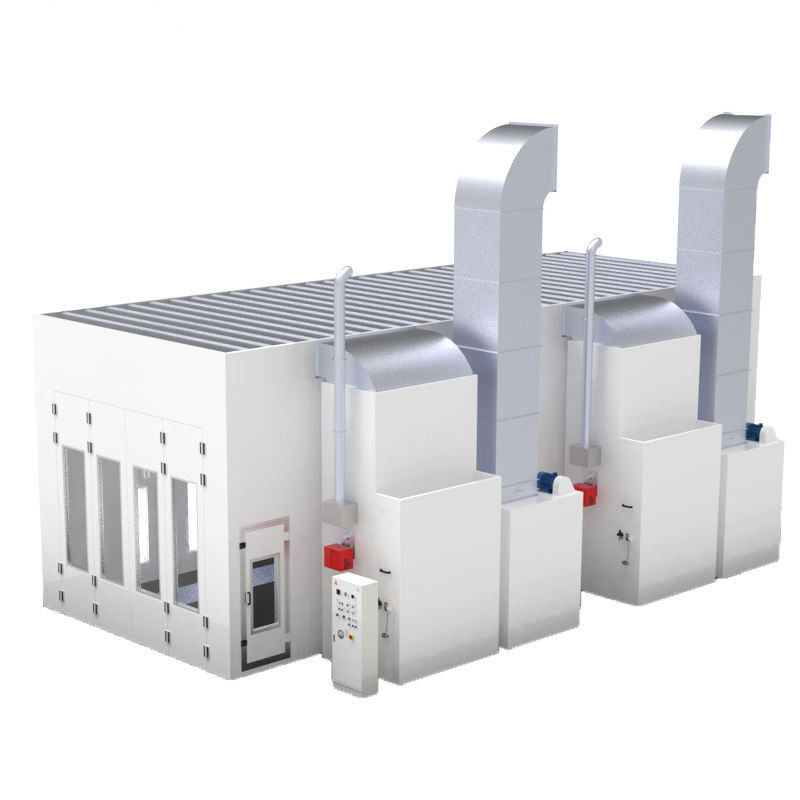

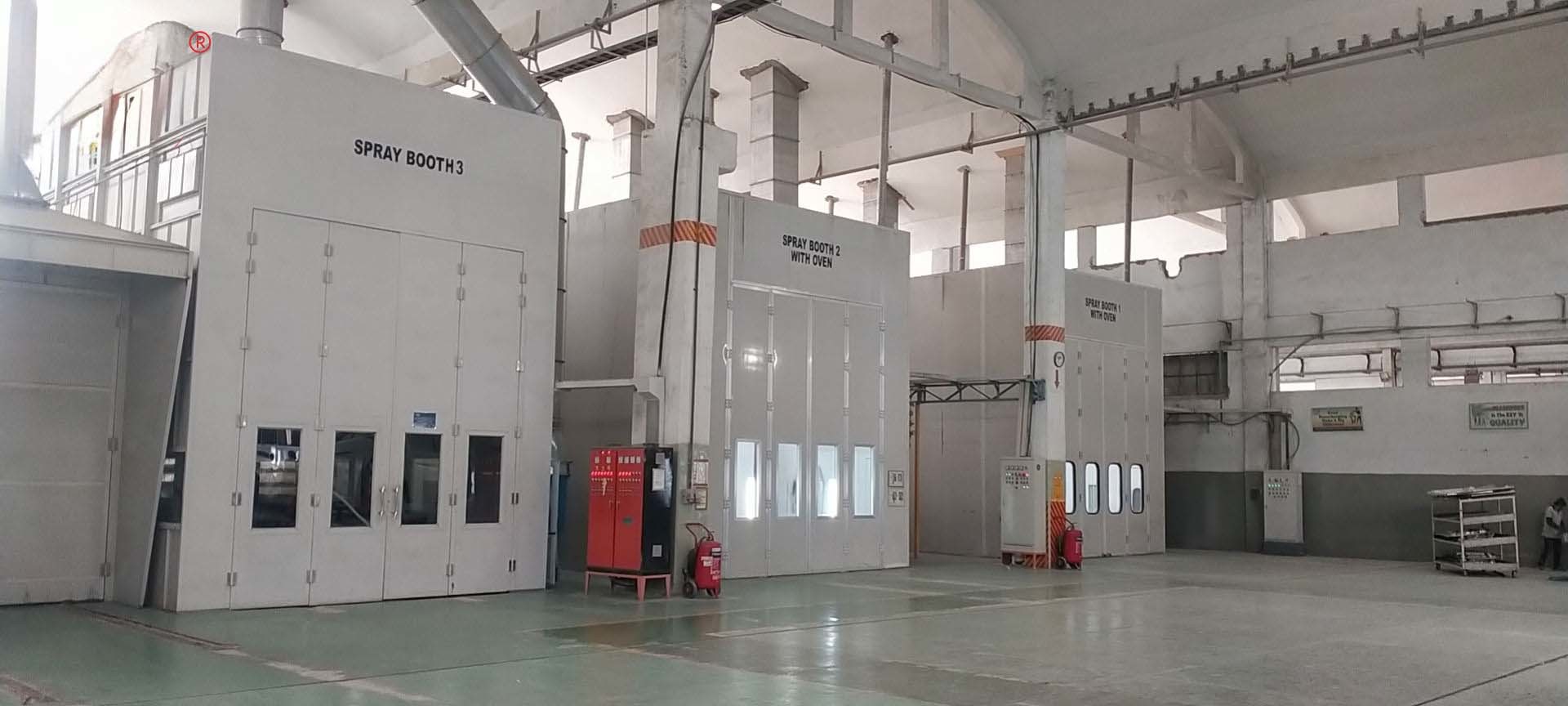

Industrial Spray Booth with Front and Working Doors for Precise Painting Spray Booth
The spray booth's wall and roof panels are made from EPS with a color steel plate thickness of 0.426mm,
providing effective insulation and structural strength. The wall panels are 70mm thick, while the roof panels are
50mm thick. Both types of panels are sealed with steel edges for added durability. Optional materials such as
Rock wool and PU are available for enhanced thermal insulation and fire resistance.
| Component Category |
Configuration & Technical Parameters |
| Interior Work Space |
15,000 mm (L) × 5,000 mm (W) × 5,000 mm (H) |
| External Footprint |
15,130 mm (L) × 6,890 mm (W) × 5,600 mm (H) |

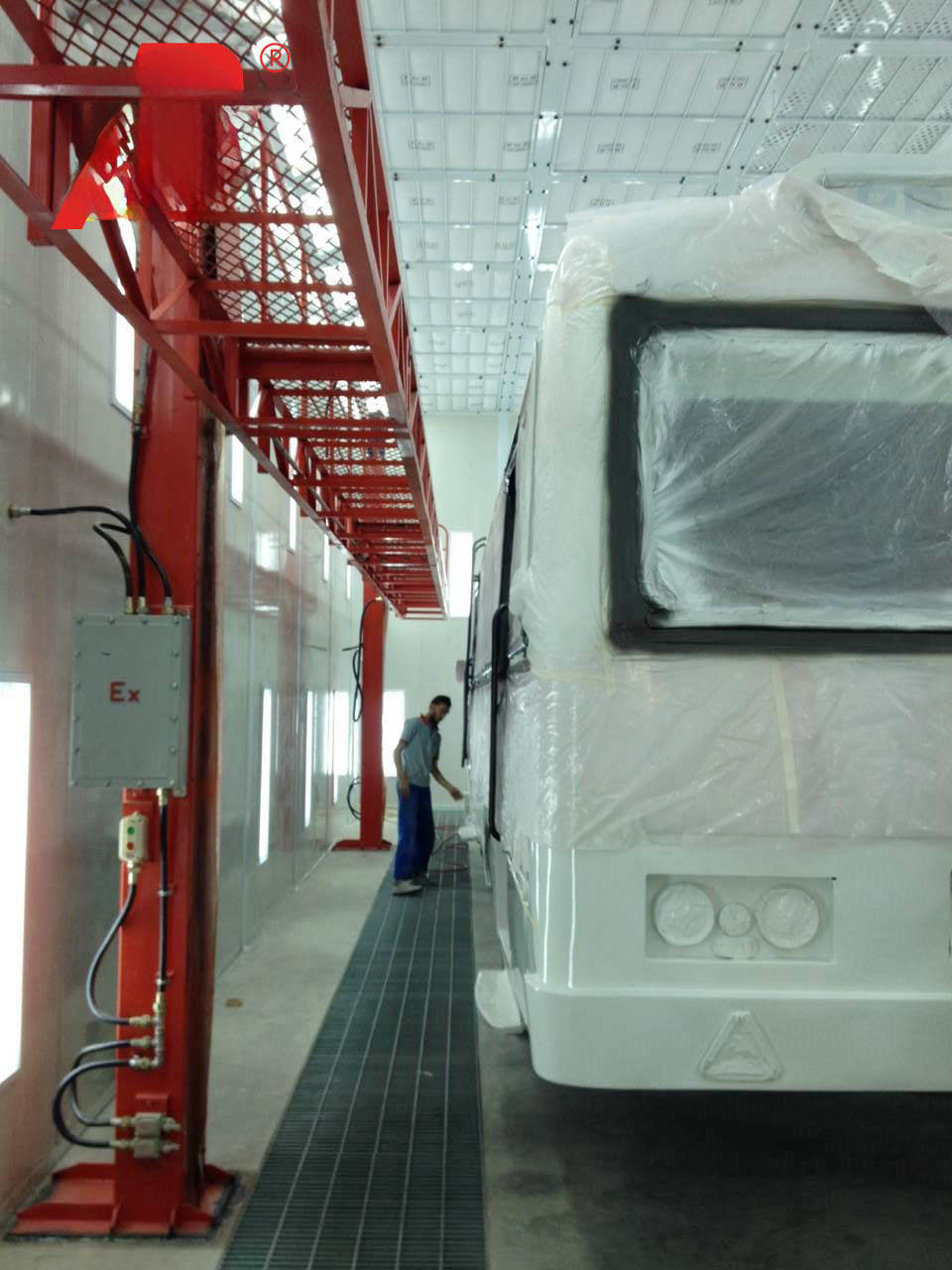

| Foundation & Flooring |
Layout: Dual-row grille configuration.
Materials: 30x4mm flat bar combined with ⌀8mm twisted steel.
Quantity: 24 individual grille sections.
Extraction Path: Ground-level (Sidewall draft optional).
|
| Primary Entrance |
Aperture: 4,000 mm (W) × 4,600 mm (H).
Design: 4-leaf folding sheet metal structure.
Glazing: Square tempered safety glass.
Core: EPS Insulation.
Options: Electric rolling shutter available.
|
| Service Access |
Quantity: 2 Units.
Size: 800 mm × 2,000 mm.
Safety: Fitted with pressure-relief latches and viewports.
|
| Cabin Cladding (Walls) |
Type: Composite EPS Sandwich Board.
Specs: 70mm thick (Effective width 1150mm).
Finish: 0.426mm White Steel Skin.
Edging: Dual-sealed steel strips.
Alt Options: Rock Wool or Polyurethane (PU).
|
| Ceiling Structure |
Type: EPS Composite Board.
Specs: 50mm thick (Effective width 1150mm).
Finish: 0.426mm White Steel Skin.
|
| Lighting System |
Ceiling Array: 20 sets (4 tubes/set) = 80 units (18W).
Side Array: 22 sets (4 tubes/set) = 88 units (18W).
Type: LED, Explosion-proof housing.
Intensity: ≥1000 Lux.
|
| Intake Ventilation |
Groups: 2 Units.
Fan Spec: 4x Double-inlet Centrifugal (External Rotor).
Motor: 7.5 KW per fan.
Capacity: 40,000 m³/h.
Velocity: 0.25 m/s (No-load).
Dampers: Pneumatic adjustment.
|
| Exhaust Ventilation |
Groups: 2 Units.
Fan Spec: 2x Double-inlet Centrifugal (Belt/Pulley Drive).
Motor: 11 KW per fan.
Capacity: 4,000 m³/h (Nominal per spec).
Dampers: Manual adjustment.
|
| Housing Construction |
Structure: Welded square tube + Aluminum Tee frame.
Finish: White coating.
Insulation: 20mm Machine-made Rock Wool mask.
|
| Thermal System |
Burner: 2x Riello RG5S (Diesel).
Heat Exchanger: SUS304 Stainless Steel.
Output: Max 26,000 kW (Thermal Rating).
Spraying Mode: +20°C rise (Ambient to Target).
Baking Mode: Target 60°C (10–15 min ramp-up time).
|
| Filtration Stages |
Stage 1 (Inlet): G3 Grade Primary Pocket Cotton (EN 779).
Stage 2 (Ceiling): F5 Full-depth Viscose Media (EN 779).
Stage 3 (Floor): Fiberglass Mist Arrestor (G3).
Stage 4 (Outlet): Activated Carbon (VOC/Benzene adsorption).
|
| Control Interface |
Functions: Mode Selector (Spray/Bake), Temp Controller, Cycle Timer.
Safety: Emergency Stop, Failure Indicator, Pressure Alarm, Temp Limiter.
Gauges: Voltmeter, Ammeter, Pressure Gauge.
|
| Ducting Kit |
Straights: 4 sections (1000mm³) per group.
Bends: 1x 90° Elbow, 1x 45° Elbow per group.
|
| Total Electrical Load |
56 KW |
The large-size automobile spray booth is designed to meet diverse needs with top-notch technical specifications
and adaptable features. The interior dimensions are 6900 × 3900 × 2650 mm (L × W × H),(COULD BE CUSTOMIZED)
while the exterior measures 7000 × 5350 × 3400 mm (L × W × H). (COULD BE CUSTOMIZED)The sturdy basement
features galvanized sheet bending hoarding, supported by square tubes and a floor grille, ensuring an overall load-bearing
capacity of 2.4T, adjustable as needed.
The main front door, 3000 × 2600mm (W×H), has three leaves with square tempered glass windows and EPS filling.
An additional working door, sized 800×2000mm (W×H), includes a pressure lock and observation window.
The booth’s EPS wall panels and galvanized sheet roof provide robust insulation, with optional materials available.
The lighting system delivers over 1000Lux with 32 top and 16 waist LED lamps. The air unit efficiently manages
intake and exhaust, aided by a Riello RG5S burner for optimal heating. The comprehensive filtration system ensures
a clean working environment, while the electronic control system offers precise operational control. Total power
requirement stands at 17kW.(COULD BE CUSTOMIZED)
