Square Tube Welding and Aluminum Frame for Air Unit Installation in Spray Booth

MOQ: 1
Price: USD5000-USD10000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 30SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
Bbooth-A7
NAME:
Heavy-Duty Industrial Spray
Power Supply::
380V/50HZ/3Ph Or Other Option
Using Energy::
Diesel,gas,steam,electric Or Other Option
Main Door::
Fold Style Or Electric Rolling Style
Motor::
Chinese Brand Or Import Brand
Control Sytem::
Switch Style Or PLC Touch Screen Control
Wall::
Metal Sheld,EPS,Rock Wool Of PU For Option
Color::
White Or Other Option
Application::
Bus/truck Or Other Metallic Products
Energy Sources::
Water, Electricity,gas
Coating:
10-25µm
Dimention::
As Require
Noise Level:
≤80dB
Size:
Big
Material:
Steel
Usage:
Automotive Painting, Furniture Painting, Industrial Painting
Color:
White
Filter System:
Ceiling Filter, Fiberglass Filter, Activated Carbon Filter
Door Type:
Roll-up Door/Custmomized
Product Type:
Spray Booth
Lighting:
LED
Heating System:
Riello Brand Burner
Air Flow:
25000m³/h
Control System:
PLC Control Panel
Power:
18.5KW/Custmomized
Voltage:
3*380V 1*220V
Highlight:

bus indoor paint booth

,

white indoor paint booth

,

bus big size spray booth

Product Description

Square Tube Welding and Aluminum Frame for Air Unit Installation in Spray Booth

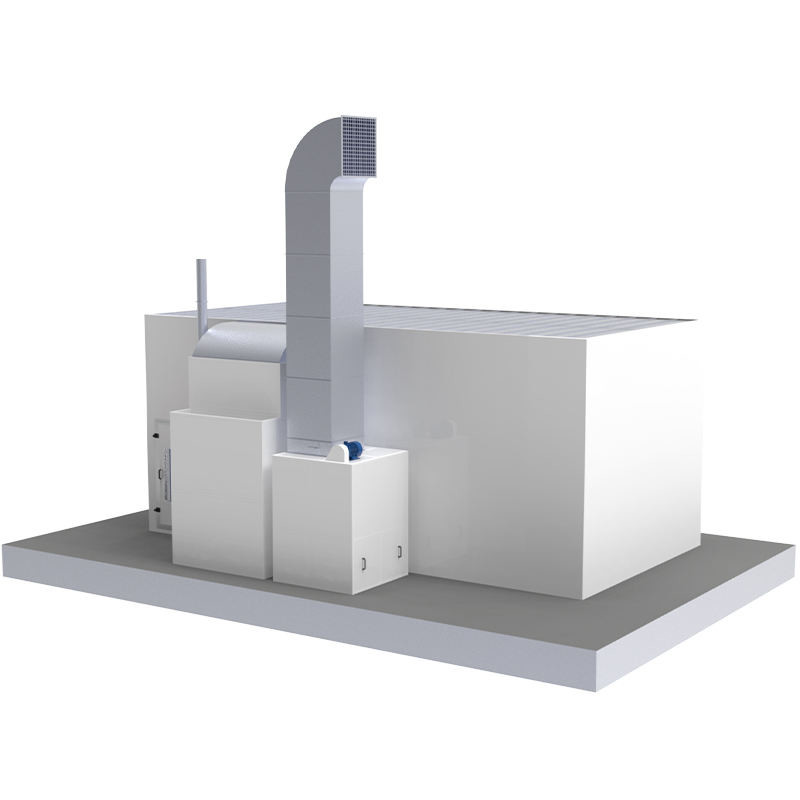

The spray booth's air unit installation includes air inlet from the side and exhaust from the rear, utilizing

square tube welding and an aluminum tee frame with white paint and high-strength machine-made 20mm

thick rock wool board masks. This design ensures efficient airflow management, maintaining clean air

within the booth and removing contaminants. The robust air unit installation supports the optimal operation

of the spray booth, enhancing the overall painting quality.



1. Cabin Structure & Dimensions

Specification Details
Internal Work Area 15,100 (L) × 6,000 (W) × 6,000 (H) mm
External Footprint 15,230 (L) × 6,990 (W) × 6,600 (H) mm
Wall Construction 70mm EPS Sandwich Panel (White); Double-skinned 0.426mm steel; Tongue & Groove assembly.
Roof Construction 50mm EPS Panel; Galvanized steel skin.
Flooring / Base Two-row configuration; Heavy-duty 30x4 flat bar + ⌀8mm twisted steel grating; Ground-level extraction.

2. Access & Entry Systems

Entry Type Configuration
Main Entrance 4-Fold Sheet Metal Door (4,000 W × 4,600 H mm); Tempered Glass Viewports; EPS Core. (Optional: Electric Roller Shutter)
Personnel Door 2 Units (800 W × 2,000 H mm); Fitted with Safety Pressure Locks & Observation Glass.

3. Ventilation & Airflow Configuration

System Motor & Performance
Intake Assembly

Fans: 4x Double-Inlet Centrifugal (External Rotor)



Power: 2 Groups (4 Fans total); 7.5 kW per motor



Air Volume: 40,000 m³/h



Flow Control: Pneumatic Damper
Extraction Assembly

Fans: 2x Belt-Drive Centrifugal



Power: 11 kW per motor



Air Volume: 4,000 m³/h (Nominal)



Flow Control: Manual Damper
Ducting Kit Includes Straight Ducts (4x), 90° Elbow (1x), 45° Elbow (1x) per group.

4. Heating & Thermal Processing

Component Specs
Burner Unit 2x Riello RG5S (Diesel Fired)
Heat Exchanger High-Efficiency SUS304 Stainless Steel
Heat Capacity Max Output: 26,000 kW
Performance

Spraying: 20°C Temp Rise



Baking: 60°C Target (10–15 min ramp-up)

5. Filtration Hierarchy

Stage Filter Media Standard
Intake (Pre-Filter) Primary Pocket Cotton EN 779 / G3
Ceiling (Fine) Full-depth Viscose High-Efficiency Media EN 779 / F5
Floor (Arrestor) Fiberglass Paint-Stop Mat EN 779 / G3
Exhaust (Chemical) Activated Carbon Granules VOC/Odor Removal

6. Electrical & Illumination

Feature Details
Total Power Load 56 kW
Ceiling Lights 20 Fixtures (4 tubes each) = 80 Tubes
Side Wall Lights 22 Fixtures (4 tubes each) = 88 Tubes
Light Intensity ≥ 1000 Lux
Control Panel Functions: Mode Switch (Spray/Bake), Temp Control, Timer, Emergency Stop, Pressure Alarm, Failure Indicator.

Square Tube Welding and Aluminum Frame for Air Unit Installation in Spray Booth 0

Square Tube Welding and Aluminum Frame for Air Unit Installation in Spray Booth 1

Square Tube Welding and Aluminum Frame for Air Unit Installation in Spray Booth 2

Square Tube Welding and Aluminum Frame for Air Unit Installation in Spray Booth 3

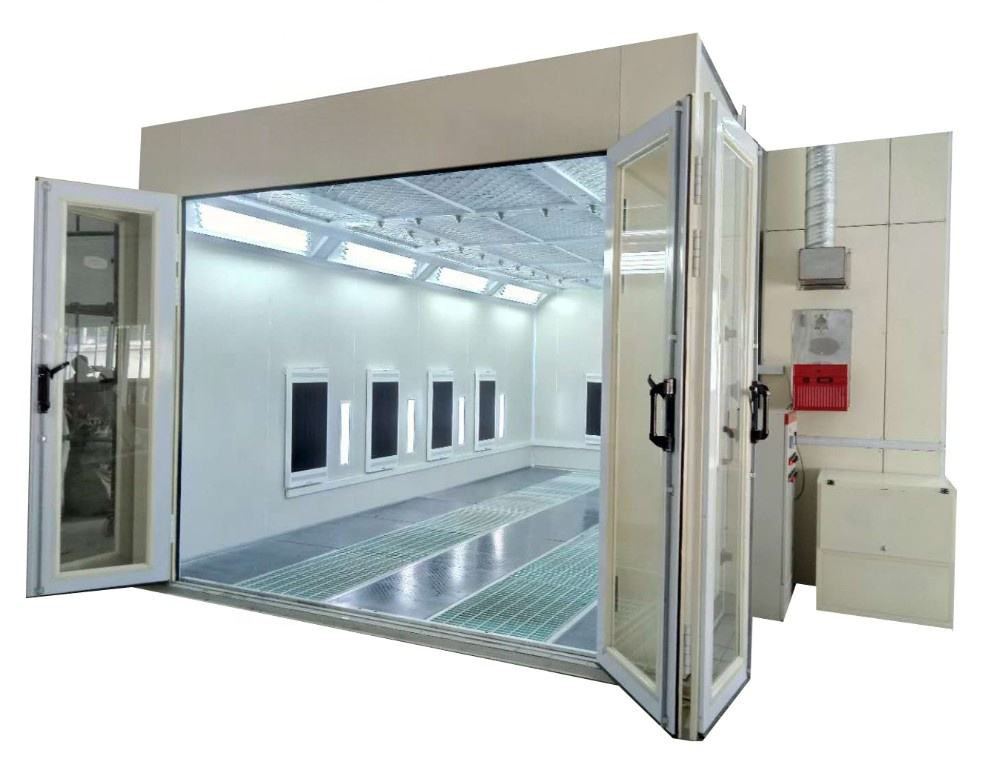

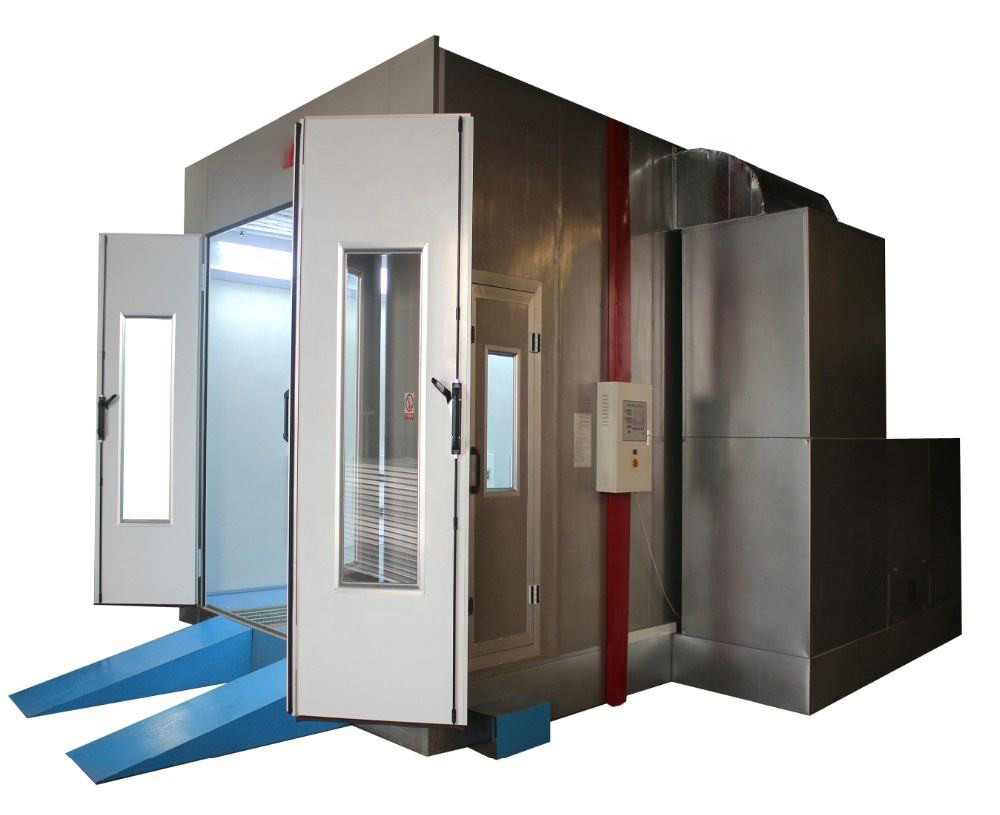

The large-size automobile spray booth is designed to meet diverse needs with top-notch technical specifications

and adaptable features. The interior dimensions are 6900 × 3900 × 2650 mm (L × W × H),(COULD BE CUSTOMIZED)

while the exterior measures 7000 × 5350 × 3400 mm (L × W × H). (COULD BE CUSTOMIZED)The sturdy basement

features galvanized sheet bending hoarding, supported by square tubes and a floor grille, ensuring an overall load-bearing

capacity of 2.4T, adjustable as needed.

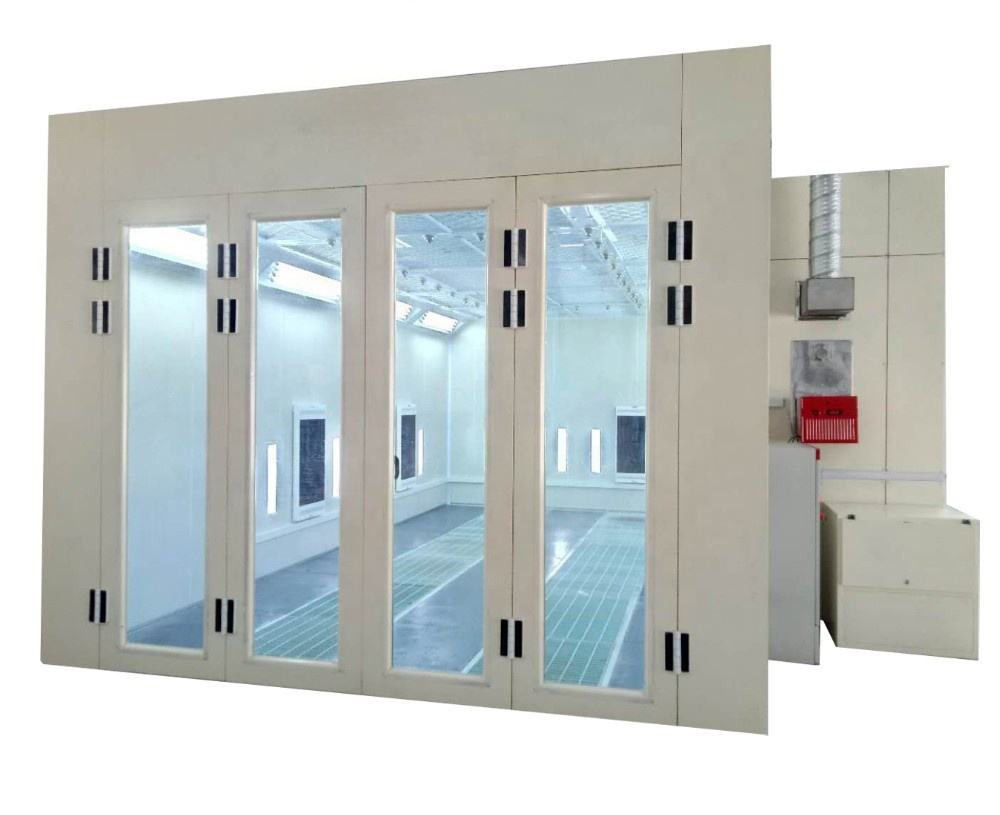

The main front door, 3000 × 2600mm (W×H), has three leaves with square tempered glass windows and EPS filling.

An additional working door, sized 800×2000mm (W×H), includes a pressure lock and observation window.

The booth’s EPS wall panels and galvanized sheet roof provide robust insulation, with optional materials available.

The lighting system delivers over 1000Lux with 32 top and 16 waist LED lamps. The air unit efficiently manages

intake and exhaust, aided by a Riello RG5S burner for optimal heating. The comprehensive filtration system ensures

a clean working environment, while the electronic control system offers precise operational control. Total power

requirement stands at 17kW.(COULD BE CUSTOMIZED)

Square Tube Welding and Aluminum Frame for Air Unit Installation in Spray Booth 4



Square Tube Welding and Aluminum Frame for Air Unit Installation in Spray Booth 5

Square Tube Welding and Aluminum Frame for Air Unit Installation in Spray Booth 6

Square Tube Welding and Aluminum Frame for Air Unit Installation in Spray Booth 7
