Dust Extraction Automotive Paint Mixing Room Industrial Mixing Room Axial Fan System

MOQ: 1
Price: USD1000-USD10000/SET

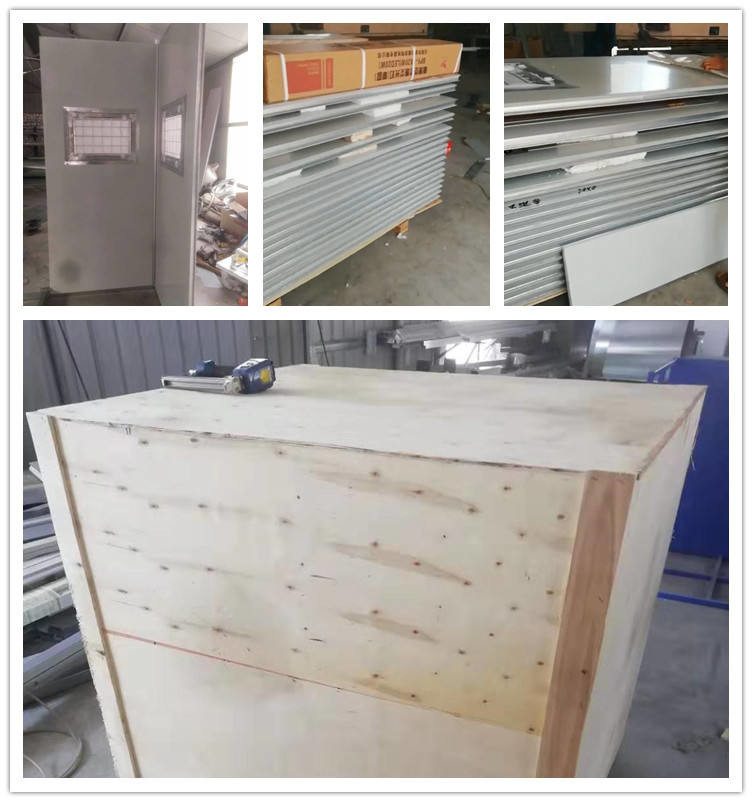

Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 30SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
PX-7
Name:
Paint Mixing Room
Control Sytem::
Switch Style Or PLC Touch Screen Control
Wall::
Metal Sheld,EPS,Rock Wool Of PU For Option
Color::
White Or Other Option
Application::
Metallic Products
Coating:
10-50um
Dimention::
As Require
Safety Features:
Fireproof
Internal Size:
3.45×2.33×2.35m (L×W×H)
Extract System:
Axial Fan
Illumination:
Ceiling Light
Warranty:
1 Year
Usage:
Bodyshop
Fan:
Axial Fan
Wall Panel:
EPS
Size:
Customized
Lighting System:
LED
Heating:
No
Material:
Steel
Exhaust:
Axial Fan
Highlight:

dust extraction axial fan

,

dust extraction paint mixing room

,

fireproof axial fan

Product Description

Excellent Ventilation and Dust Extraction in the Paint Mixing Room



The Economical Paint Mixing Room provides efficient paint preparation at an affordable price. Suitable for

various applications, it features excellent ventilation and dust extraction. Constructed with high-strength materials,

it offers a safe and clean environment for precise paint mixing. Customizable to your specifications, it ensures

high-quality paint preparation, enhancing workflow efficiency for auto body shops.

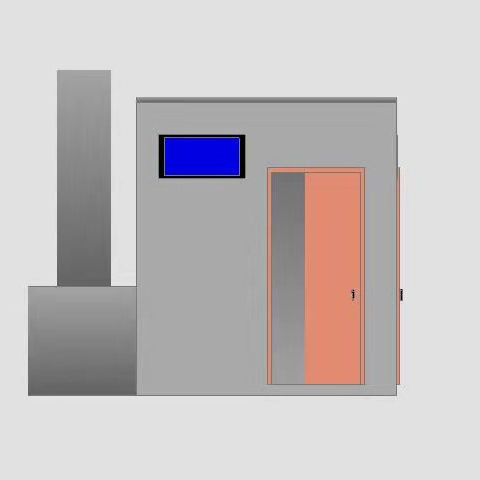

inside

dimension

 3000 × 2000 × 2500 mm (L × W × H)
outer dimension 3100 × 2100 × 2550mm (L×W×H)
working door 1 set, working door size: 800×2000mm (W×H), equipped with pressure lock and glass observation window

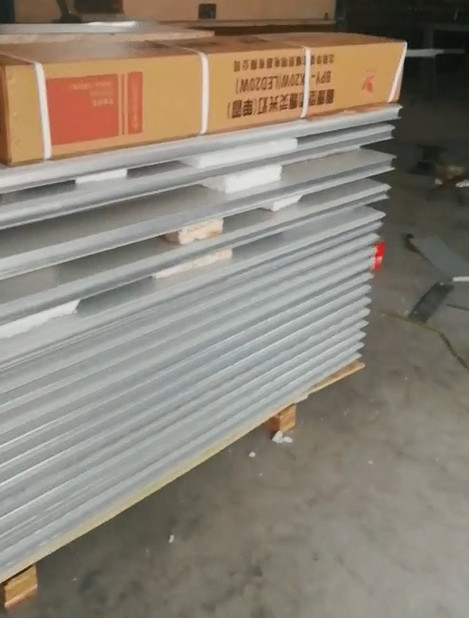

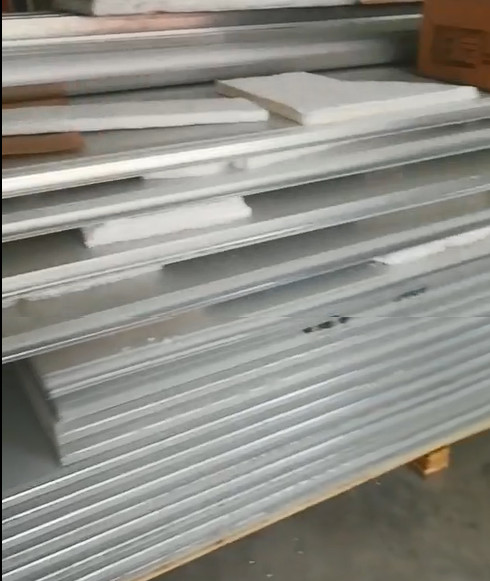

wall panel EPS wall panel, effective width 1150mm, total thickness 50mm , color steel plate thickness: 0.426mm, white, steel edges sealed on both sides; ( Rock wool, PU optional )
roof PS wall panel, effective width 1150mm, total thickness 50mm , color steel plate thickness: 0.426mm, white, steel edges sealed on both sides; ( Rock wool, PU optional )
illumination Top lighting: 2 sets × 2 = 4 18W lamps , explosion-proof and anti-corrosion light box, illumination ≥300Lux

Exhaust Air

Unit

 1 explosion-proof axial flow fan, single motor power: 0.37KW; total flow: 2200m3 /h
filtering system 1 Air supply primary filter cotton : EN 779 level: G3

Electronic

control system

 Fan switch, lighting switch, fault indicator light, power switch, emergency stop switch

Pipeline

system


 The air supply and exhaust are each equipped with 3 sections of 400 x 400 x 1000mm straight air ducts, 1 section of 4 00 x 4 00mm 90° elbow, and 1 section of 4 00 x 4 00mm 45° elbow;
total power 1 KW
Other Configur Spray cabinet, workbench, cleaning cabinet, paint mixing machine

Dust Extraction Automotive Paint Mixing Room Industrial Mixing Room Axial Fan System 0Dust Extraction Automotive Paint Mixing Room Industrial Mixing Room Axial Fan System 1Dust Extraction Automotive Paint Mixing Room Industrial Mixing Room Axial Fan System 2Dust Extraction Automotive Paint Mixing Room Industrial Mixing Room Axial Fan System 3


A paint mixing room is an essential facility in various industries, particularly in automotive, manufacturing, and art sectors,

where precision in color and consistency of paint mixtures are crucial. This specialized environment is designed to provide

a controlled space for the accurate blending of paint, ensuring that the end product meets specific standards and requirements.

The room is equipped with advanced tools and equipment such as mixing scales, shakers, and spectrophotometers, which help

in achieving the desired color accuracy and uniformity.


The paint mixing room is also designed to meet stringent safety and environmental regulations. It typically features ventilation systems

to control fumes and dust, preventing the inhalation of hazardous chemicals by operators. Additionally, it includes proper storage

for chemicals and paints, as well as spill containment measures to protect the workers and the environment.

Dust Extraction Automotive Paint Mixing Room Industrial Mixing Room Axial Fan System 4

Dust Extraction Automotive Paint Mixing Room Industrial Mixing Room Axial Fan System 5

Dust Extraction Automotive Paint Mixing Room Industrial Mixing Room Axial Fan System 6


Dust Extraction Automotive Paint Mixing Room Industrial Mixing Room Axial Fan System 7

Peace Environmental Protection always adheres to the core principle of "quality first, honest service" and provides
excellent solutions for customers in the field of environmental protection equipment. The factory is located in
Guangzhou City, Guangdong Province.
The company's main products include environmental protection equipment such as spray booth,coating line,painting line
and waste gas and wastewater treatment,if you have any inquiry,please leave the inquiry here directly,will be respond to you within 12 hours
We will make the exact Design Drawing,Design Case in words,and Quotation in detail,just waiting for you leave the message here.


Dust Extraction Automotive Paint Mixing Room Industrial Mixing Room Axial Fan System 8
