Name: Superior Water Curtain Spray Booth for Cleaner Healthier Painting Environments
Brand: CoatTech Intelligent Equipment(Guangzhou) CO.,LTD
SKU: FEW-10
Price: 550.00 USD
Availability: InStock

Superior Water Curtain Spray Booth for Cleaner Healthier Painting Environments

Basic Information

Place of Origin:	China
Brand Name:	CoatTech
Certification:	CE
Model Number:	FEW-10

Minimum Order Quantity:	1
Price:	USD100-USD1000/SET
Packaging Details:	With regular Film and Carton
Delivery Time:	15 DAYS After Deposit
Payment Terms:	T/T
Supply Ability:	30SET/MONTH

Contact Now

Size:

10 Inches

Type:

Water Filter

Compatibility:

Fits Most Standard Faucets

Flow Rate:

5 Gallons Per Minute

Power Source:

None

Filter Life:

6 Months

Certifications:

NSF/ANSI 42, NSF/ANSI 53

Material:

Stainless Steel

Filtration Level:

0.5 Microns

Warranty:

1 Year

Installation Type:

Under Sink

Included Components:

Filter Cartridge, Installation Hardware

Highlight:

industrial Filtering Equipment

durable Filtering Equipment

spray booth water filter

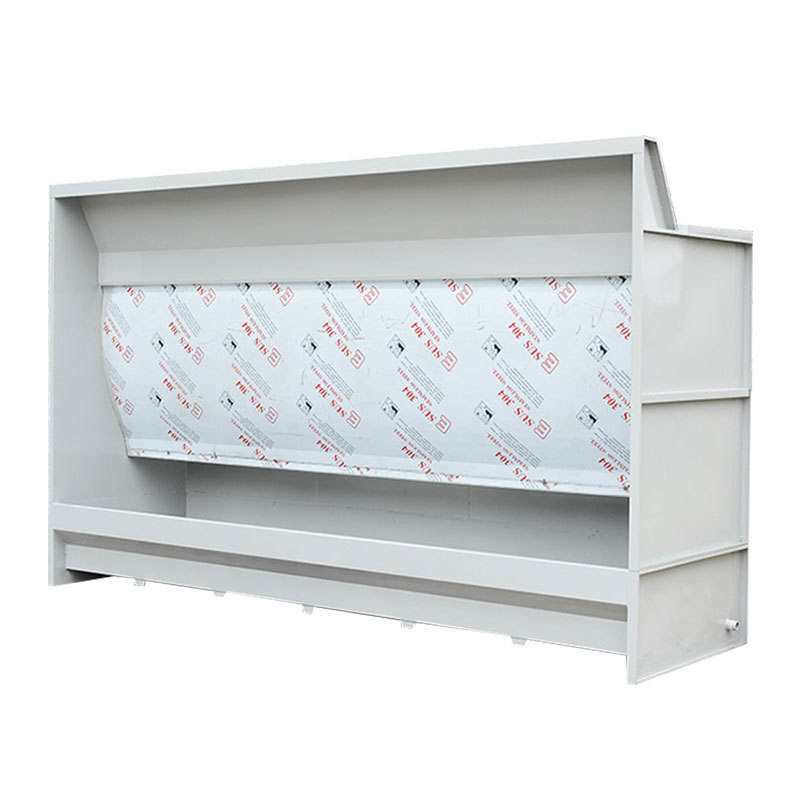

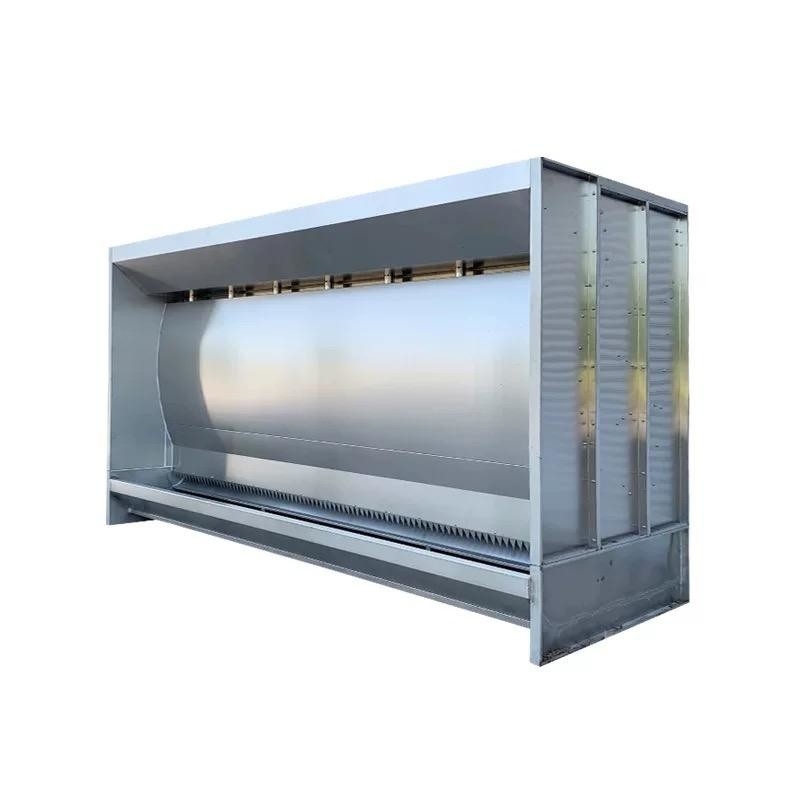

Superior Water Curtain Spray Booth for Cleaner, Healthier Painting Environments

Ensure a cleaner, healthier spray painting environment with our 2000 × 1100 × 2400 mm water curtain spray booth.

The multi-layer water curtain captures paint powder and filters odors, while the robust 1.5mm thick 304 stainless steel

construction ensures durability. Featuring a 1.5KW water pump and a 2.2KW exhaust fan, this booth is equipped

with an intuitive electronic control system and customizable to meet specific site needs

size	2000 × 1100 × 2400 mm (L×W×H)
Features	The characteristic of the water curtain cabinet is that the remaining paint powder during spray painting can be directly sprayed into the pool or the water curtain surface, while the odor generated during spray painting and a small amount of unadsorbed paint powder are filtered through the multi-layer water curtain and then discharged to the exhaust fan. Outside the spray painting room, it can purify the spray painting working environment and protect personal health, and can also enhance the smoothness of the surface of the painted workpiece.
structure	All 1.5mm thick 304 stainless steel bending and splicing in bulk (can be shipped as a whole)
water pump	Adopt vertical 1.5KW pipeline pump, lift 15m, flow ≥25m³/h;
PVC pipe	DN50PVC pipes connect water pumps and water curtains to ensure water circulation
Exhaust system	1 single inlet axial flow fan, pulley drive, single motor power: 2.2KW; total flow: 12000m3 /h, equipped with manual adjustment damper .
Electronic control	Fan switch, water pump switch, fault indicator light, power switch, emergency stop switch
Pipeline system	The air supply and exhaust are each equipped with 3 sections of 6 00 x 6 00 x 1000mm straight air ducts, 1 section of 6 00 x 6 00mm 90° elbow, and 1 section of 6 00 x 6 00mm 45° elbow;
total power	4KW
Special Note	Can be customized according to site requirements

Superior Water Curtain Spray Booth for Cleaner Healthier Painting Environments 0

Superior Water Curtain Spray Booth for Cleaner Healthier Painting Environments 4
