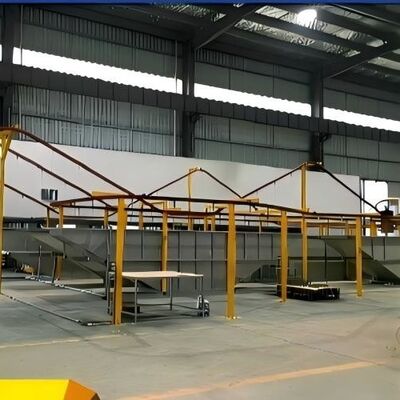

Fully Automated Industrial Spray Painting and Baking Conveyor Line Custom Engineered Solutions with Adjustable Speed

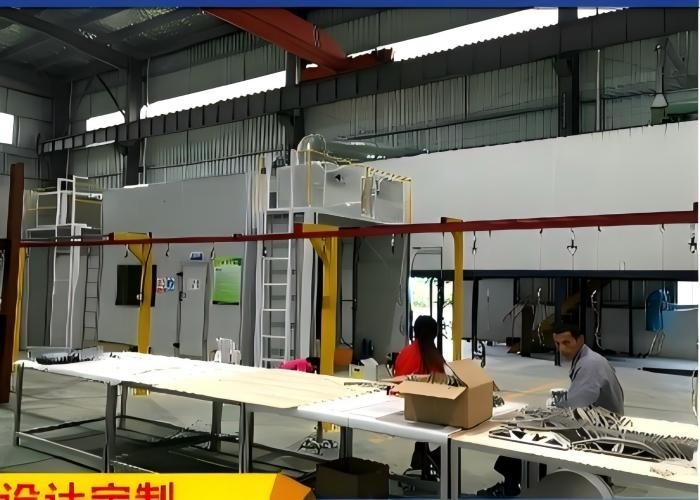

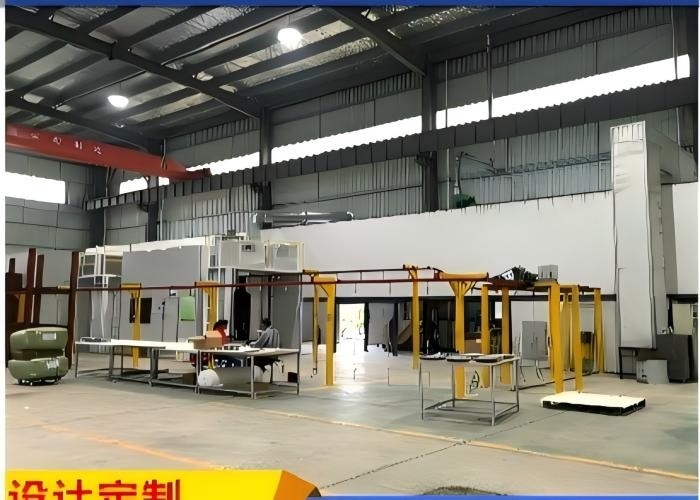

Fully Automated Intelligent Suspension Spray Coating Line for Metal Components

A highly automated and intelligent surface treatment system specifically designed for spray coating processes of metal components (e.g., automotive parts, hardware fittings, machinery accessories). By integrating suspended conveyor systems, intelligent robotic sprayers, environmental controls, and curing technologies, it achieves efficient, precise, and eco-friendly coating operations. Below is a detailed breakdown of its core components, technical features, and applications:

I. Core Modules

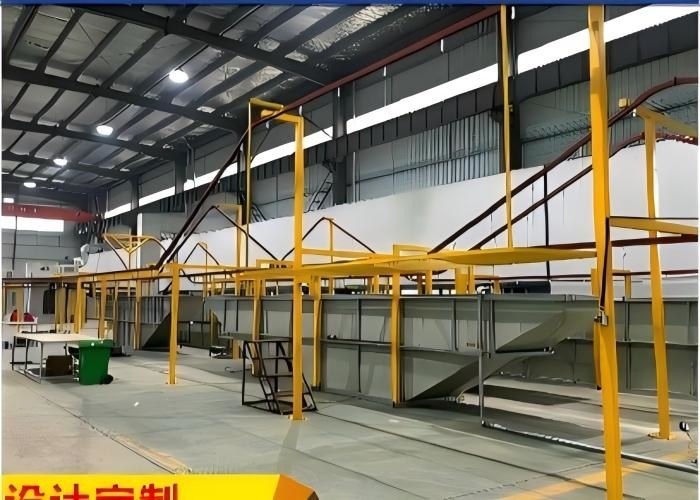

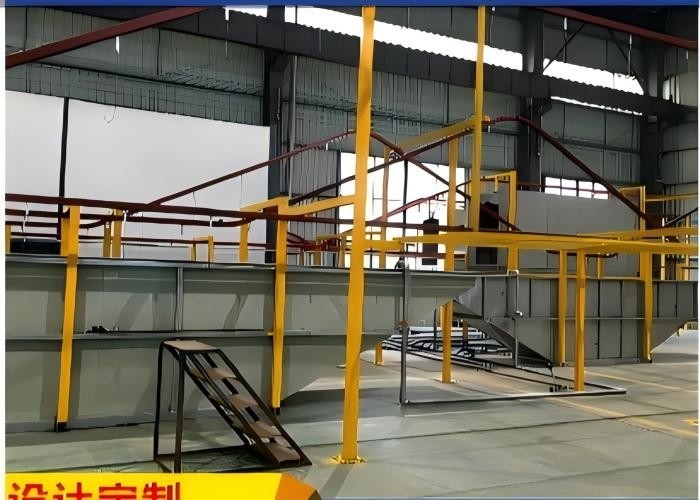

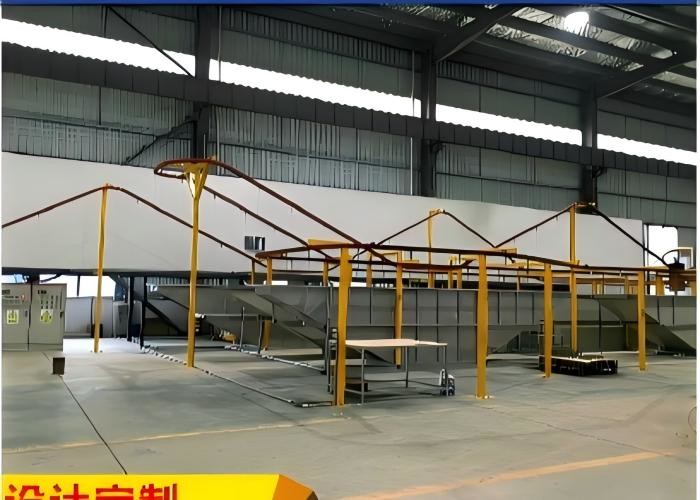

1. Suspended Conveyor System

• Track & Hangers: Components are suspended on tracks via specialized fixtures, enabling continuous multi-station synchronized workflows.

• Intelligent Speed Regulation: Auto-adjusts conveyor speed based on coating requirements to ensure uniform coverage.

• Automated Loading/Unloading: Optional robotic arms for fully unmanned material handling.

2. Intelligent Spray Robots

• Multi-Axis Manipulators: Equipped with high-precision spray guns for 360° coverage on complex geometries.

• Adaptive Parameter Control: Auto-adjusts spray pressure, atomization, and nozzle distance based on component dimensions and paint properties.

• Real-Time Monitoring: Tracks coating thickness/uniformity with automatic error correction.

3. Paint Supply & Circulation System

• Centralized Paint Delivery: Precision mixing and dispensing to minimize waste.

• Paint Recovery: Cyclic filtration systems reclaim overspray (material utilization >90%).

• Viscosity Control: Maintains stable paint properties in temperature/humidity-controlled environments.

4. Curing & Drying System

• Multi-Stage Heating: Infrared/thermal air ovens with phased temperature control to prevent blistering/cracking.

• Energy Recovery: Heat recycling technology reduces energy consumption by 25-40%.

5. Intelligent Control System

• PLC Integration: Centralized control via PLC and HMI touchscreens.

• Predictive Maintenance: Real-time diagnostics with fault alerts and resolution prompts.

• Recipe Management: Stores 100+ coating parameters for rapid product changeovers.

II. Technical Advantages

1. Full Automation

• Unmanned 24/7 operation reduces labor costs by 60-80%, boosting productivity by 30-50%.

2. Coating Quality Assurance

• Robotic precision (±0.1mm), superior adhesion, and anti-dripping technology.

3. Eco-Friendly Design

• Closed spray booths with VOC filtration (activated carbon/water curtain) compliant with EPA/RoHS.

4. Flexibility & Scalability

• Compatible with water-based/powder coatings and diverse component sizes (modular expandability).

5. Data-Driven Optimization

• OPC-UA/IIoT connectivity for production analytics and predictive quality control.

III. Key Applications

• Automotive: Anti-corrosion coating for engine parts, wheel hubs, chassis components.

• Home Appliances: Aesthetic/rust-proof finishes on metal casings (refrigerators, AC units).

• Architectural Hardware: Surface treatment for door handles, locks, bathroom fixtures.

• Industrial Machinery: Wear-resistant coatings on hydraulic components, CNC parts.

• Furniture: Custom color finishes on metal frames and decorative elements.

IV. Comparison with Traditional Spraying
