Electric Heating Auto Spray Booth | 50Hz Environmental Car Painting Oven | Dust-Free Garage Spraying Room
Advantages:
-
Eco-Friendly Heating: High-efficiency electric heating tubes (Lux series) – No diesel smoke, zero pollution, 98% energy conversion rate.
-
Rapid Baking: Heats from 20°C to 60°C in just 10-15 minutes.
-
Superior Airflow: 24,000 m³/h air capacity ensures a dust-free environment for high-gloss finishes.
-
Durable Structure: 50mm EPS insulation wall panels + galvanized steel roof ensures stable temperature retention.
-
Safety First: Equipped with overheat protection, phase failure alarm, and emergency stop system
Technical Specifications
| Parameter |
Specification Details |
| Model |
CT-E-700 (Electric Series) |
| Inside Dimension |
6900 × 3900 × 2650 mm (L×W×H) |
| Outside Dimension |
7000 × 5250 × 3400 mm (L×W×H) |
| Wall Panels |
50mm EPS (Polystyrene) or Rock Wool (Optional), 0.476mm Color Steel Skin, Tongue & Groove construction. |

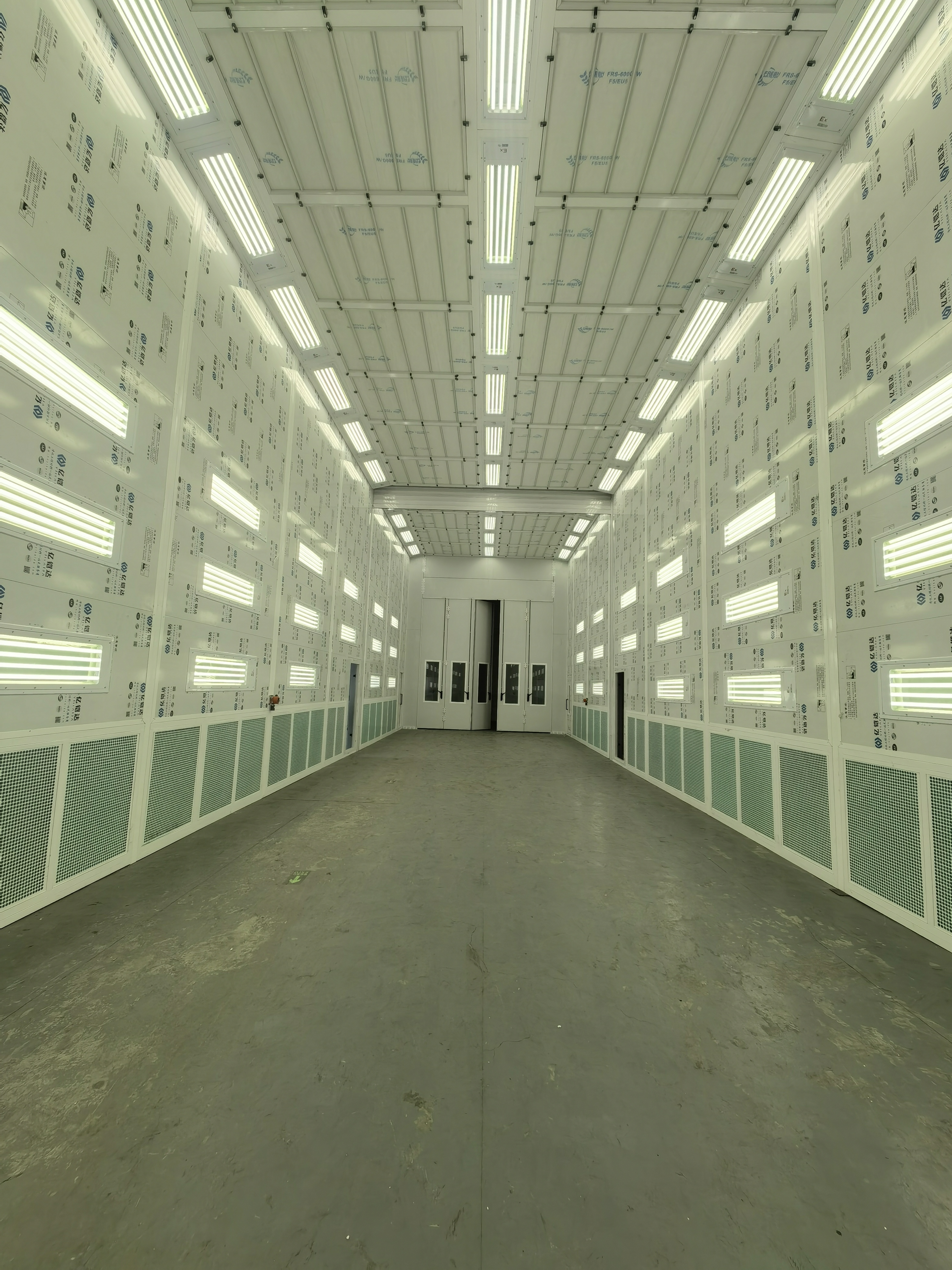

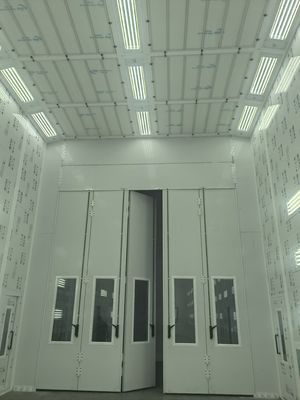

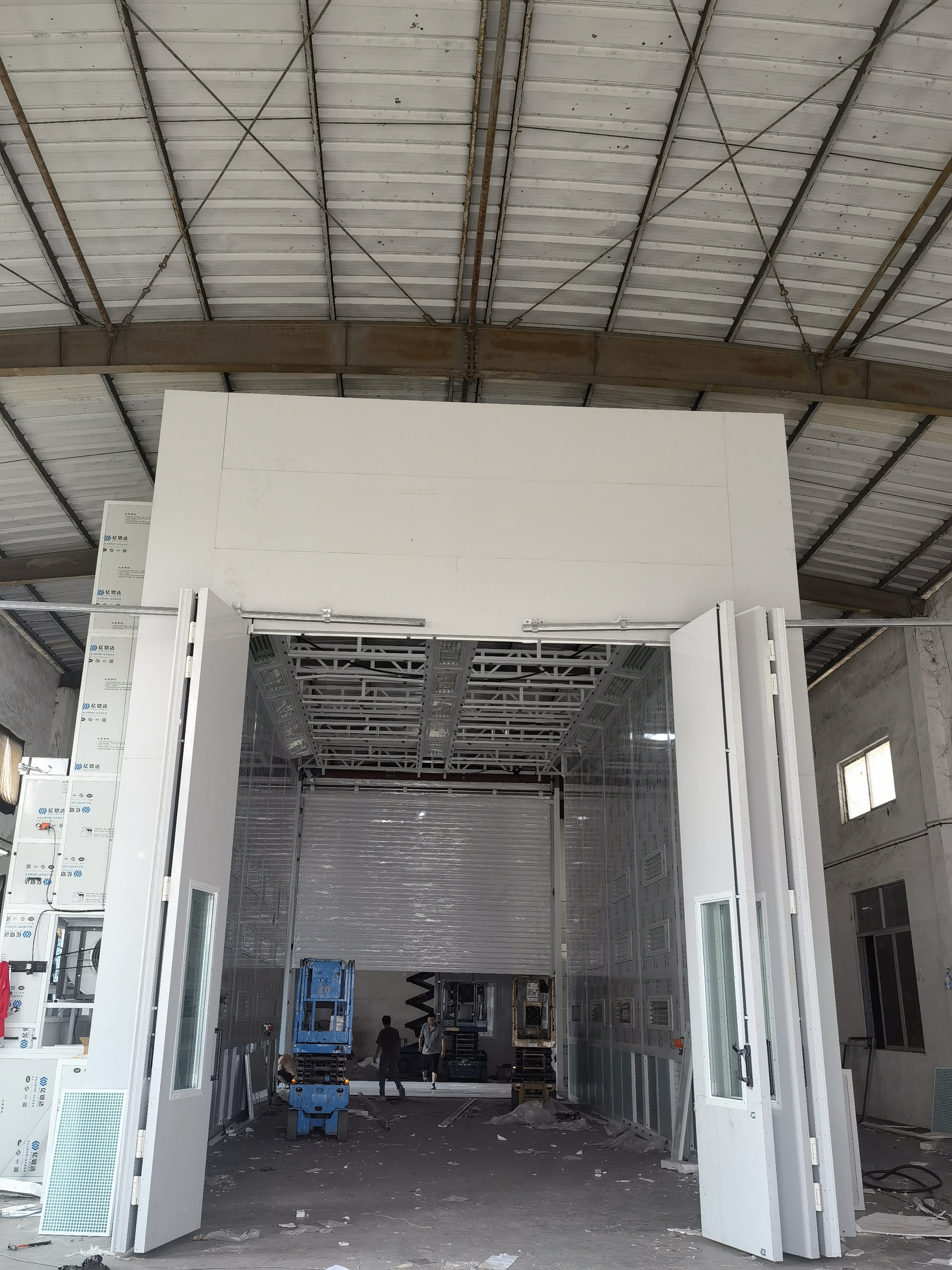

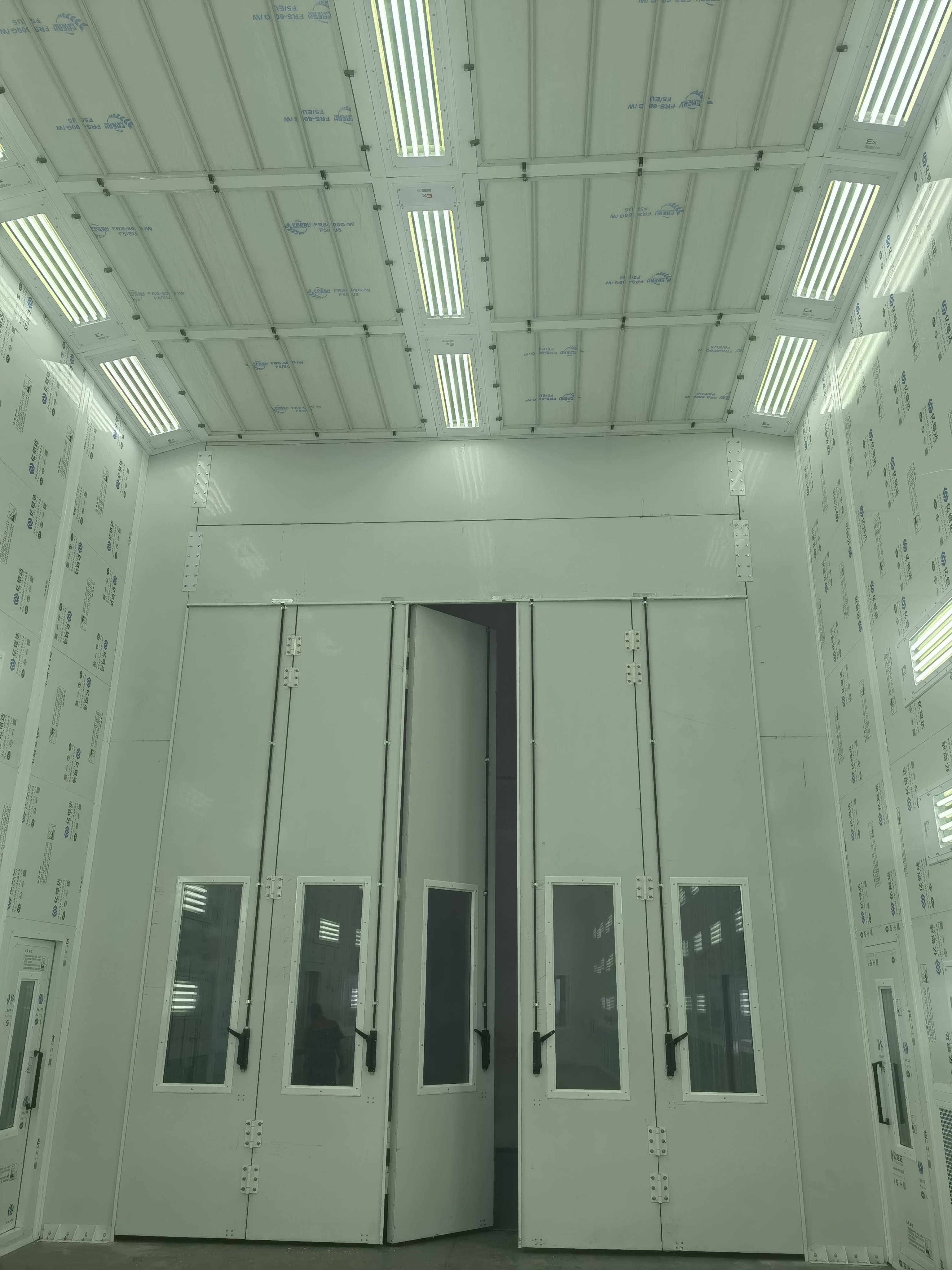

| Main Door |
3-Fold heavy duty sheet metal door: 3000 × 2600 mm (W×H). |
| Service Door |
1 unit: 650 × 1800 mm (W×H) with pressure lock. |
| Basement |
300mm height galvanized steel assembly. 2 rows of grids, 3 rows of diamond plates. |
| Intake System |
2 × 4kW Centrifugal Fans. Air Capacity: 24,000 m³/h. |
| Exhaust System |
1 × 5.5kW Centrifugal Fan (Optional for standard, Recommended for water-based paint). |
| Heating System |
Electric Heating Groups. 8-10 groups of infrared lamps or stainless steel heating tubes. Max Temp: 80°C. |
| Filtration System |
Pre-filter: G3 Grade. Ceiling Filter: EU5/F5 High-efficiency. Floor Filter: Fiberglass paint-stop. |
| Lighting |
Ceiling: 32 pcs × 16W LED. Side: 16 pcs × 16W LED (Optional). >1000 Lux. |
| Control System |
Micro-computer control: Painting, Baking, Timer, Lighting, Failure Indicator, Thermostat. |
| Total Power |
~35KW - 45KW (Depending on final heating configuration). |
| Voltage |
380V / 3 Phase / 50Hz (Customizable to 220V/415V). |
Detailed Product Description
Product Overview Designed for modern body shops requiring compliance with environmental regulations, our Electric Heating Paint Booth offers a clean, efficient, and safe alternative to traditional diesel burners. This booth is engineered for high-quality surface refinishing, suitable for sedans, SUVs, and small vans.
Why Choose Electric Heating?
-
Uniform Temperature: The electric heating exchangers provide a stable curing curve, essential for preventing paint defects like "orange peel" or solvent pop.
-
Low Maintenance: No burner nozzles to clean, no diesel filters to change.
-
Cost-Effective: With the rising cost of fossil fuels, electric heating (especially when paired with targeted usage) offers a predictable operational cost.
Construction Quality
-
Wallboard: We use high-density EPS foam (14kg/m³) for excellent thermal insulation.
-
Plenum: The upper static pressure chamber is galvanized steel, designed to equalize air pressure across the ceiling filters for perfectly vertical airflow (Down-draft).
Application Ideal for 4S service centers, high-end car repair shops, and custom body modification studios. Can be integrated into a larger Paint Line workflow for continuous production
5. Packaging & Shipping Information
-
Packing: Standard export packing.
-
Main beams/frames: Bubble wrap + Stretch film.
-
Wall panels: Edge protection + Film.
-
Small parts (Lights, Screws, Hinges): Carton boxes.
-
Container Load: 1 Set = 20GP Container (Disassembled).
-
Lead Time: 10-15 Working Days after deposit.
Detailed Product Description
Professional Auto Body Finishing Solution Designed for professional body shops and garages, this Electric Heating Paint Booth ensures a flawless finish for all vehicle types. By eliminating dust and maintaining stable baking temperatures, you can increase throughput and reduce polishing time.
Heating System Efficiency Unlike traditional diesel burners, our Electric Heating system offers a cleaner, safer alternative. It heats up rapidly (reaching 60°C in ~10-15 minutes) and maintains a consistent temperature curve, essential for water-based and solvent-based paints.
Air Filtration Technology
-
Primary Filter: Captures large granules >10μm.
-
Ceiling Filter: High-efficiency CC-600G adhesive filter captures particles >5μm.
-
Floor Filter: Fiberglass paint-stop filter ensures overspray is trapped.
-
Exhaust Filter: Activated carbon helps reduce odors and VOC emissions (environmentally friendly).
Safety & Durability The cabin is built with flame-resistant EPS panels and a galvanized steel frame. The control panel features overload protection, phase-failure alarm, and an emergency stop button to ensure operator safety at all times.
Packaging & Shipping
-
Packaging: Standard export flat-packing. Beams and panels wrapped in bubble film; small components in carton boxes.
-
Loading: 1 set fits in a 20GP container (depending on config), or 2 sets in a 40HQ container.
-
Lead Time: 15-20 Days after deposit.
-
Warranty: 12 Months (Main parts).
FAQ (Frequently Asked Questions)
Q: Can this booth handle water-based paints? A: Yes. For water-based paints, we recommend adding the optional "Corner Drying Nozzles" and upgrading the air velocity system to accelerate evaporation.
Q: What is the warranty period? A: We provide a 1-year warranty on the main structure and electric components (fans, control box). Consumables (filters, lamps) are not included.
Q: Is it difficult to install? A: No. We provide a detailed 3D installation drawing and a step-by-step video guide. The structure uses a modular "insert-and-lock" system.
Q: Can you customize the voltage for my country? A: Yes, while the standard is 380V/50Hz, we can customize motors and heating elements for 220V/60Hz, 415V, or 480V as per your local power grid.
