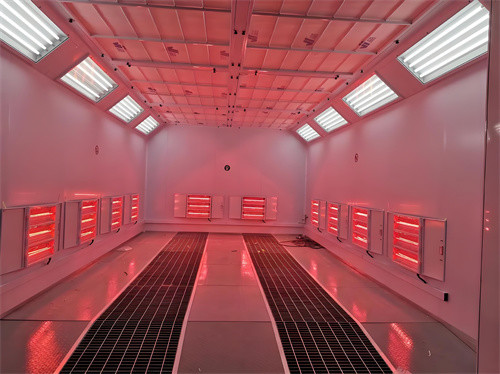

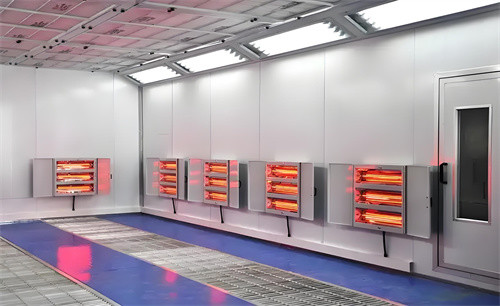

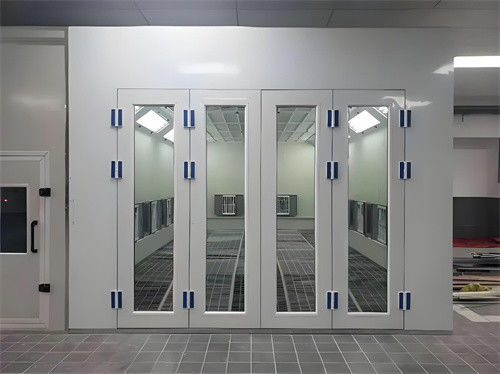

Premium Infrared-light Car Paint Booth | Turbo Fan Drying System | High-Airflow Spraying Oven
Advantages:
-
Turbo Airflow: Upgraded 7.5kW Turbo Intake fans provide higher air velocity (26,000+ m³/h) than standard models.
-
Full Ramp System: Internal pneumatic ramp or full metal basement options available for easy vehicle entry.
-
Touch Screen Control: Modern PLC control panel with LCD touch screen for precise temperature and time management.
-

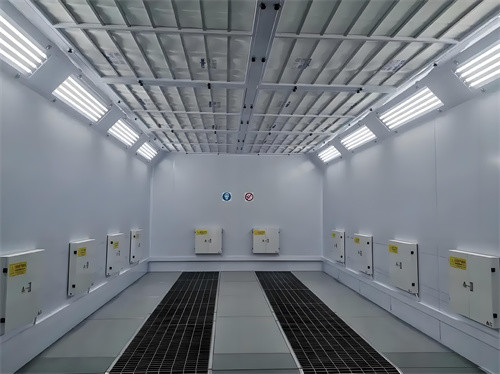

Shadowless Lighting: Dual lighting system (Ceiling + Side Walls) ensures zero blind spots during painting.
Technical Specifications
| Parameter |
Specification Details |
| Model |
CT-IR-Pro (Infrared-light Series) |
| Inside Dimension |
6900 × 4000 × 2800 mm (Wider & Higher than standard) |
| Outside Dimension |
7100 × 5400 × 3500 mm |
| Wall Panels |
70mm Rock Wool (Fireproof) or high-density EPS. 0.6mm Steel Skin. |
| Basement |
Full Grating (All floor is grid, no diamond plate) for maximum airflow exhaust. |
| Intake System |
1 × 7.5kW Turbo Centrifugal Fans (Siemens/ABB Motor). |
| Exhaust System |
1 × 7.5kW Turbo Centrifugal Fan with electrical damper. |
| Water-Based System |
36 Pcs Ceiling Nozzles or 2 Corner Blowers to speed up flash-off time. |
| Heating System |
RG5S Diesel Burner (Riello Brand, Italy) or High-Power Electric. |
| Heat Exchanger |
Stainless Steel SUS304, Argon arc welding, explosion-proof design. |
| Lighting |
Ceiling: 40 pcs LED. Side: 20 pcs LED (Vertical installation). |
| Filter System |
4-Stage: Pre-filter, Ceiling EU5, Floor Fiberglass, Activated Carbon Pocket filter. |
| Control System |
PLC Touch Screen + Inverter (VFD) for air pressure adjustment. |
Detailed Product Description
Engineered for Modern Refinishing As environmental regulations shift towards water-based paints, your workshop needs equipment that can handle the change. The CT-WB-Pro is specifically engineered to solve the "slow drying" issue of waterborne paints.
The "Flash-Off" Advantage Standard booths rely on heat alone. This Premium model integrates a Wind Acceleration System (via ceiling nozzles or corner blowers). This creates turbulent airflow that breaks the boundary layer of moisture on the painted surface, reducing drying time by up to 50% compared to standard booths.
Premium Build Quality
-
Wider Cabin: We increased the width to 4 meters (vs. standard 3.9m) to give painters more room to move around larger SUVs and trucks.
-
Full Grating Floor: The entire floor is a metal grid, allowing for 100% downward airflow. This immediately pulls overspray away from the car, ensuring the cleanest possible finish.
-
VFD Control: The Variable Frequency Drive allows you to adjust fan speed and cabin pressure instantly, saving energy when full power isn't needed.
Application Perfect for high-volume collision centers, authorized dealership body shops (Toyota, BMW, Mercedes standards), and heavy-duty refinishing.
5. Packaging & Shipping Information
-
Packing: Standard export packing.
-
Main beams/frames: Bubble wrap + Stretch film.
-
Wall panels: Edge protection + Film.
-
Small parts (Lights, Screws, Hinges): Carton boxes.
-
Container Load: 1 Set = 20GP Container (Disassembled).
-
Lead Time: 10-15 Working Days after deposit.
Detailed Product Description
Professional Auto Body Finishing Solution Designed for professional body shops and garages, this Electric Heating Paint Booth ensures a flawless finish for all vehicle types. By eliminating dust and maintaining stable baking temperatures, you can increase throughput and reduce polishing time.
Heating System Efficiency Unlike traditional diesel burners, our Electric Heating system offers a cleaner, safer alternative. It heats up rapidly (reaching 60°C in ~10-15 minutes) and maintains a consistent temperature curve, essential for water-based and solvent-based paints.
Air Filtration Technology
-
Primary Filter: Captures large granules >10μm.
-
Ceiling Filter: High-efficiency CC-600G adhesive filter captures particles >5μm.
-
Floor Filter: Fiberglass paint-stop filter ensures overspray is trapped.
-
Exhaust Filter: Activated carbon helps reduce odors and VOC emissions (environmentally friendly).
Safety & Durability The cabin is built with flame-resistant EPS panels and a galvanized steel frame. The control panel features overload protection, phase-failure alarm, and an emergency stop button to ensure operator safety at all times.
Packaging & Shipping
-
Packaging: Standard export flat-packing. Beams and panels wrapped in bubble film; small components in carton boxes.
-
Loading: 1 set fits in a 20GP container (depending on config), or 2 sets in a 40HQ container.
-
Lead Time: 15-20 Days after deposit.
-
Warranty: 12 Months (Main parts).
FAQ (Frequently Asked Questions)
Q: Why do I need a specific booth for water-based paint? A: Water evaporates much slower than solvent. Without the extra airflow system in this booth, your drying cycles will be too long, creating a bottleneck in your shop.
Q: Can I use this booth for solvent-based paint too? A: Absolutely. You can simply turn off the auxiliary drying fans/nozzles. The booth performs exceptionally well for clear coats and solvent basecoats.
Q: What is the benefit of the Full Grating floor? A: Unlike "partial" grating, a full grating floor eliminates "dead zones" where air doesn't move. It guarantees that overspray is pulled down instantly from every angle of the car.
Q: Does this booth require a pit? A: No, it comes with a raised metal basement (350mm height) and ramps. However, if you prefer a flush floor, we can provide drawings for pit excavation.
