Industrial Large Truck Spray Paint Booth | 15m Bus Painting Oven | Heavy Duty Commercial Chamber

MOQ:	1
Price:	USD5000-USD10000/SET
Standard Packaging:	With regular Film and Carton
Delivery Period:	15 DAYS After Deposit
Payment Method:	T/T
Supply Capacity:	30SET/MONTH

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

CoatTech

Certification

Model Number

Bbooth-20

Power Supply::

380V/50HZ/3Ph Or Other Option

Using Energy::

Diesel,gas,steam,electric Or Other Option

Main Door::

Fold Style Or Electric Rolling Style

Application::

Bus/truck Or Other Metallic Products

Energy Sources::

Water, Electricity,gas

Coating:

10-50um

Noise Level:

≤80dB

Material:

Steel

Usage:

Automotive Painting, Furniture Painting, Industrial Painting

Heating System:

Riello Brand Burner

Highlight:

industrial truck spray paint booth

large bus painting oven

heavy duty spray booth chamber

Product Description

Industrial Large Truck Spray Paint Booth 15m Bus Painting Oven Heavy Duty Commercial Chamber

Advantages:

Massive Capacity: Designed for buses, trailers, semi-trucks, and heavy machinery (12m to 15m length options).
Double Airflow System: Uses two separate Air Handling Units (AHU) to ensure uniform air pressure across the entire 15m length.
Heavy-Duty Structure: Reinforced steel beams and 75mm thick wall panels to support the structural integrity of a large cabin.
Zone Control: The heating and spraying systems can be controlled in zones (e.g., turn on only half the booth for smaller jobs) to save energy.
Optional 3D Lift: Compatible with wall-mounted 3-axis personnel lifts for painting high roofs safely.

Parameter	Specification Details
Model	CT-BUS-1500 (Industrial Series)
Internal Dimension	15,000 × 5,000 × 5,000 mm (L×W×H)
External Dimension	15,150 × 6,900 × 5,600 mm (L×W×H)
Wall Panels	75mm EPS (Polystyrene) or Rock Wool. Interlocking tongue & groove. 0.5mm Steel Skin.
Main Door	4-Fold Heavy Duty Door: 4000 × 4500 mm (W×H).
Service Doors	2 units of side personnel doors equipped with panic bars.
Intake System	4 sets × 7.5kW Centrifugal Fans. Total Intake: 72,000 m³/h.
Exhaust System	2 sets × 11kW Centrifugal Fans with Siemens/ABB Motors.
Heating System	2 sets of RG5S Diesel Burners (Riello Italy). Total Heat Capacity: 520,000 Kcal/h.
Lighting	Ceiling: 64 pcs × 18W LED. Side: 40 pcs × 18W LED.
Filtration	Multi-layer fiberglass filter + M-shape floor filter for high paint mist retention.
Control System	Star-Delta start-up, Temperature setting, Baking timer, Pressure gauge, Emergency Stop.
Basement	Usually No Basement (Concrete Pit required) or 2 rows of heavy-duty floor grids for pit-less setup.
Total Power	~55 KW

Detailed Product Description

Industrial Solution for Commercial Fleets The CT-BUS-1500 is engineered for the heavy-duty sector. Painting a bus or a trailer requires a completely different airflow strategy than a car. This booth utilizes a "Split-Flow" design with two independent generator groups, ensuring that the air velocity remains constant (>0.35m/s) even at the far end of the booth.

Energy Saving "Zone" Technology Running a 15m booth is expensive if you are only painting a tractor head or a small van. Our control system allows you to split the booth operation. You can activate only the front 7m section of lights and fans, effectively turning this giant booth into a standard car booth to save electricity and fuel.

Structural Integrity

Columns: Square tube steel beams (100x100mm) reinforce the skeleton.
Roof: High-strength galvanized plates support the heavy plenum and filter sets.
Safety: The booth is equipped with explosion-relief vents and high-temperature limiters.

Applications

City Bus & Coach Manufacturing
Logistics Truck Repair & Refurbishing
Train/Railway Parts Painting
Excavator and Crane Coating

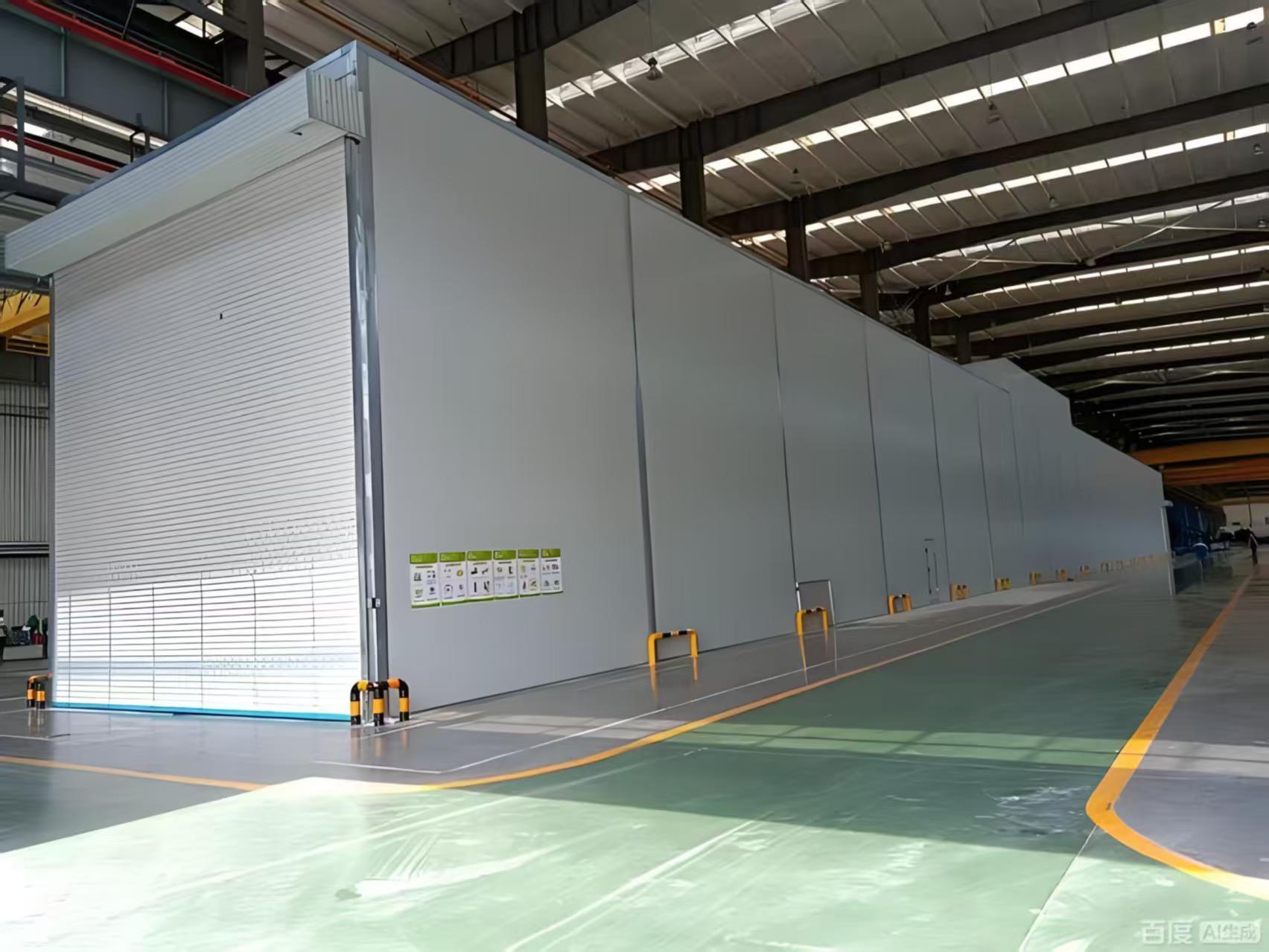

Industrial Large Truck Spray Paint Booth | 15m Bus Painting Oven | Heavy Duty Commercial Chamber 0

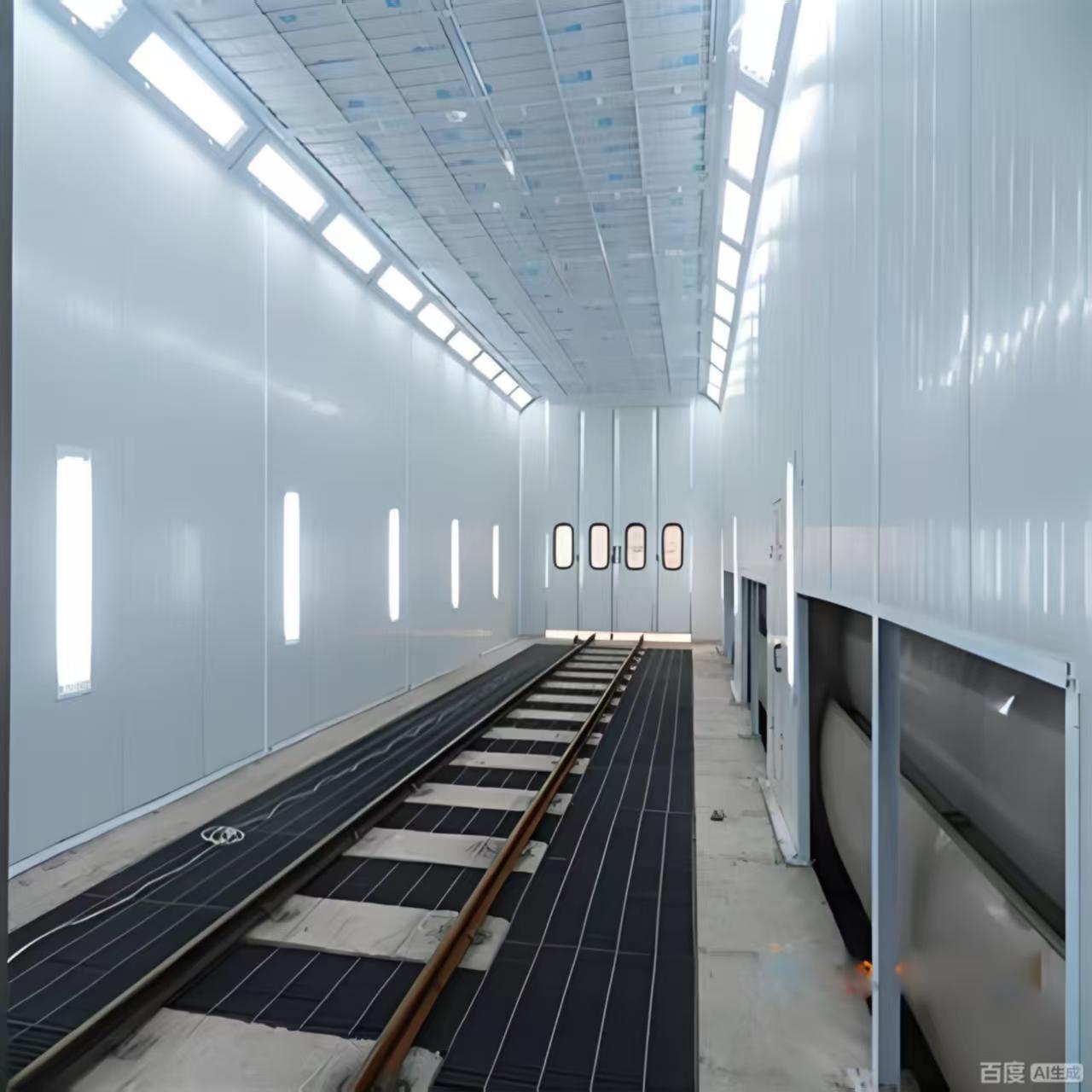

Industrial Large Truck Spray Paint Booth | 15m Bus Painting Oven | Heavy Duty Commercial Chamber 1

Industrial Large Truck Spray Paint Booth | 15m Bus Painting Oven | Heavy Duty Commercial Chamber 2

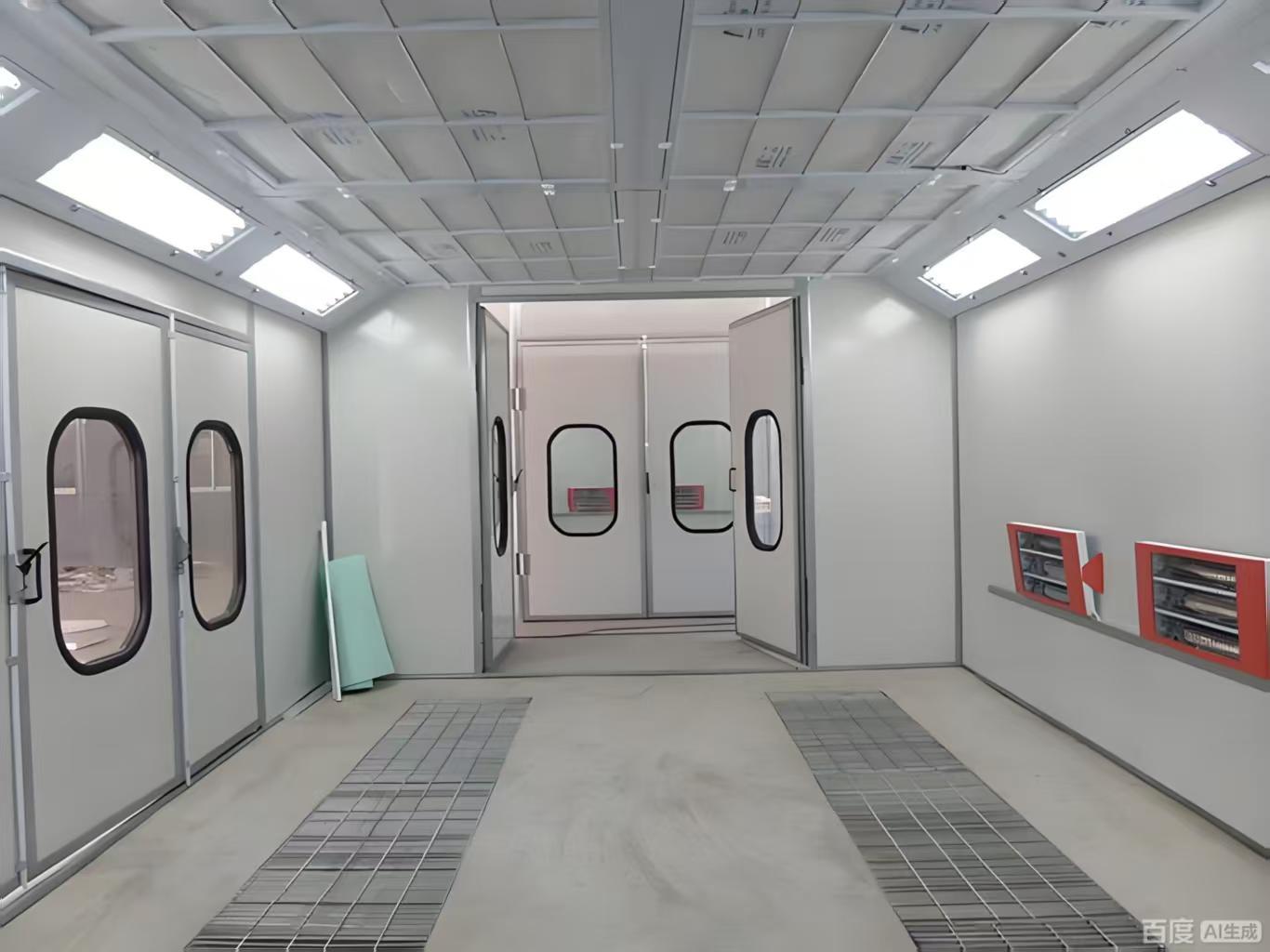

Industrial Large Truck Spray Paint Booth | 15m Bus Painting Oven | Heavy Duty Commercial Chamber 3

FAQ (Frequently Asked Questions)

Q: Can I install this on a flat concrete floor? A: Yes, but standard large booths usually use a "Side Draft" or "Rear Draft" on a flat floor to avoid expensive basement construction. If you want "Down Draft" on a flat floor, we must supply a 400mm metal basement with heavy-duty drive-in ramps.

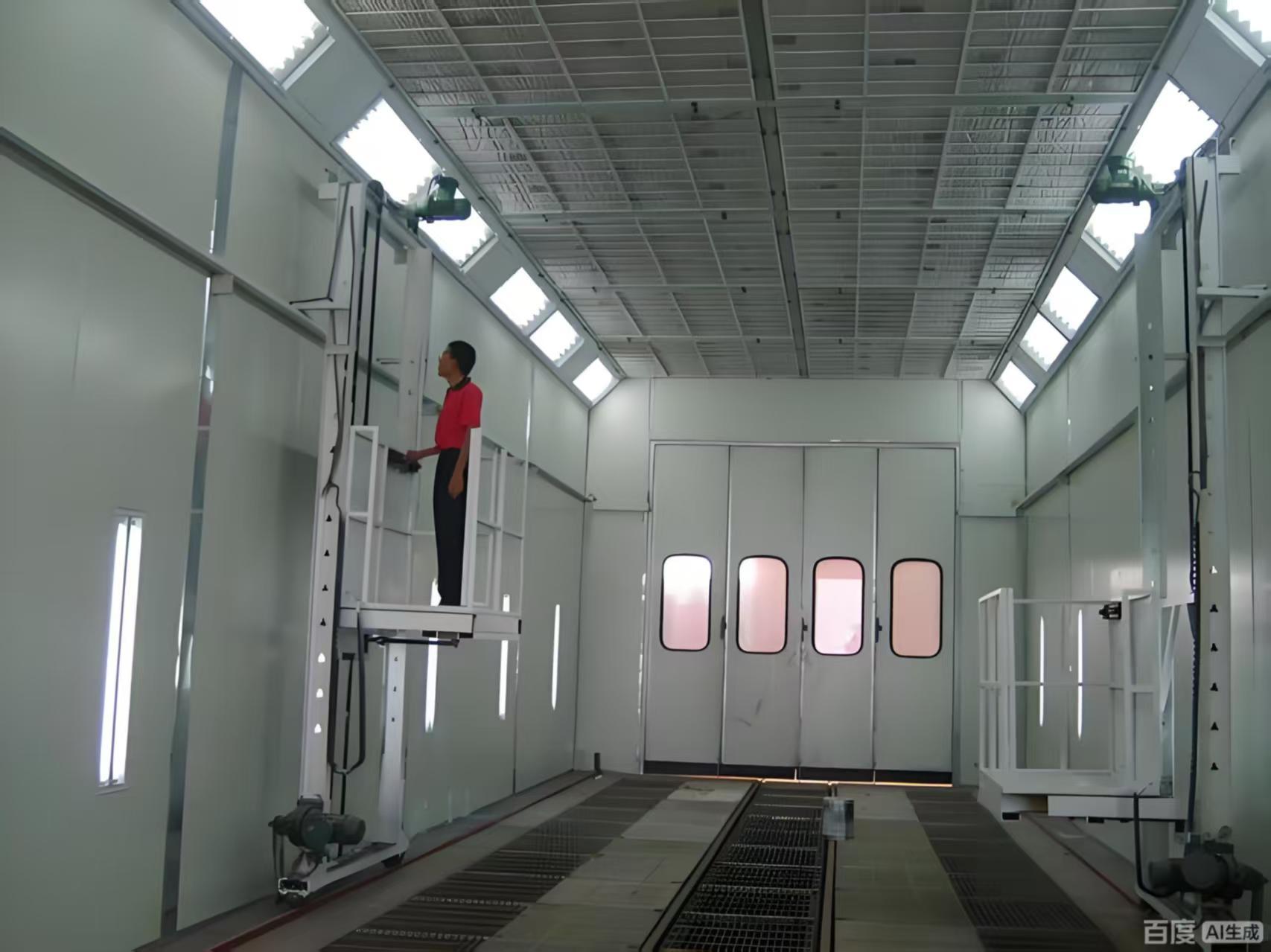

Q: How do painters reach the top of a bus? A: We strongly recommend adding our Pneumatic 3D Man Lift platforms. These travel along the side walls, allowing the painter to reach the roof safely without using ladders.

Q: Can you extend the length to 20 meters or 30 meters? A: Yes. We are the factory. We can modularly extend the booth. For every 7m added, we usually add another air generation group to maintain airflow.

Q: What is the warranty on the motors? A: We offer a 2-year warranty on the main intake and exhaust motors.

Industrial Large Truck Spray Paint Booth | 15m Bus Painting Oven | Heavy Duty Commercial Chamber 4

Industrial Large Truck Spray Paint Booth | 15m Bus Painting Oven | Heavy Duty Commercial Chamber 5

Industrial Large Truck Spray Paint Booth | 15m Bus Painting Oven | Heavy Duty Commercial Chamber 6

Industrial Large Truck Spray Paint Booth | 15m Bus Painting Oven | Heavy Duty Commercial Chamber 7
