Model CT-RT-Series Industrial Retractable Mobile Spray Booth

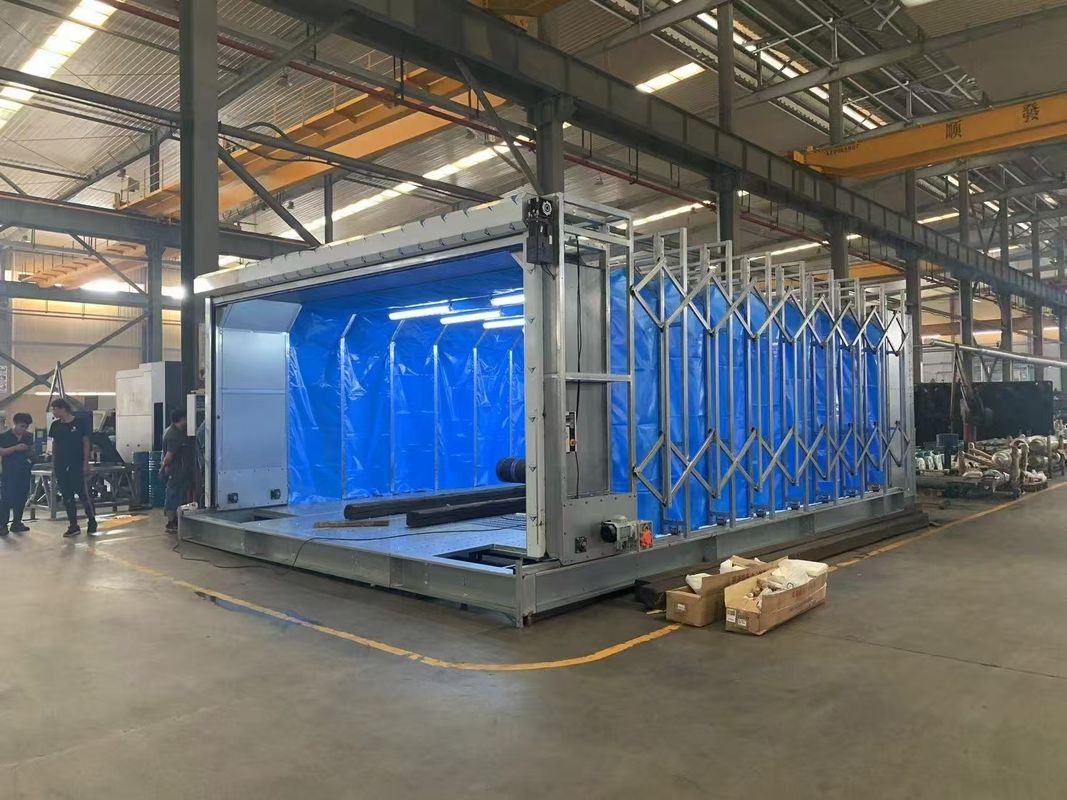

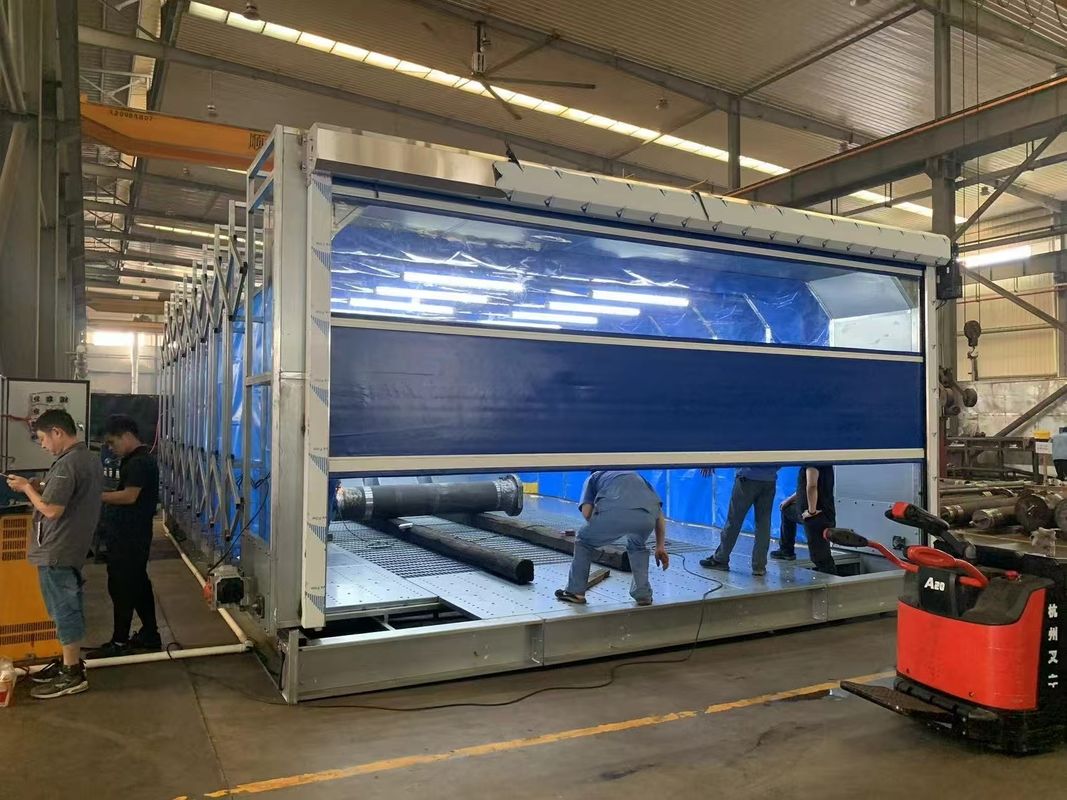

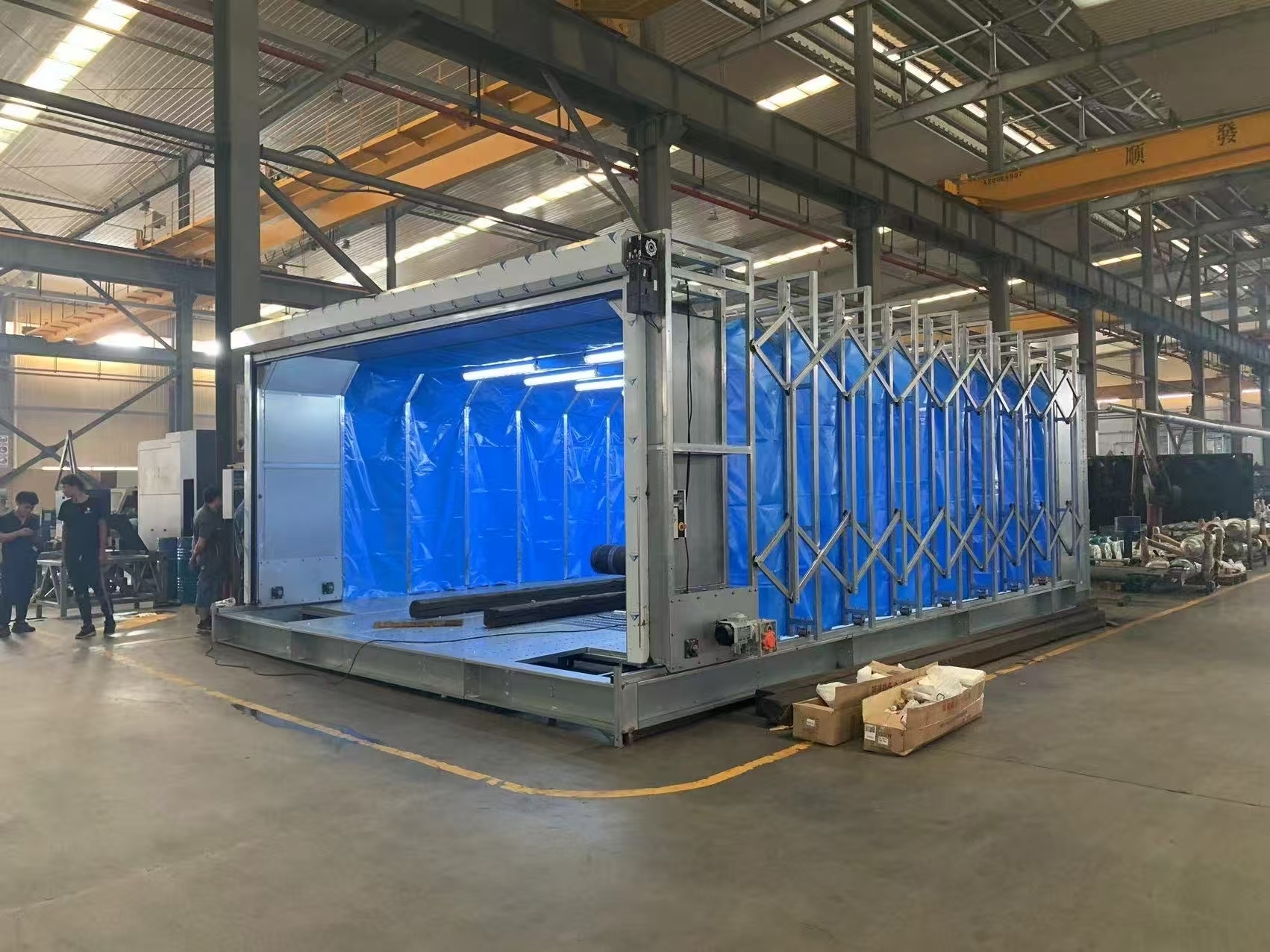

Technical Overview: The CT-RT Series is designed to solve the logistical challenge of moving heavy, oversized components (e.g., transformers, steel structures, ship parts) into a fixed paint booth. This system utilizes a reinforced scissor-structure framework that allows the entire booth to extend over the workpiece for painting and retract to approximately 20% of its length for storage and loading via overhead crane.

Key Engineering Features:

1. Synchronized Drive Mechanism:

   • The extension and retraction are powered by dual explosion-proof gear motors located on either side of the structure.

   • A synchronized chain-drive or steel cable system ensures both sides move at identical speeds to prevent jamming or twisting of the frame during operation.

2. Reinforced Structural Framework:

   • The scissor-action frame is constructed from high-strength galvanized square steel tubing, engineered to withstand industrial use and moderate wind loads in semi-outdoor environments.

3. Industrial Curtain Material:

   • The enclosure is formed by heavy-duty PVC coated fabric. The material is fire-retardant (B1 grade), anti-static, high-tensile strength, and resistant to common paint solvents.

4. Integrated Environmental Control:

   • Even though mobile, the booth includes a rear filter wall with fiberglass paint-stop media and a high-pressure centrifugal exhaust fan to maintain negative pressure and capture overspray.

Technical Specifications Table (Model CT-RT-12M):

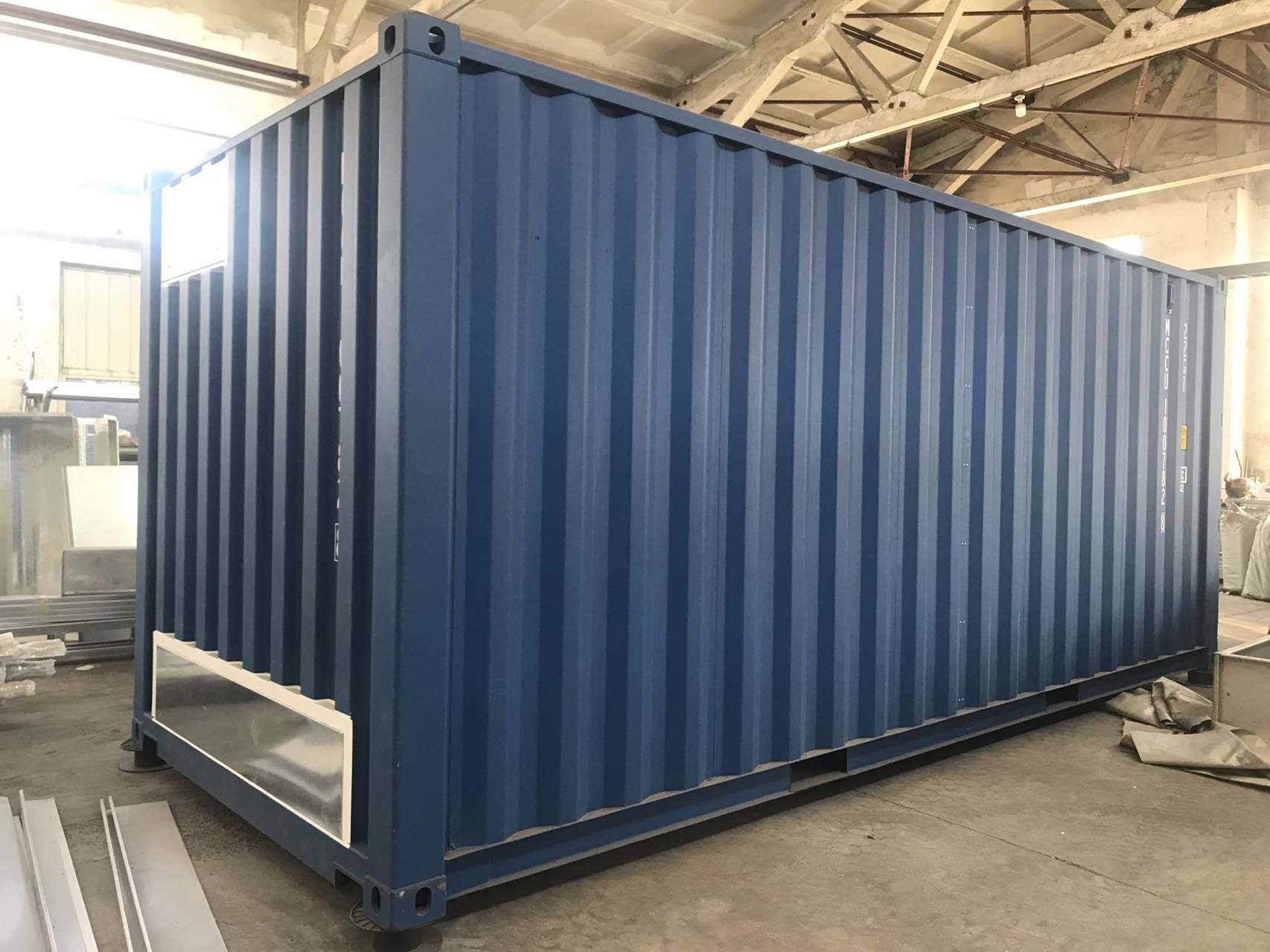

Mobile container spray paint booth for automobiles: the main body of the spray

paint in the middle, the air inlet operation box on the left, and the exhaust filter box

on the right. It is suitable for vehicle maintenance without a fixed site.

Configuration table of automobile mobile container spray paint room
