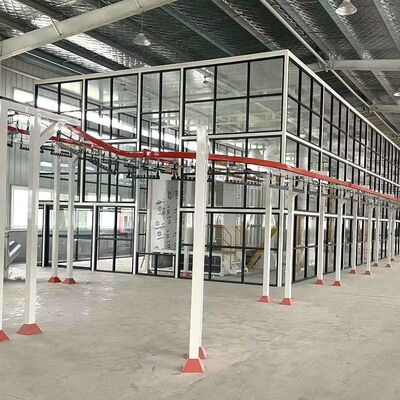

Overhead Conveyor Coating Line designed to eliminate manual handling maximize throughput and ensure consistent powder coating

MOQ: 1
Price: USD2000-USD10000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 500SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
OCCL-21
Warranty:
1 Year
Control System:
PLC
Material:
Steel
Conveyor Load Capacity:
Up To 500kg
Conveyor Speed:
Adjustable
Coating Color:
Customizable
Heating Method:
Electric/ Gas/ Infrared
Power Supply:
AC 380V/50Hz
Type:
Continuous Coating Line
Conveyor Type:
Overhead Conveyor
Cooling Method:
Air/ Water
Heating Temperature:
Adjustable
Cooling Time:
Adjustable
Coating Type:
Powder Coating
Highlight:

Overhead Conveyor Coating Line for powder coating

,

Automated overhead conveyor coating system

,

High throughput powder coating conveyor line

Product Description

Overview:

The CoatTech Full-Automatic Overhead Conveyor Line is a closed-loop system designed for high-volume manufacturing. This system integrates surface preparation, moisture drying, powder application, and high-temperature curing into a single continuous process. It eliminates manual handling, maximizes throughput, and ensures consistent coating quality for complex workpieces.



Core Features:

  • Continuous Production: The QXG-Series suspension chain conveyor runs continuously, allowing for seamless loading and unloading without stopping the line.

  • Intelligent Control: Operated via a central PLC touch screen (Siemens/Mitsubishi) with VFD speed control ($0-5$ m/min adjustable).

  • High-Efficiency Recovery: Equipped with a Mono-Cyclone + After-filter recovery system, achieving a powder recovery rate of 98%+ and enabling color changes in under 15 minutes.

  • Energy Efficiency: The curing tunnel utilizes a unique "air return" design and high-density rock wool insulation to minimize heat loss.

Technical Specifications:

  • Conveyor Model: Heavy Duty QXG-250 or Standard QXG-150 (Customized to workpiece weight).

  • Drive Unit: Frequency conversion speed regulation; Safety overload protection included.

  • Spray Gun System: Automatic Reciprocators with multi-axis movement; includes auto-guns and manual touch-up stations.

  • Heating Source: Natural Gas (Riello Burner), LPG, or Electric Infrared.

  • Curing Temp: Adjustable $180^circtext{C} - 220^circtext{C}$ (Max $250^circtext{C}$).

Applications:

Automotive parts, aluminum profiles, home appliances (white goods), metal fencing, and racking systems.



Technical Specifications Table (Typical Line Configuration):

Parameter Economic Series (Start-up) Performance Series (High-Volume) Customized Options
Conveyor Model QXG-150 (Max load 30kg/hanger) QXG-250 (Max load 50-80kg/hanger) Heavy Duty I-Beam / Power & Free
Line Speed $0.5 - 2.5$ meters/min (Adjustable) $1.0 - 5.0$ meters/min (VFD Control) High Speed / Step-Index
Powder Recovery Cartridge Filter Recovery (95%) Mono-Cyclone + After Filter (98%+) Multi-Cyclone / Magic Center
Color Change Time Approx. 30 - 45 mins Approx. 10 - 15 mins < 10 mins (Fast Color Change)
Spray Guns Manual Spray Station (2-4 units) Automatic Reciprocator + 4-12 Auto Guns Wagner / Gema / Nordson integration
Pre-treatment Offline / Manual Dip Tank Online Automatic Spray (3-5 Stages) Stainless Steel Tunnel / Silane
Curing Oven Bridge Type (Heat lock) Bridge or Tunnel Type IR Booster Pre-heating
Heating Source Electric / LPG Natural Gas / Diesel Infrared / Biomass
Control System Analog Panel PLC + Touch Screen (HMI) Remote Monitoring / SCADA

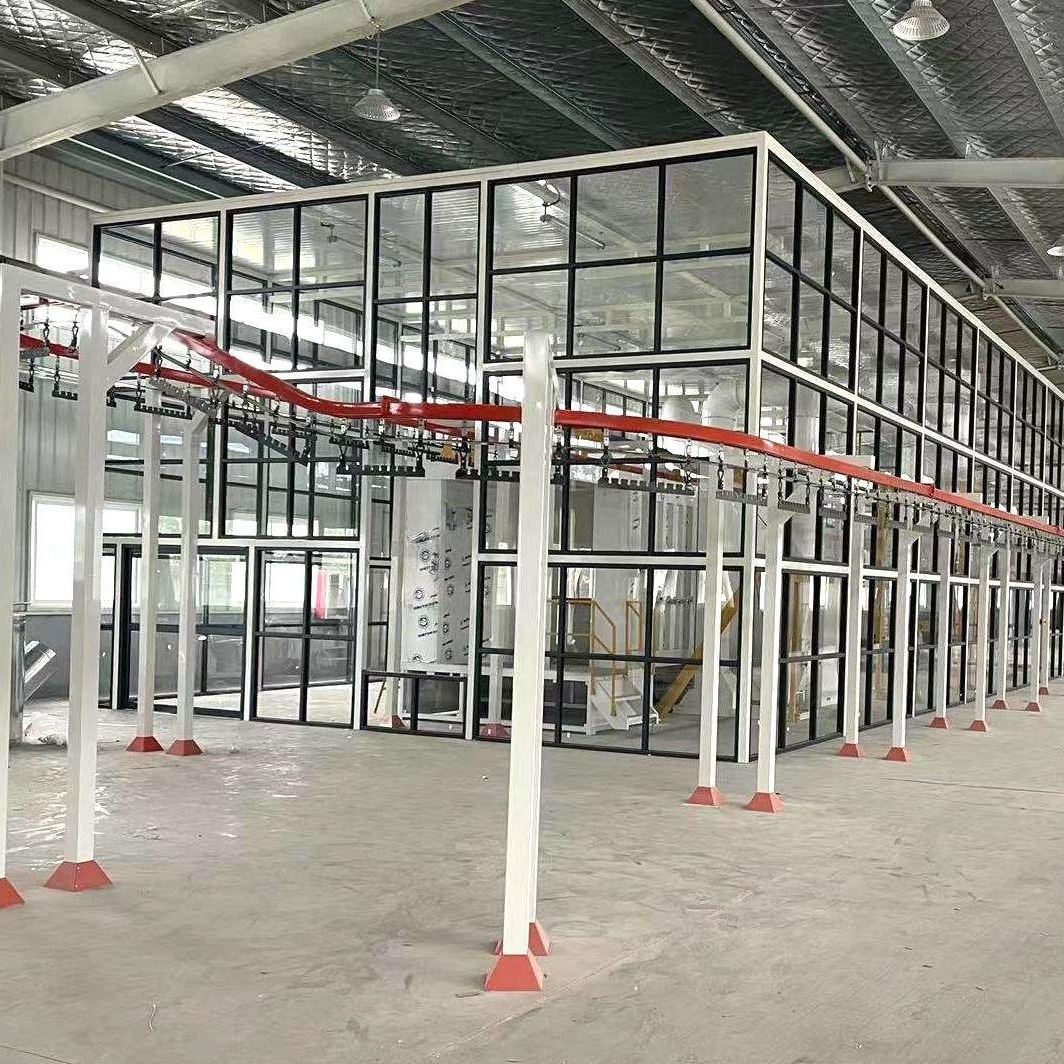

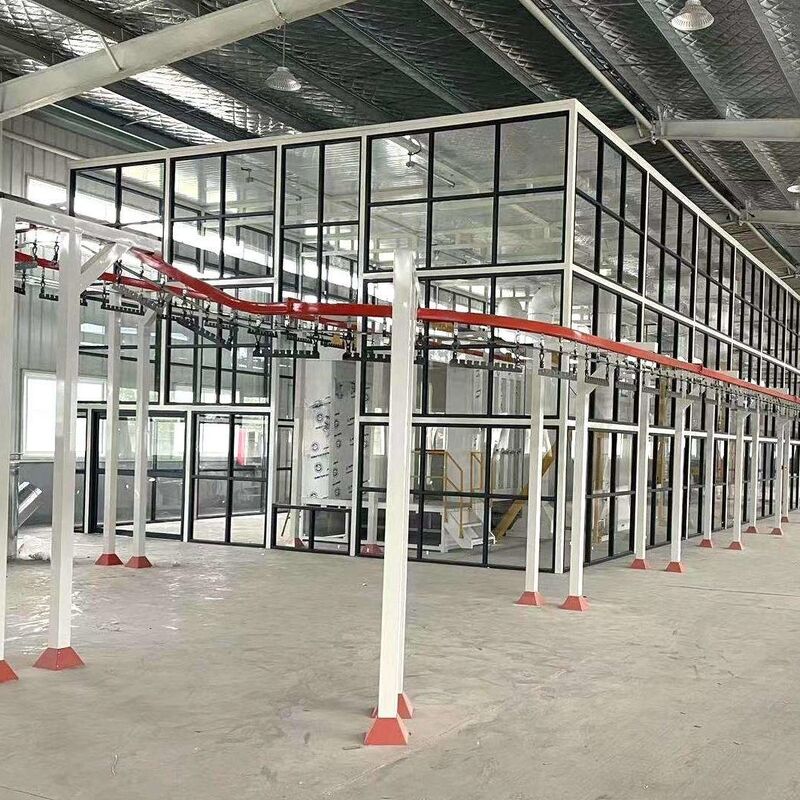

Overhead Conveyor Coating Line designed to eliminate manual handling maximize throughput and ensure consistent powder coating 0Overhead Conveyor Coating Line designed to eliminate manual handling maximize throughput and ensure consistent powder coating 1

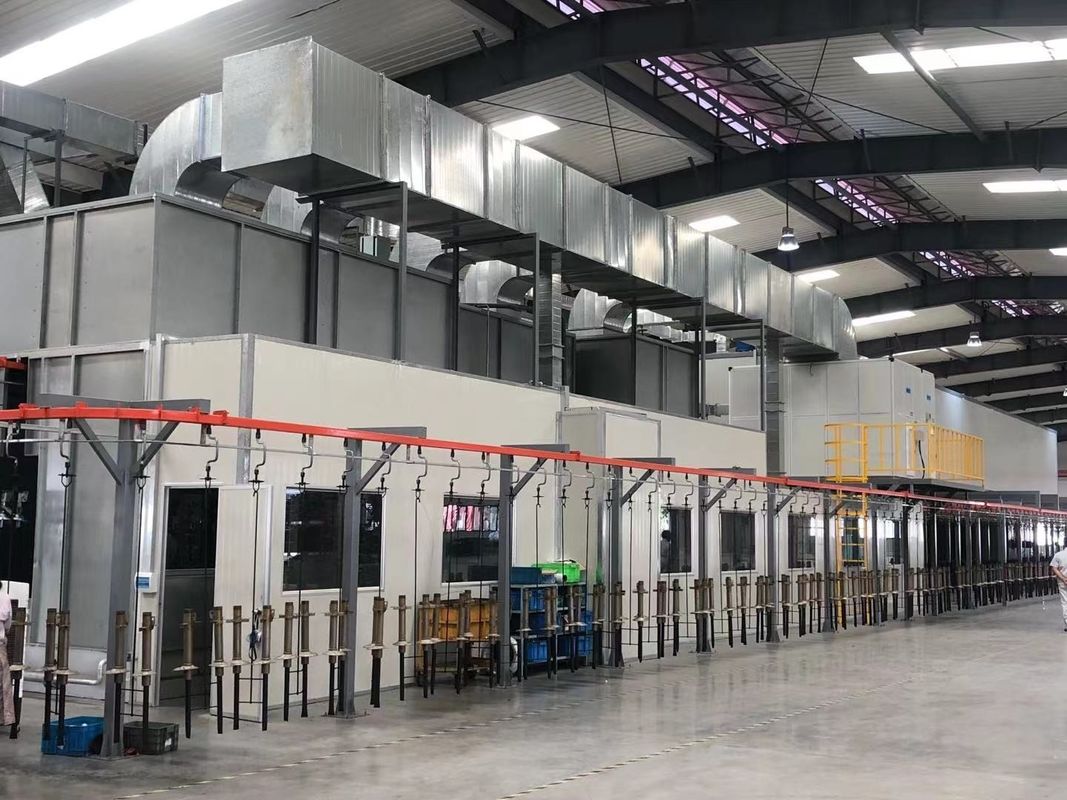

Overhead Conveyor Coating Line designed to eliminate manual handling maximize throughput and ensure consistent powder coating 2

Tags:

custom overhead conveyor coating line,

1ph overhead conveyor system,

motor line tech coating solutions
