Series Premium Down-Draft Automotive Spray Booth for high-gloss finishes

MOQ:	1
Price:	USD5200-USD10000/SET
Standard Packaging:	With regular Film and Carton
Delivery Period:	15 DAYS After Deposit
Payment Method:	T/T, MoneyGram, Western Union, D/A
Supply Capacity:	50SET/MONTH

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

CoatTech

Certification

Model Number

CT-WC-4001

NAME:

CT-WC-4000 (4 Meter Width)

Power Supply:

380V/50HZ/3Ph Or Other Option

Using Energy:

Gas /Diesel/ IR

Main Door:

Fold Style

Motor:

Chinese Brand Or Import Brand

Control Sytem:

Switch Style Or PLC Touch Screen Control

Wall:

Metal Sheld,EPS,Rock Wool Of PU For Option

Color:

White Or Other Option

Application:

Car Painting

Energy Sources:

GAS/Eletric/Diesel

Coating:

10-50um

Dimention:

7000 X 5350 X 3400 Mm

Highlight:

Premium down-draft automotive spray booth

High-gloss finish spray booth

Automotive paint spray booth with warranty

Product Description

Overview:

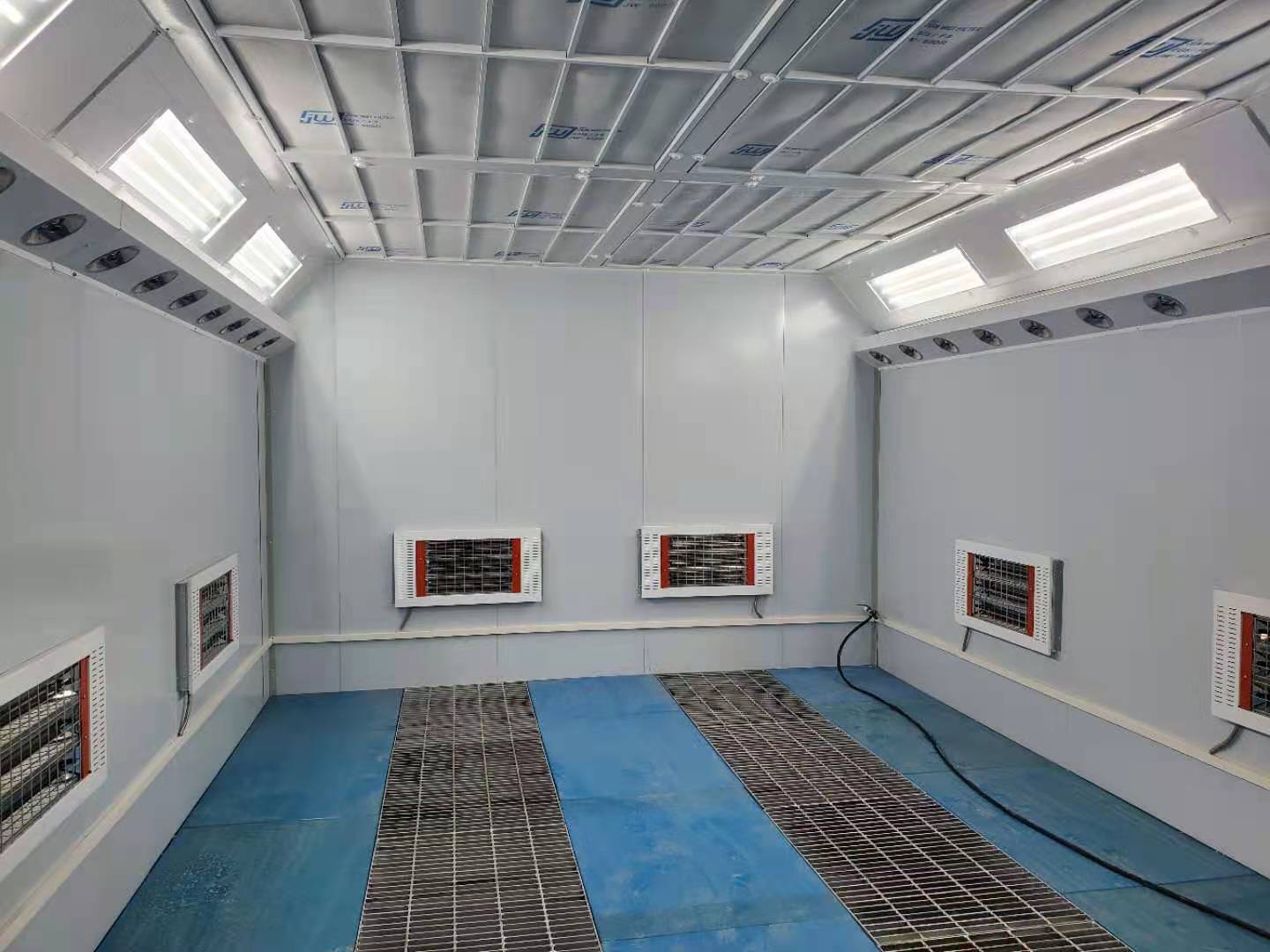

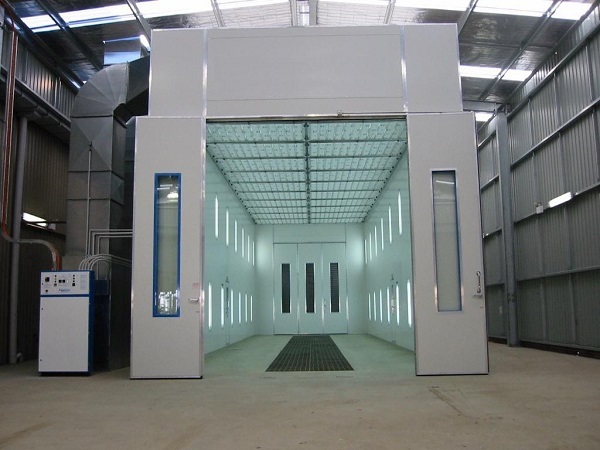

Engineered for the highest standard of automotive refinishing, the CoatTech Premium Down-Draft Booth creates a dust-free environment essential for high-gloss finishes. The vertical airflow design pushes overspray downward through floor grates, preventing mist from settling on the painted surface and ensuring operator safety.

Core Features:

Full Pneumatic Ramp/Basement: Available with a raised metal basement (no excavation needed) or a pit-style installation for flush entry.
Shadowless Lighting: Features angled ceiling lights and waist-level side lights ( $>1000$ Lux) to reveal surface imperfections and ensure accurate color matching.
Dual-Mode Operation: One-touch switching between "Painting" (fresh air intake) and "Baking" (hot air circulation) modes.
Triple Filtration:
1. Pre-filter: Captures large dust particles.
2. Ceiling Filter: High-efficiency EU5 mats for fine diffusion.
3. Floor Filter: Fiberglass paint-stop mats to capture overspray.

Technical Specifications Table (Model CT-WC-4000):

Parameter	Standard Model (CT-AUTO-S)	Luxury Model (CT-AUTO-L)	Custom Options
Internal Dimensions	L6.9m $times$ W3.9m $times$ H2.7m	L7.0m $times$ W4.0m $times$ H2.8m	Height extended for SUVs/Vans
Airflow Type	Full Downdraft	Full Downdraft	Semi-downdraft / Cross-draft
Air Velocity	$0.25 - 0.30$ m/s (Loaded)	$0.30 - 0.35$ m/s (Loaded)	Variable Frequency Drive (Inverter)
Basement	300mm Metal Basement (Ramps)	350mm Metal Basement (Full Grating)	Pit Style (Flush with floor)
Wall Panels	50mm EPS (Polystyrene)	50mm / 75mm Rockwool (Fireproof)	Skin plate thickness 0.6mm
Heating System	Riello G20 Diesel Burner	Riello FS20 Gas Burner / Direct Fire	Electric Heating
Baking Temp	$60^circtext{C} - 80^circtext{C}$	$60^circtext{C} - 80^circtext{C}$	Faster ramp-up time
Lighting	Ceiling Lights (32 tubes)	Ceiling + Side Lights (60+ tubes)	High CRI LED Upgrade
Filtration	Pre-filter + Ceiling Filter	Pre, Ceiling, Floor + Carbon Exhaust	Waterborne Paint Nozzles
Total Power	Approx. 10 kW	Approx. 15 kW	Dependent on heating type

Series Premium Down-Draft Automotive Spray Booth for high-gloss finishes 0

FAQ
1,Who are we?
CoatTech Intelligent Equipment(Guangzhou) CO.,LTD is a professional enterprise that produces environmental
protection equipment.

2,How do we ensure quality?
Always conduct final inspection before shipment.

3,What can you buy from us?
The main product is spray booth,coating line,painting line.

4,Why do you want to purchase from us instead of other suppliers?
We have been specializing in the production of environmental protection equipment for many years, and are a manufacturer
of environmental protection equipment that integrates design, research and development, production, and after-sales service.

5,What services can we provide?
Accepted delivery methods: FOB, CFR, CIF, EXW, CIP; Accepted payment currencies: USD, EUR, AUD, RMB;
Accepted payment methods: wire transfer, letter of credit, cash.

6,What is your delivery date?
Normally, we will send you our standard specification goods within 10-15 days after receiving your payment.
This depends on the quantity you order.

7,Can you design the artwork(design) according to our requirements?
Of course we can. All products can be customized according to your own design.

8,Are you a factory or a trading company?
We are a factory with our own design and production, and competitive price advantages.

9,Where is your factory located?
Guangzhou City,Guangdong Province, China.

10. How do I get there?
About half an hour's drive from Guangzhou International Airport. Welcome friends from all over the world to our factory.

Series Premium Down-Draft Automotive Spray Booth for high-gloss finishes 4

WHY CHOOSE US

CoatTech Intelligent Equipment(Guangzhou) CO.,LTD is located in Guangzhou City, Guangdong Province.
It is one of the largest environmental protection equipment manufacturers in northern China with 15 years of
industry experience.Our company focuses on the research and development, production, sales, and after-sales
of environmental protection equipment. Since its establishment, the company has always adhered to the service
concept of putting service first, seeking survival through quality, and seeking development through technological
innovation. Adhere to customer-centric approach and conscientiously ensure the quality of every device.
Previously exported to countries such as Maldives, Japan, the United States, Thailand, etc.

Peace Environmental Protection always adheres to the core principle of "quality first, honest service" and provides
excellent solutions for customers in the field of environmental protection equipment. The factory is located in
Guangzhou City, Guangdong Province.
.
The company's main products include environmental protection equipment such as spray booth,coating line,painting line
and waste gas and wastewater treatment,if you have any inquiry,please leave the inquiry here directly,will be respond to you within 12 hours
We will make the exact Design Drawing,Design Case in words,and Quotation in detail,just waiting for you leave the message here.
