| Place of Origin: | China |
|---|---|
| Brand Name: | CoatTech |
| Certification: | CE |
| Model Number: | CT-WC-4002 |
| Minimum Order Quantity: | 1 |
| Price: | USD5200-USD10000/SET |
| Packaging Details: | With regular Film and Carton |
| Delivery Time: | 15 DAYS After Deposit |
| Payment Terms: | T/T, MoneyGram, Western Union, D/A |
| Supply Ability: | 50SET/MONTH |
| NAME: | CT-WC-4000 (4 Meter Width) | Power Supply: | 380V/50HZ/3Ph Or Other Option |
|---|---|---|---|
| Using Energy: | Gas /Diesel/ IR | Main Door: | Fold Style |
| Motor: | Chinese Brand Or Import Brand | Control Sytem: | Switch Style Or PLC Touch Screen Control |
| Wall: | Metal Sheld,EPS,Rock Wool Of PU For Option | Color: | White Or Other Option |
| Application: | Car Painting | Energy Sources: | GAS/Eletric/Diesel |
| Coating: | 10-50um | Dimention: | 7000 X 5350 X 3400 Mm |
| Highlight: | Spray booth with one touch switching,Spray booth with shadowless lighting,Precision spray booth for painting |
||
Overview
Engineered for the highest standard of automotive refinishing, the CoatTech Premium Down-Draft Booth creates a dust-free environment essential for high-gloss finishes. The vertical airflow design pushes overspray downward through floor grates, preventing mist from settling on the painted surface and ensuring operator safety.
Core Features
Full Pneumatic Ramp/Basement: Available with a raised metal basement (no excavation needed) or a pit-style installation for flush entry.

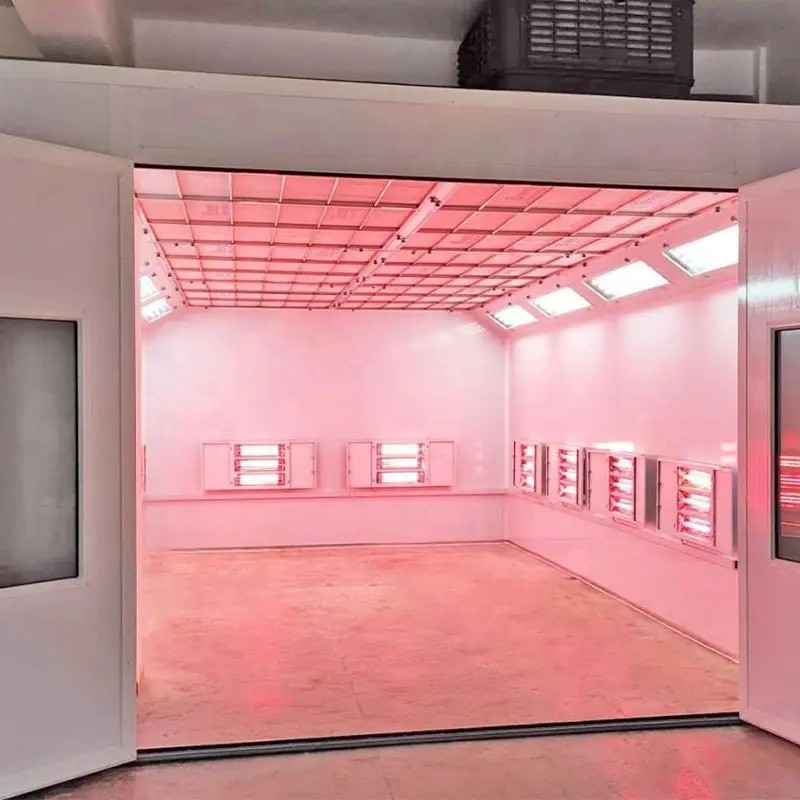

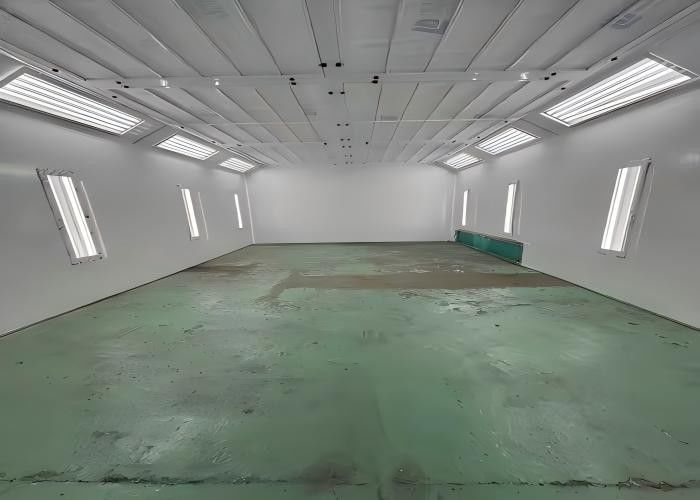

Shadowless Lighting: Features angled ceiling lights and waist-level side lights (>1000 Lux) to reveal surface imperfections and ensure accurate color matching.
Dual-Mode Operation: One-touch switching between "Painting" (fresh air intake) and "Baking" (hot air circulation) modes.
Triple Filtration: Includes Pre-filter (large dust), Ceiling Filter (EU5 fine diffusion), and Floor Filter (fiberglass paint-stop).
Technical Specifications Table (Model CT-WC-4000):
| Parameter | Standard Model (CT-AUTO-S) | Luxury Model (CT-AUTO-L) | Custom Options |
| Internal Dimensions | L 6.9m x W 3.9m x H 2.7m | L 7.0m x W 4.0m x H 2.8m | Height extended for SUVs/Vans |
| Airflow Type | Full Downdraft | Full Downdraft | Semi-downdraft / Cross-draft |
| Air Velocity | 0.25 - 0.30 m/s (Loaded) | 0.30 - 0.35 m/s (Loaded) | Variable Frequency Drive (Inverter) |
| Basement | 300mm Metal Basement (Ramps) | 350mm Metal Basement (Full Grating) | Pit Style (Flush with floor) |
| Wall Panels | 50mm EPS (Polystyrene) | 50mm / 75mm Rockwool (Fireproof) | Skin plate thickness 0.6mm |
| Heating System | Riello G20 Diesel Burner | Riello FS20 Gas Burner / Direct Fire | Electric Heating |
| Baking Temp | 60°C - 80°C | 60°C - 80°C | Faster ramp-up time |
| Lighting | Ceiling Lights (32 tubes) | Ceiling + Side Lights (60+ tubes) | High CRI LED Upgrade |
| Total Power | Approx. 10 kW | Approx. 15 kW | Dependent on heating typ |
![]()
