Automated Overhead Conveyor Powder Coating Line System with Cyclone Recovery & Tunnel Oven

MOQ:	1
Price:	USD2000-USD10000/SET
Standard Packaging:	With regular Film and Carton
Delivery Period:	15 DAYS After Deposit
Payment Method:	T/T
Supply Capacity:	500SET/MONTH

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

CoatTech

Certification

Model Number

OCCL-31

Warranty:

1 Year

Control System:

Material:

Steel

Conveyor Load Capacity:

Up To 500kg

Conveyor Speed:

Adjustable

Coating Color:

Customizable

Heating Method:

Electric/ Gas/ Infrared

Power Supply:

AC 380V/50Hz

Type:

Continuous Coating Line

Conveyor Type:

Overhead Conveyor

Cooling Method:

Air/ Water

Heating Temperature:

Adjustable

Cooling Time:

Adjustable

Coating Type:

Powder Coating

Highlight:

automated overhead conveyor powder coating system

powder coating line with cyclone recovery

overhead conveyor coating system with tunnel oven

Product Description

Automated Overhead Conveyor Powder Coating Line System with Cyclone Recovery & Tunnel Oven

Overview

The CoatTech Automated Conveyor Line is a high-performance turnkey solution engineered for continuous mass production. This fully integrated system combines automated pre-treatment, moisture drying, electrostatic powder coating, and thermal curing into one seamless loop. Designed to reduce labor costs and maximize throughput, it delivers a consistent, high-quality finish for industries ranging from automotive to home appliances.

Core Features

Continuous Loop System: The QXG-Series suspension chain conveyor operates non-stop, allowing for efficient loading and unloading without interrupting the coating process.
Precision Control: Managed by a central PLC Touch Screen (HMI) with Variable Frequency Drives (VFD) for accurate speed synchronization (0-6 m/min).
Rapid Color Change: Features a Mono-Cyclone + After-filter recovery system capable of 98%+ powder recovery, allowing color switches in under 15 minutes.
Thermal Efficiency: The tunnel curing oven employs a "bottom-feed, top-return" airflow design with high-density rock wool insulation to minimize energy consumption.

Technical Specification Sheet

Parameter	Standard Series (Start-up)	High-Performance Series	Customized Options
Conveyor Chain Model	QXG-150 (Light Duty)	QXG-250 (Heavy Duty)	Heavy I-Beam / Power & Free
Single Point Load	Max 30kg per hanger	Max 50-80kg per hanger	100kg - 500kg+
Line Speed	0.5 - 3.0 m/min (Adjustable)	1.0 - 6.0 m/min (VFD)	Step-Index / High Speed
Drive Unit Power	1.5 kW - 2.2 kW	3.0 kW - 5.5 kW	Drive Redundancy
Powder Recovery	Cartridge Filter (95% rate)	Mono-Cyclone + Filter (98%+)	Magic Center / Multi-Cyclone
Spray Guns	Manual Stations (2-4 units)	Reciprocator + 8-12 Auto Guns	Integration (Gema/Wagner)
Curing Temp	180°C - 200°C	180°C - 220°C	High Temp (250°C+)
Heating Source	LPG / Electric Infrared	Natural Gas / Diesel Burner	Biomass / Steam
Total Installed Power	Approx. 30 - 60 kW	Approx. 80 - 150 kW	Dependent on config

Applications:

Automotive parts, aluminum profiles, home appliances (white goods), metal fencing, and racking systems.

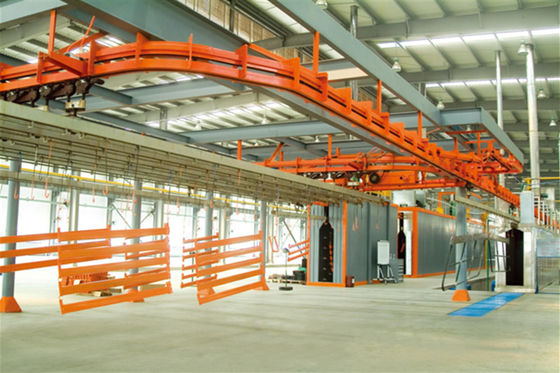

Automated Overhead Conveyor Powder Coating Line System with Cyclone Recovery & Tunnel Oven 0

Automated Overhead Conveyor Powder Coating Line System with Cyclone Recovery & Tunnel Oven 4
