Name: Complete Turnkey Automated Overhead Conveyor Powder Coating Line with Tunnel Oven & Cyclone Recovery
Brand: CoatTech Intelligent Equipment(Guangzhou) CO.,LTD
SKU: OCCL-32
Price: 6,000.00 USD
Availability: InStock

Complete Turnkey Automated Overhead Conveyor Powder Coating Line with Tunnel Oven & Cyclone Recovery

Basic Information

Place of Origin:	China
Brand Name:	CoatTech
Certification:	CE
Model Number:	OCCL-32

Minimum Order Quantity:	1
Price:	USD2000-USD10000/SET
Packaging Details:	With regular Film and Carton
Delivery Time:	15 DAYS After Deposit
Payment Terms:	T/T
Supply Ability:	500SET/MONTH

Contact Now

Warranty:

1 Year

Control System:

PLC

Material:

Steel

Conveyor Load Capacity:

Up To 500kg

Conveyor Speed:

Adjustable

Coating Color:

Customizable

Heating Method:

Electric/ Gas/ Infrared

Power Supply:

AC 380V/50Hz

Type:

Continuous Coating Line

Conveyor Type:

Overhead Conveyor

Cooling Method:

Air/ Water

Heating Temperature:

Adjustable

Cooling Time:

Adjustable

Coating Type:

Powder Coating

Highlight:

automated overhead conveyor coating line

powder coating line with tunnel oven

cyclone recovery powder coating system

Complete Turnkey Automated Overhead Conveyor Powder Coating Line with Tunnel Oven & Cyclone Recovery

Overview

The CoatTech Automated Conveyor Line is our flagship solution for high-volume manufacturing. This closed-loop system seamlessly integrates pre-treatment, moisture drying, electrostatic powder application, and thermal curing. Designed for versatility, we offer specific configurations for light parts (lighting/electronics) up to heavy industrial components (agricultural machinery), ensuring maximum throughput and a consistent finish.

Core Features

Continuous Production Flow: QXG-Series suspension chain conveyor eliminates manual handling and increases output by 300% compared to batch systems.
Advanced Control Architecture: Centralized PLC (HMI) control with VFD speed synchronization prevents line jams and ensures even coating thickness.
Rapid Color Switch: Our Mono-Cyclone recovery system allows for 98% powder recovery and color changes in under 15 minutes.
Energy Efficient Curing: The tunnel oven utilizes a "Air-Return" heat lock design to prevent heat escape, reducing fuel consumption by up to 25%.

Technical Specification Sheet

Parameter	Series A: Compact Line (Light Duty)	Series B: Standard Line (General Industry)	Series C: Heavy Duty (Agri/Auto Parts)
Catalog Code	CT-PCL-100	CT-PCL-200	CT-PCL-300
Conveyor Chain	QXG-150 (30kg/hanger)	QXG-200/250 (50kg/hanger)	XT-348 / XT-458 Forged Chain
Max Workpiece Wt	10kg - 30kg	30kg - 80kg	100kg - 500kg+
Line Speed	0.5 - 2.5 m/min	1.0 - 5.0 m/min (VFD)	0.5 - 3.0 m/min (High Torque)
Powder Booth	Cartridge Filter Type	Mono-Cyclone + After Filter	Magic Center / Multi-Cyclone
Spray Gun config	2 Manual Stations	Reciprocator + 8 Auto Guns	Reciprocator + 12-16 Auto Guns
Oven Type	Bridge Oven (Heat Lock)	Tunnel or Bridge Type	Multi-pass Camel Back
Heating Source	Electric IR / LPG	Natural Gas / Diesel	Natural Gas / Biomass
Typical Output	500 - 1000 parts/shift	2000 - 5000 parts/shift	Based on tonnage/surface area

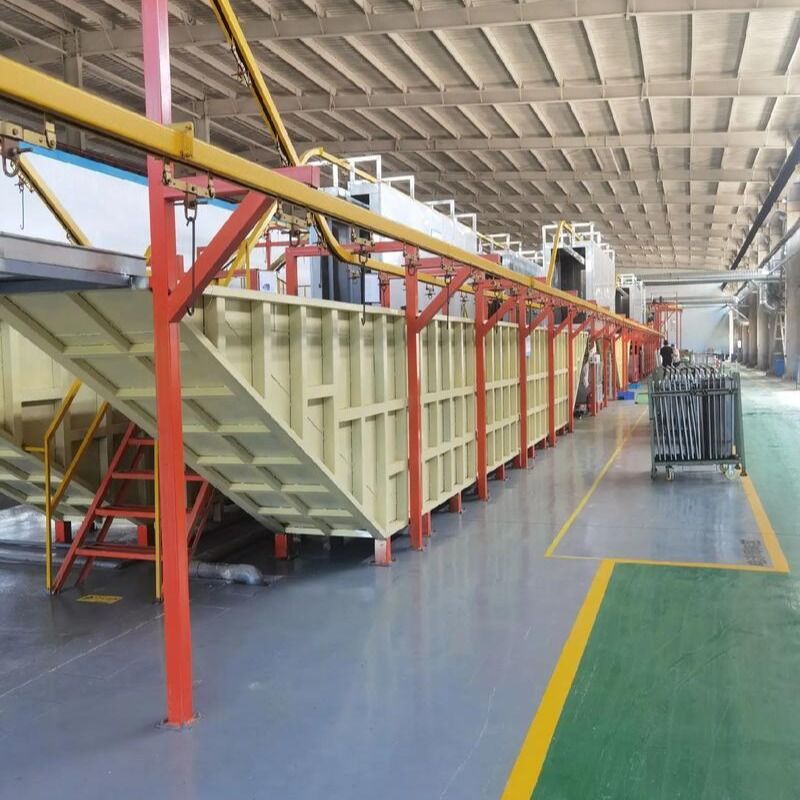

Complete Turnkey Automated Overhead Conveyor Powder Coating Line with Tunnel Oven & Cyclone Recovery 0

Complete Turnkey Automated Overhead Conveyor Powder Coating Line with Tunnel Oven & Cyclone Recovery 2
