Complete Turnkey Automated Overhead Conveyor Powder Coating Line with Tunnel Oven & Cyclone Recovery

MOQ: 1
Price: USD2000-USD10000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 500SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
OCCL-32
Warranty:
1 Year
Control System:
PLC
Material:
Steel
Conveyor Load Capacity:
Up To 500kg
Conveyor Speed:
Adjustable
Coating Color:
Customizable
Heating Method:
Electric/ Gas/ Infrared
Power Supply:
AC 380V/50Hz
Type:
Continuous Coating Line
Conveyor Type:
Overhead Conveyor
Cooling Method:
Air/ Water
Heating Temperature:
Adjustable
Cooling Time:
Adjustable
Coating Type:
Powder Coating
Highlight:

automated overhead conveyor coating line

,

powder coating line with tunnel oven

,

cyclone recovery powder coating system

Product Description

Complete Turnkey Automated Overhead Conveyor Powder Coating Line with Tunnel Oven & Cyclone Recovery



Overview



The CoatTech Automated Conveyor Line is our flagship solution for high-volume manufacturing. This closed-loop system seamlessly integrates pre-treatment, moisture drying, electrostatic powder application, and thermal curing. Designed for versatility, we offer specific configurations for light parts (lighting/electronics) up to heavy industrial components (agricultural machinery), ensuring maximum throughput and a consistent finish.



Core Features

  • Continuous Production Flow: QXG-Series suspension chain conveyor eliminates manual handling and increases output by 300% compared to batch systems.

  • Advanced Control Architecture: Centralized PLC (HMI) control with VFD speed synchronization prevents line jams and ensures even coating thickness.

  • Rapid Color Switch: Our Mono-Cyclone recovery system allows for 98% powder recovery and color changes in under 15 minutes.

  • Energy Efficient Curing: The tunnel oven utilizes a "Air-Return" heat lock design to prevent heat escape, reducing fuel consumption by up to 25%.

Technical Specification Sheet

Parameter Series A: Compact Line (Light Duty) Series B: Standard Line (General Industry) Series C: Heavy Duty (Agri/Auto Parts)
Catalog Code CT-PCL-100 CT-PCL-200 CT-PCL-300
Conveyor Chain QXG-150 (30kg/hanger) QXG-200/250 (50kg/hanger) XT-348 / XT-458 Forged Chain
Max Workpiece Wt 10kg - 30kg 30kg - 80kg 100kg - 500kg+
Line Speed 0.5 - 2.5 m/min 1.0 - 5.0 m/min (VFD) 0.5 - 3.0 m/min (High Torque)
Powder Booth Cartridge Filter Type Mono-Cyclone + After Filter Magic Center / Multi-Cyclone
Spray Gun config 2 Manual Stations Reciprocator + 8 Auto Guns Reciprocator + 12-16 Auto Guns
Oven Type Bridge Oven (Heat Lock) Tunnel or Bridge Type Multi-pass Camel Back
Heating Source Electric IR / LPG Natural Gas / Diesel Natural Gas / Biomass
Typical Output 500 - 1000 parts/shift 2000 - 5000 parts/shift Based on tonnage/surface area

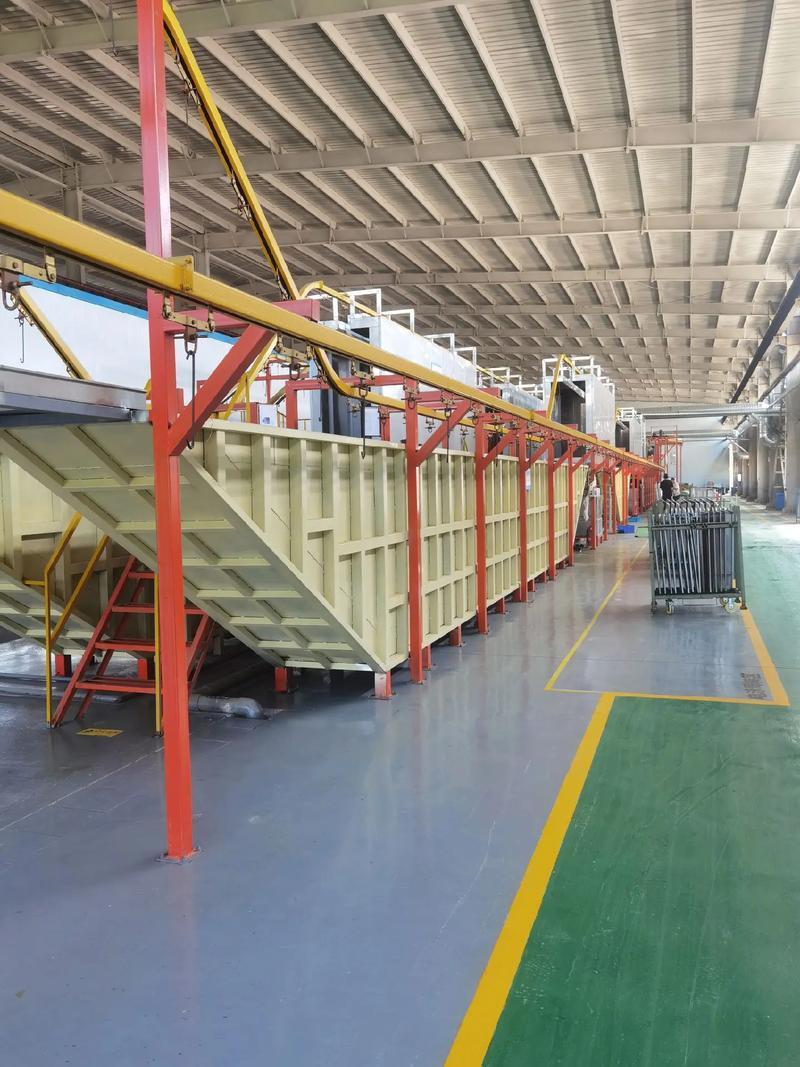

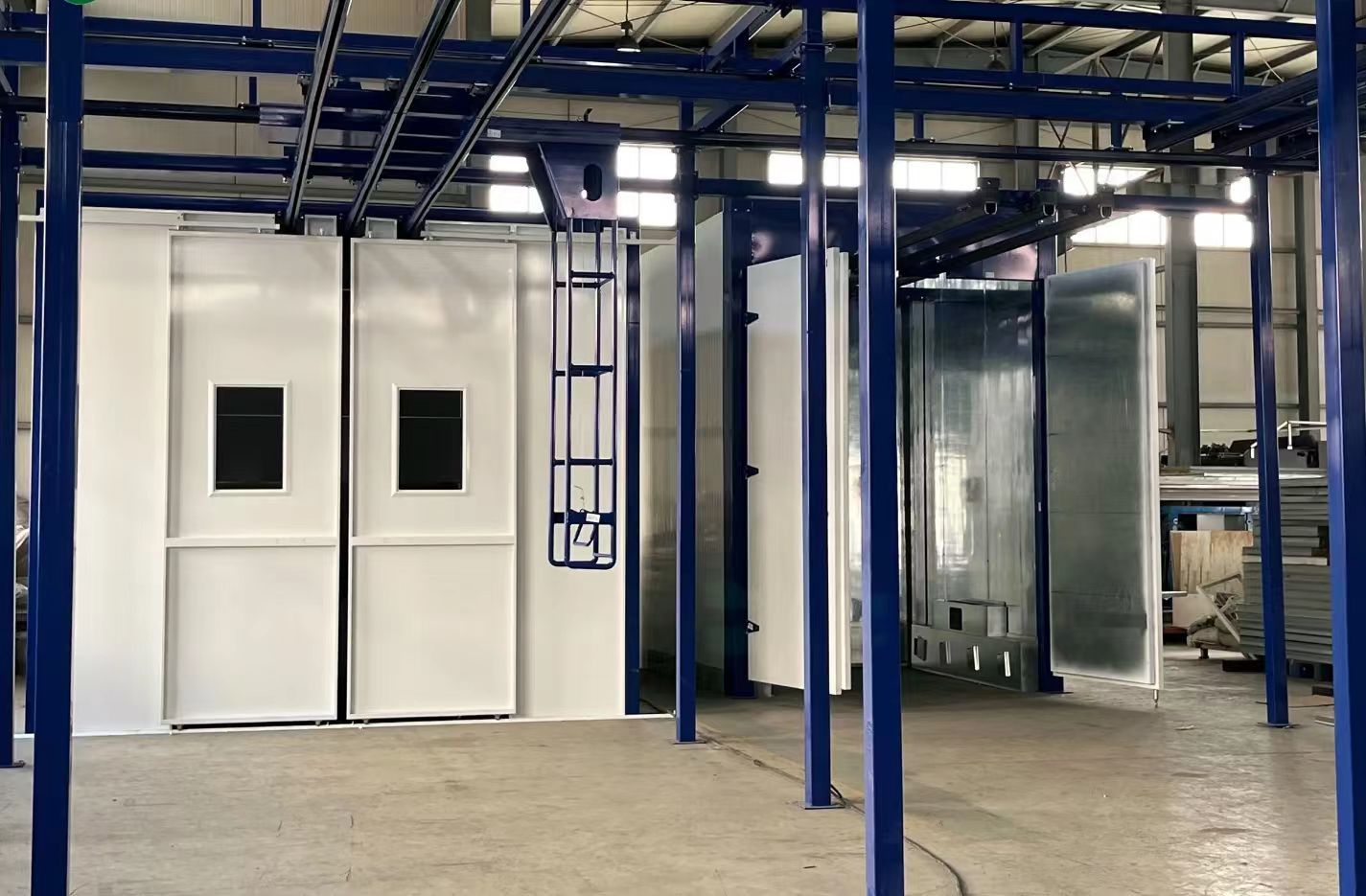

Complete Turnkey Automated Overhead Conveyor Powder Coating Line with Tunnel Oven & Cyclone Recovery 0Complete Turnkey Automated Overhead Conveyor Powder Coating Line with Tunnel Oven & Cyclone Recovery 1

Complete Turnkey Automated Overhead Conveyor Powder Coating Line with Tunnel Oven & Cyclone Recovery 2

Tags:

custom overhead conveyor coating line,

1ph overhead conveyor system,

motor line tech coating solutions
