Overhead Conveyor Coating Line With Energy Curing And Powder Recovery Solutions

MOQ: 1
Price: USD2000-USD10000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 500SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
OCCL-33
Warranty:
1 Year
Control System:
PLC
Material:
Steel
Conveyor Load Capacity:
Up To 500kg
Conveyor Speed:
Adjustable
Coating Color:
Customizable
Heating Method:
Electric/ Gas/ Infrared
Power Supply:
AC 380V/50Hz
Type:
Continuous Coating Line
Conveyor Type:
Overhead Conveyor
Cooling Method:
Air/ Water
Heating Temperature:
Adjustable
Cooling Time:
Adjustable
Coating Type:
Powder Coating
Highlight:

automated powder coating conveyor line

,

overhead conveyor coating line with energy curing

,

powder recovery conveyor coating system

Product Description

Overhead Conveyor Coating Line Combining Automated Powder Coating Technology With Energy Curing And Powder Recovery Solutions



Overview



The foundation of any high-quality coating is proper surface preparation. The CoatTech Automatic Spray Tunnel is an inline system designed to clean, degrease, and chemically treat metal parts before they enter the painting line. Built entirely from non-corrosive materials, this system ensures paint adhesion and prevents corrosion under the coating (creepage).

Core Features

  • Multi-Stage Chemistry: Customizable configurations from 3 stages (Degrease/Rinse/Silane) to 7+ stages (Zinc Phosphating).

  • Corrosion Proof Construction: Tunnel housing, tanks, and piping are fabricated from 304 Stainless Steel or PP (Polypropylene) for acid resistance.

  • Counter-Flow Rinse: Smart water management system reuses water from cleaner stages to earlier stages, reducing water consumption by 30%.

  • Mist Separation: Entrance and exit vestibules equipped with mist separators prevent chemical steam from escaping into the workshop.

Technical Specification Sheet

Parameter Series D: Eco-Spray (3-Stage) Series E: Iron Phosphate (5-Stage) Series F: Zinc/Silane (7-Stage)
Catalog Code CT-PRE-3S CT-PRE-5S CT-PRE-7S
Process Steps Degrease / Rinse / Passivate Degrease / Rinse / Phos / Rinse / Passivate Pre-Deg / Degrease / Rinses / Activation / Phos / Seal
Tunnel Material SUS304 / Polypropylene SUS304 Stainless Steel SUS316L (First Stage)
Spray Nozzles Clip-Eye Adjustable (Plastic) Stainless Steel Quick-Release SS High Pressure
Heating System Electric Immersion Heater Gas Burner + Heat Exchanger Boiler / Steam
Pump Brand Southern / Pentax (CN) Grundfos / CNP (Vertical) Lowara / Grundfos
Conveyor Protection C-Hooks (Gap shield) Floor Shield / Brush Seal External Chain (Overhead)
Tank Insulation 50mm Rockwool 50mm Rockwool Double Wall Insulation
Sludge Removal Manual Filter Bag Oil-Water Separator Filter Press / Bag Filter

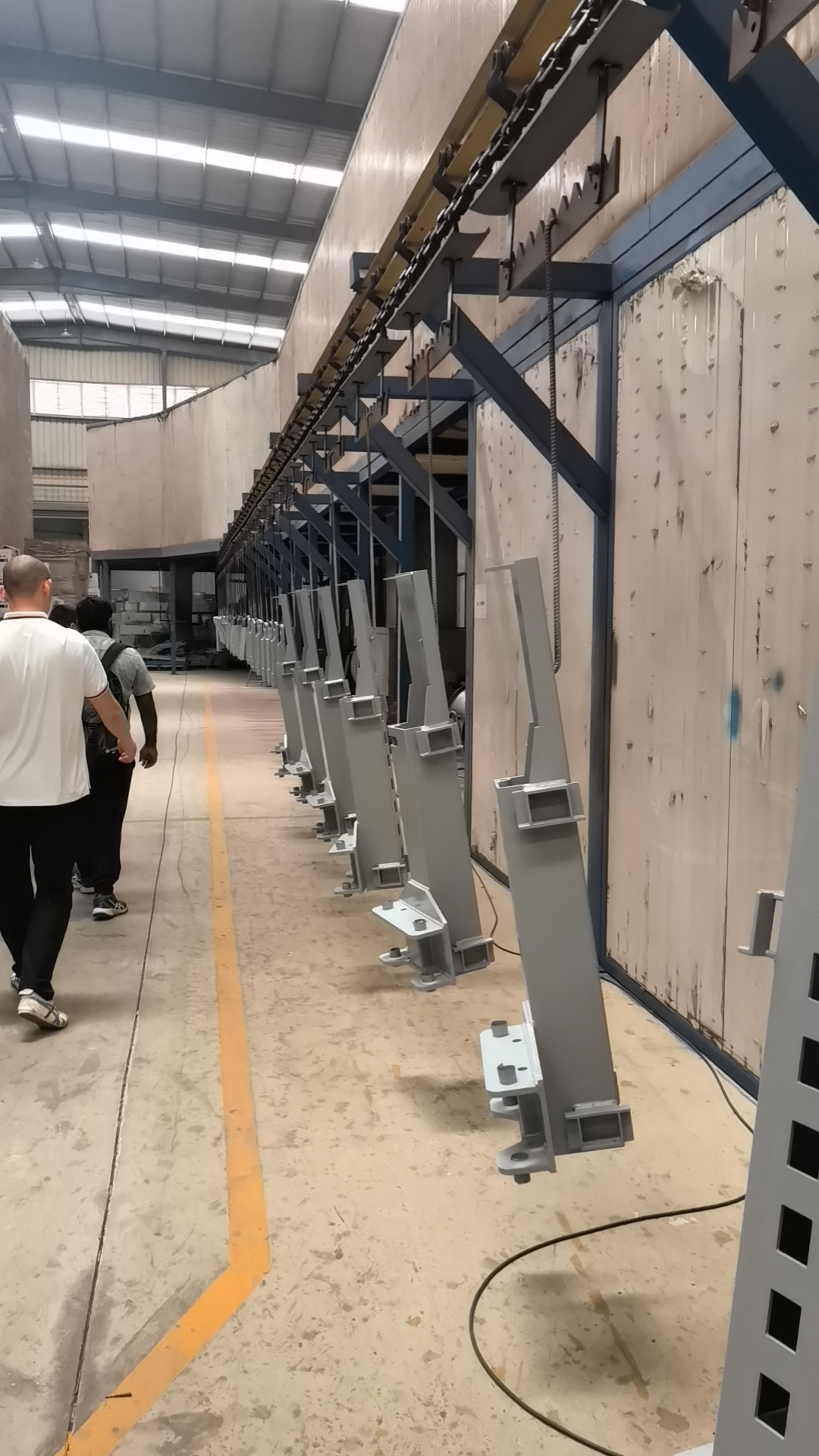

Overhead Conveyor Coating Line With Energy Curing And Powder Recovery Solutions 0

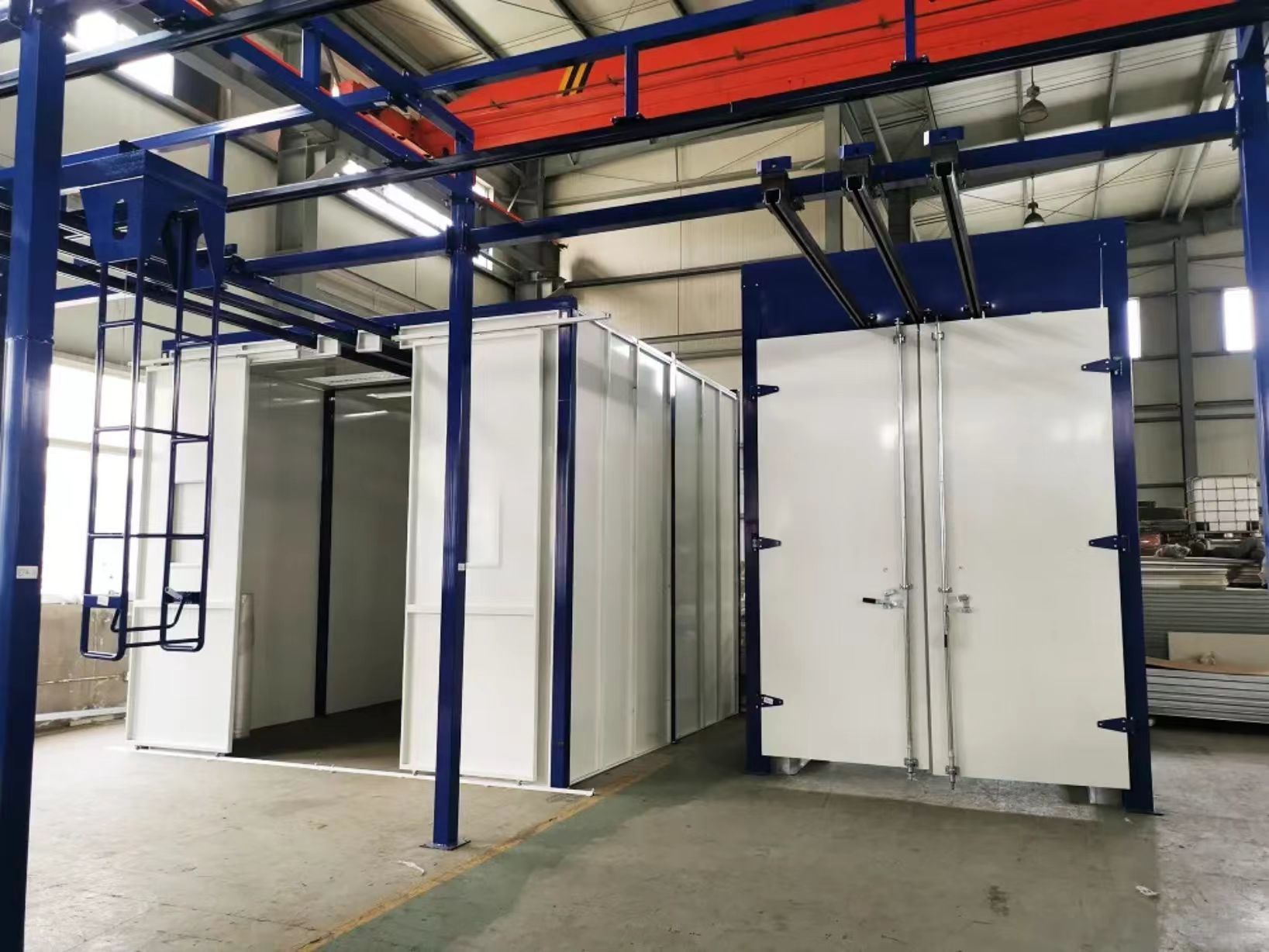

Overhead Conveyor Coating Line With Energy Curing And Powder Recovery Solutions 1
If you have any doubt or idea,please send the inquiry,we will respond to you immediately!
