| Warranty: | 1 Year | Control System: | PLC |
|---|---|---|---|
| Material: | Steel | Conveyor Load Capacity: | Up To 500kg |
| Conveyor Speed: | Adjustable | Coating Color: | Customizable |
| Heating Method: | Electric/ Gas/ Infrared | Power Supply: | AC 380V/50Hz |

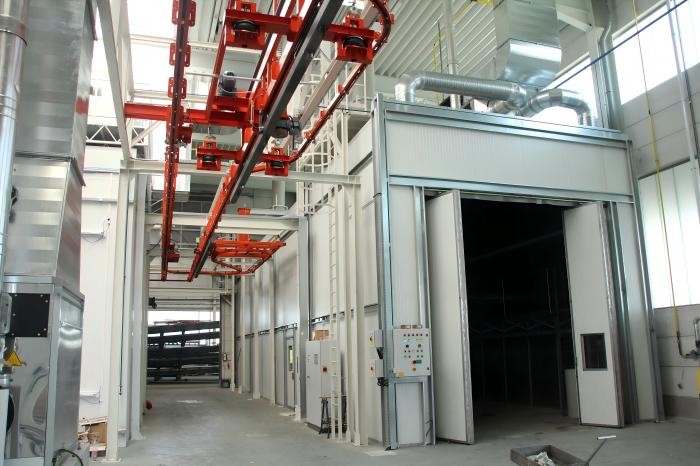

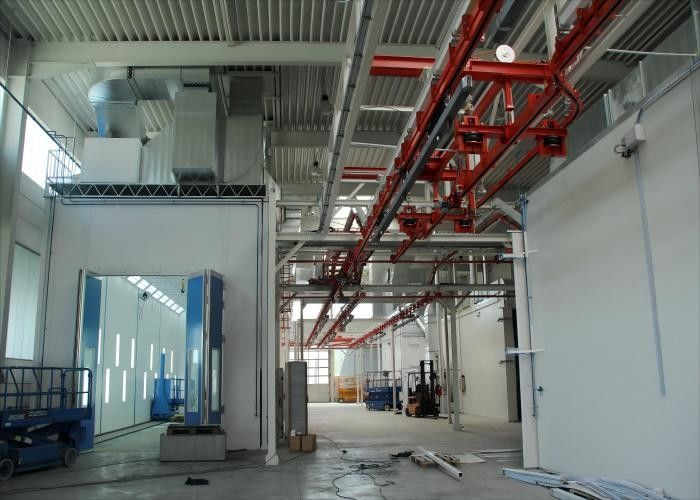

| Type: | Continuous Coating Line | Conveyor Type: | Overhead Conveyor |
| Cooling Method: | Air/ Water | Heating Temperature: | Adjustable |
| Cooling Time: | Adjustable | Coating Type: | Powder Coating |
| Highlight: | overhead conveyor coating line for metal parts,automated powder coating conveyor system,powder recovery overhead conveyor line |
||
Hanger Type Shot Blasting Machine for Surface Descaling & Rust Removal
Overview
For heavy-duty surface preparation, the CoatTech Hanger Shot Blasting Machine uses high-velocity steel shot to strip rust, mill scale, and old paint from workpieces. This mechanical cleaning process achieves an Sa2.5 surface profile, providing the perfect "anchor pattern" for heavy powder coating or liquid painting. Ideally suited for irregular or complex-shaped parts.
Core Features
High-Velocity Turbines: Equipped with high-efficiency blast wheels (Turbines) that throw up to 250kg of steel shot per minute.
Smart Rotation: The hanger hook automatically rotates inside the blast chamber, ensuring 360-degree coverage of the workpiece.
Abrasive Recycling: Integrated elevator and air-wash separator system cleans the steel shot and recycles it, removing dust and broken particles.
Durability: The blast chamber is lined with Mn13 High-Manganese Steel wear-resistant liners (life span > 10,000 hours).
Technical Specification Sheet
| Parameter | Series G: Single Hook (Batch) | Series H: Double Hook (Y-Track) | Series I: Continuous Pass-Through |
| Catalog Code | CT-SHOT-Q376 | CT-SHOT-Q378 | CT-SHOT-Q48 |
| Max Workpiece | D 600mm x H 1000mm | D 800mm x H 1500mm | W 1000mm x H 2000mm |
| Load Capacity | 500kg / Hook | 1000kg / Hook | Continuous Conveyor |
| Blast Turbines | 2 Units (7.5 kW each) | 2 or 3 Units (11 kW each) | 4 to 8 Units (15 kW each) |
| Cycle Time | 5 - 8 mins / batch | 4 - 6 mins / batch | Continuous feed |
| Liner Material | Mn13 Manganese Steel | Mn13 Rolled Steel | High Chrome Alloy Cast |
| Dust Collector | Bag Filter House | Cartridge Pulse-Jet | Multi-Drum Cartridge |
| Shot Recovery | Screw Conveyor + Elevator | Screw + Elevator + Separator | Full Reclaim System |
| Noise Level | < 85 dB | < 85 dB | < 90 dB (Insulated) |
Applications:
Cast iron parts, forged steel components, gas cylinder refurbishment, automotive chassis, and agricultural machinery.
![]()
![]()
![]()
![]()
Water Filtration is an environmental protection equipment used for waste paint exhaust gas treatment. It is
mainly used for spray painting exhaust gas treatment in spray painting assembly line workshops in various
industries. It has the advantages of simple operation, stable use and safety.
