Overhead Conveyor Coating Line with Automated Powder Coating Energy Curing

MOQ: 1
Price: USD2000-USD10000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 500SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
OCCL-33
Warranty:
1 Year
Control System:
PLC
Material:
Steel
Conveyor Load Capacity:
Up To 500kg
Conveyor Speed:
Adjustable
Coating Color:
Customizable
Heating Method:
Electric/ Gas/ Infrared
Power Supply:
AC 380V/50Hz
Type:
Continuous Coating Line
Conveyor Type:
Overhead Conveyor
Cooling Method:
Air/ Water
Heating Temperature:
Adjustable
Cooling Time:
Adjustable
Coating Type:
Powder Coating
Highlight:

overhead conveyor coating line for metal parts

,

automated powder coating conveyor system

,

powder recovery overhead conveyor line

Product Description

Hanger Type Shot Blasting Machine for Surface Descaling & Rust Removal



Overview



For heavy-duty surface preparation, the CoatTech Hanger Shot Blasting Machine uses high-velocity steel shot to strip rust, mill scale, and old paint from workpieces. This mechanical cleaning process achieves an Sa2.5 surface profile, providing the perfect "anchor pattern" for heavy powder coating or liquid painting. Ideally suited for irregular or complex-shaped parts.

Core Features

  • High-Velocity Turbines: Equipped with high-efficiency blast wheels (Turbines) that throw up to 250kg of steel shot per minute.

  • Smart Rotation: The hanger hook automatically rotates inside the blast chamber, ensuring 360-degree coverage of the workpiece.

  • Abrasive Recycling: Integrated elevator and air-wash separator system cleans the steel shot and recycles it, removing dust and broken particles.

  • Durability: The blast chamber is lined with Mn13 High-Manganese Steel wear-resistant liners (life span > 10,000 hours).

Technical Specification Sheet

Parameter Series G: Single Hook (Batch) Series H: Double Hook (Y-Track) Series I: Continuous Pass-Through
Catalog Code CT-SHOT-Q376 CT-SHOT-Q378 CT-SHOT-Q48
Max Workpiece D 600mm x H 1000mm D 800mm x H 1500mm W 1000mm x H 2000mm
Load Capacity 500kg / Hook 1000kg / Hook Continuous Conveyor
Blast Turbines 2 Units (7.5 kW each) 2 or 3 Units (11 kW each) 4 to 8 Units (15 kW each)
Cycle Time 5 - 8 mins / batch 4 - 6 mins / batch Continuous feed
Liner Material Mn13 Manganese Steel Mn13 Rolled Steel High Chrome Alloy Cast
Dust Collector Bag Filter House Cartridge Pulse-Jet Multi-Drum Cartridge
Shot Recovery Screw Conveyor + Elevator Screw + Elevator + Separator Full Reclaim System
Noise Level < 85 dB < 85 dB < 90 dB (Insulated)

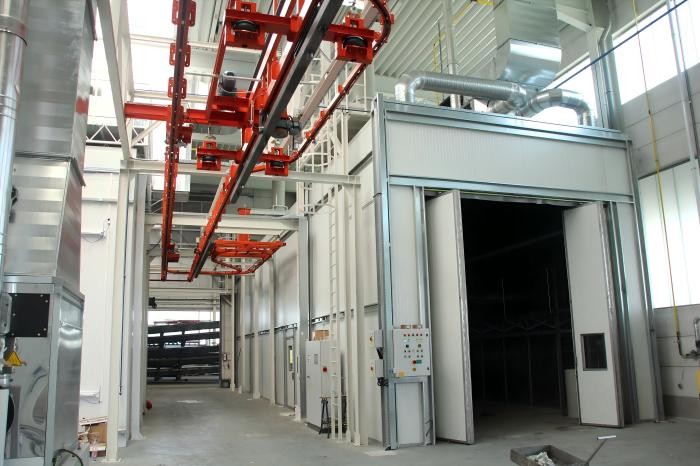

Overhead Conveyor Coating Line with Automated Powder Coating Energy Curing 0

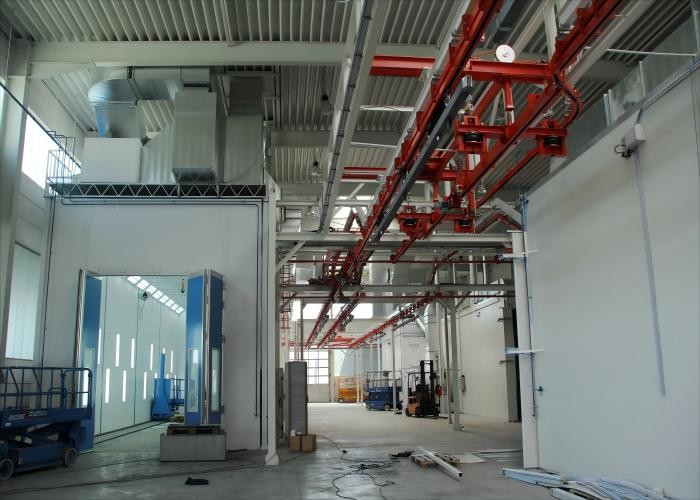

Overhead Conveyor Coating Line with Automated Powder Coating Energy Curing 1

Overhead Conveyor Coating Line with Automated Powder Coating Energy Curing 2

If you have any doubt or idea,please send the inquiry,we will respond to you immediately!
