Automatic Reciprocator & Gun Control Center for Powder & Liquid Lines

MOQ: 1
Price: USD1400-14000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 100SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
Auto-6
Name:
Smart Painting Line
Sub-Name:
Automatic Spray Line
Power Supply::
220V/50HZ Or Other Option
Motor::
Chinese Brand Or Import Brand
Control Sytem::
Switch Style Or PLC Touch Screen Control
Color::
White Or Other Option
Application::
Automobile Or Package Or Leather
Energy Sources::
Electricity
Coating:
10-50um
Dimention::
As Require
Highlight:

Automatic reciprocator for powder lines

,

Gun control center for liquid lines

,

Smart painting line reciprocator

Product Description

Automatic Reciprocator & Gun Control Center for Powder & Liquid Lines




Overview The CoatTech Automatic Reciprocator (Robot) is the heart of a consistent automated line. It moves the spray guns vertically or horizontally with precise speed and stroke control, ensuring uniform film thickness across the entire product. Paired with our Central Gun Control Cabinet, operators can adjust voltage, current, and powder flow for up to 24 guns from a single interface.



Core Features

  • Smooth Movement: Belt-driven design with linear guides ensures vibration-free movement, eliminating "banding" or striping on the product.

  • Digital Control: PLC-controlled stroke length and speed (frequency conversion) allow you to match the reciprocator speed to the conveyor line speed.

  • Heavy Payload: Capable of carrying 2 to 12 spray guns per arm.

  • Memory Function: The control center can store presets for different parts (e.g., "Flat Panel Mode" vs. "Complex Wire Mode").

Technical Specification Sheet



Parameter Series M: Electric Reciprocator Series N: Frequency (Inverter) Series O: Multi-Axis Robot
Catalog Code CT-REC-EL CT-REC-FREQ CT-REC-ROBO
Movement Axis Vertical (Up/Down) Vertical (Variable Speed) X, Y, Z (3D Tracking)
Stroke Length 1.5m / 2.0m / 2.5m Adjustable (Digital Limit) Fully Programmable
Speed Range Fixed Speed 0.08 - 0.8 m/sec High Speed Dynamic
Gun Capacity 2 - 4 Guns 4 - 12 Guns 1 - 2 Rotary Atomizers
Load Capacity Max 15 kg Max 45 kg Max 10 kg
Motor Power 0.37 kW 0.75 kW Servo / VFD Servo Drive System
Control Unit Analog Buttons Touch Screen PLC Teach Pendant / Scanner
Compatibility Universal Gun Mount Gema / Nordson / Wagner Custom Integration

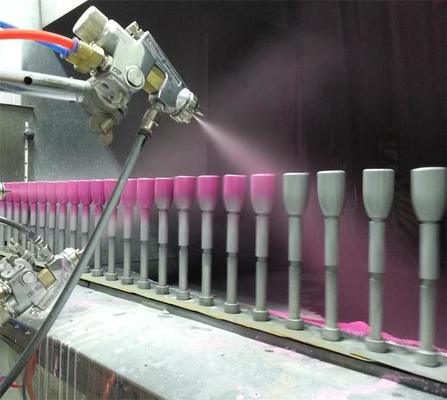

Automatic Reciprocator & Gun Control Center for Powder & Liquid Lines 0
Automatic Reciprocator & Gun Control Center for Powder & Liquid Lines 1
Automatic Reciprocator & Gun Control Center for Powder & Liquid Lines 2
Automatic Reciprocator & Gun Control Center for Powder & Liquid Lines 3
Automatic Reciprocator & Gun Control Center for Powder & Liquid Lines 4

Automatic Reciprocator & Gun Control Center for Powder & Liquid Lines 5
Automatic Reciprocator & Gun Control Center for Powder & Liquid Lines 6


If you have any doubt or idea,please send the inquiry,we will respond to you immediately!
