Overhead Conveyor Chain Components Tracks & Drive Units QXG & XT Series 30 Kg / Hanger

MOQ: 1
Price: USD2000-USD10000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 500SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
OCCL-34
Warranty:
1 Year
Control System:
PLC
Material:
Steel
Conveyor Load Capacity:
Up To 500kg
Conveyor Speed:
Adjustable
Coating Color:
Customizable
Heating Method:
Electric/ Gas/ Infrared
Power Supply:
AC 380V/50Hz
Type:
Continuous Coating Line
Conveyor Type:
Overhead Conveyor
Cooling Method:
Air/ Water
Heating Temperature:
Adjustable
Cooling Time:
Adjustable
Coating Type:
Powder Coating
Highlight:

Overhead Conveyor Chain Components 30 Kg

,

QXG XT Series Drive Units

,

Overhead Conveyor Tracks with Warranty

Product Description

Overhead Conveyor Chain Components, Tracks & Drive Units (QXG & XT Series)

Overview



Keep your production line moving with CoatTech’s premium conveyor components. We supply complete chain systems as well as individual spare parts. From the versatile QXG Enclosed Track series to the heavy-duty American Standard XT Forged Chain, our components are heat-treated for high tensile strength and wear resistance.



Core Features

  • High Tensile Strength: Chains are drop-forged and heat-treated to withstand heavy loads and reduce stretching over time.

  • Flexible Layout: We provide horizontal curves (R600/R800) and vertical curves (Up/Down) to fit any factory layout.

  • Smooth Operation: C-Rail enclosed tracks keep the chain clean, while open I-Beam tracks allow for easy maintenance on heavy lines.

  • Drive Technology: Drive units with safety shear pins or torque limiters to protect the motor in case of a jam.

Technical Specification Sheet

Parameter Series G: Single Hook (Batch) Series H: Double Hook (Y-Track) Series I: Continuous Pass-Through
Catalog Code CT-SHOT-Q376 CT-SHOT-Q378 CT-SHOT-Q48
Max Workpiece D 600mm x H 1000mm D 800mm x H 1500mm W 1000mm x H 2000mm
Load Capacity 500kg / Hook 1000kg / Hook Continuous Conveyor
Blast Turbines 2 Units (7.5 kW each) 2 or 3 Units (11 kW each) 4 to 8 Units (15 kW each)
Cycle Time 5 - 8 mins / batch 4 - 6 mins / batch Continuous feed
Liner Material Mn13 Manganese Steel Mn13 Rolled Steel High Chrome Alloy Cast
Dust Collector Bag Filter House Cartridge Pulse-Jet Multi-Drum Cartridge
Shot Recovery Screw Conveyor + Elevator Screw + Elevator + Separator Full Reclaim System
Noise Level < 85 dB < 85 dB < 90 dB (Insulated)

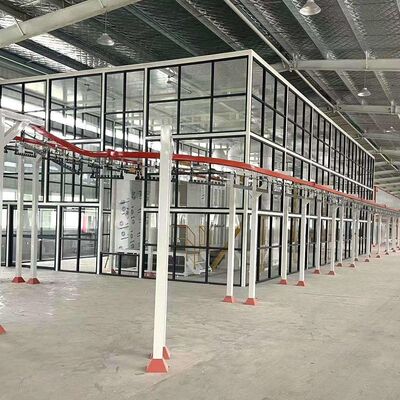

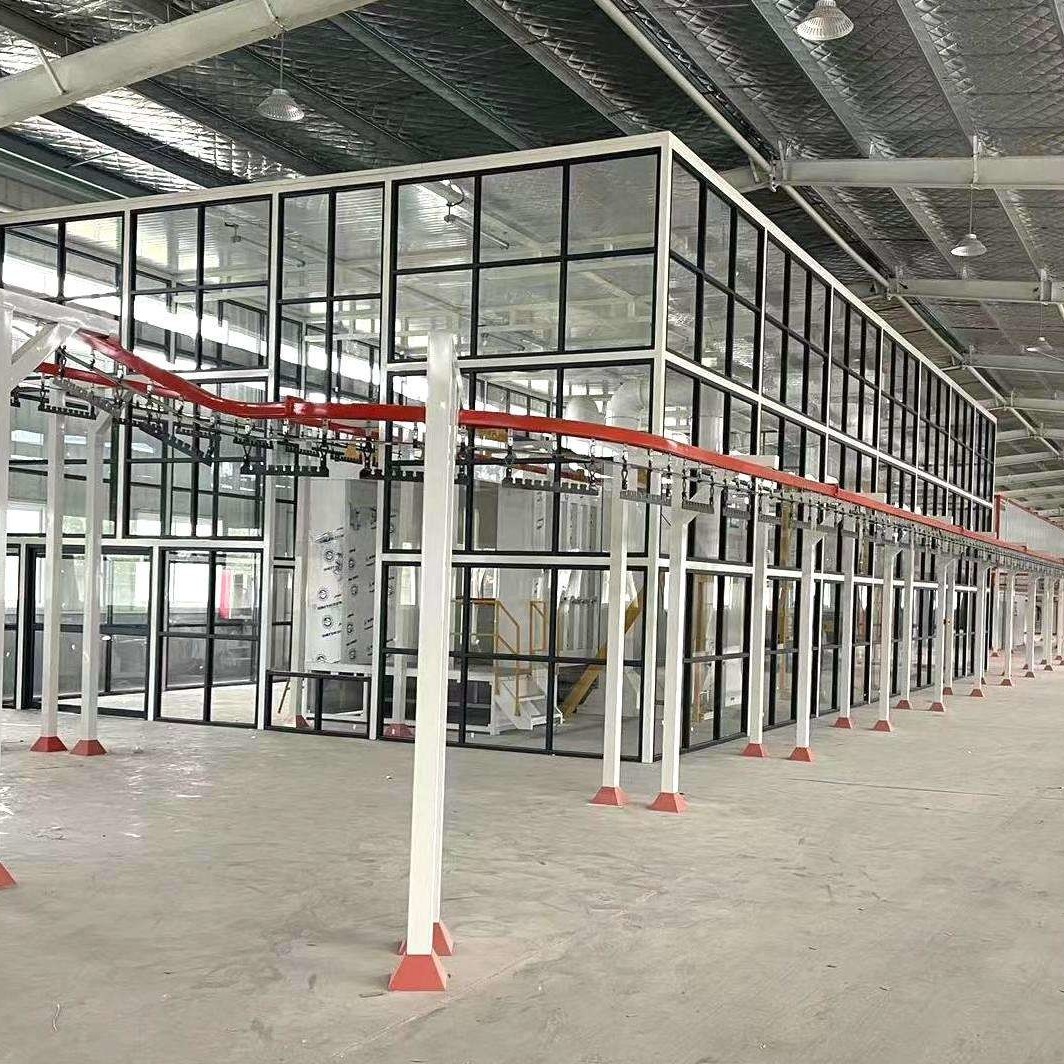

Overhead Conveyor Chain Components Tracks & Drive Units QXG & XT Series 30 Kg / Hanger 0Overhead Conveyor Chain Components Tracks & Drive Units QXG & XT Series 30 Kg / Hanger 1

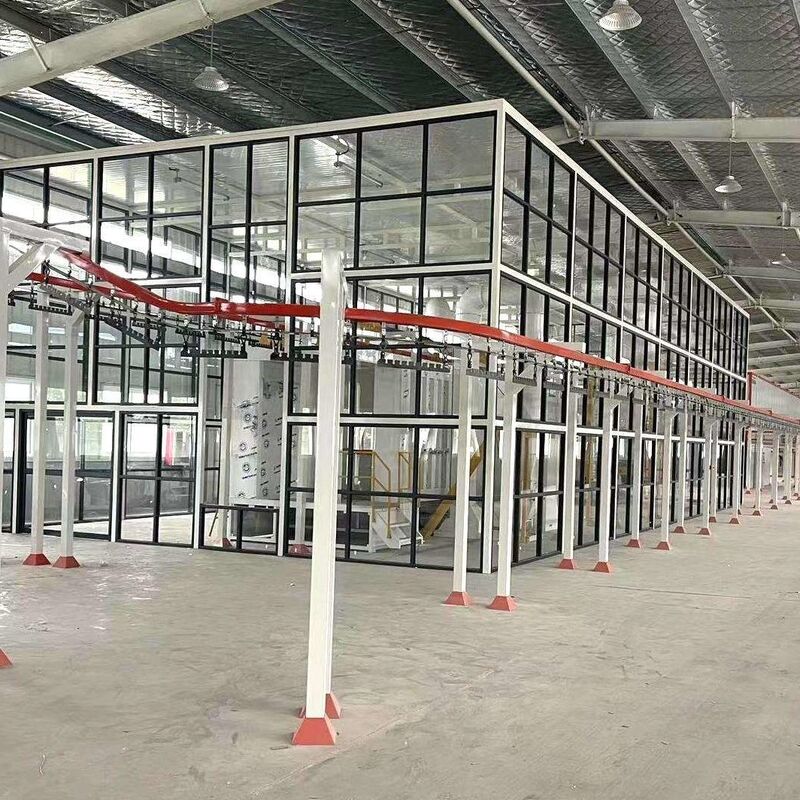

Overhead Conveyor Chain Components Tracks & Drive Units QXG & XT Series 30 Kg / Hanger 2
