Overhead Conveyor Chain Components, Tracks & Drive Units (QXG & XT Series)

MOQ: 1
Price: USD2000-USD10000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 500SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
OCCL-35
Warranty:
1 Year
Control System:
PLC
Material:
Steel
Conveyor Load Capacity:
Up To 500kg
Conveyor Speed:
Adjustable
Coating Color:
Customizable
Heating Method:
Electric/ Gas/ Infrared
Power Supply:
AC 380V/50Hz
Type:
Continuous Coating Line
Conveyor Type:
Overhead Conveyor
Cooling Method:
Air/ Water
Heating Temperature:
Adjustable
Cooling Time:
Adjustable
Coating Type:
Powder Coating
Highlight:

Overhead Conveyor Chain Tracks

,

QXG Series Conveyor Drive Units

,

XT Series Conveyor Components

Product Description

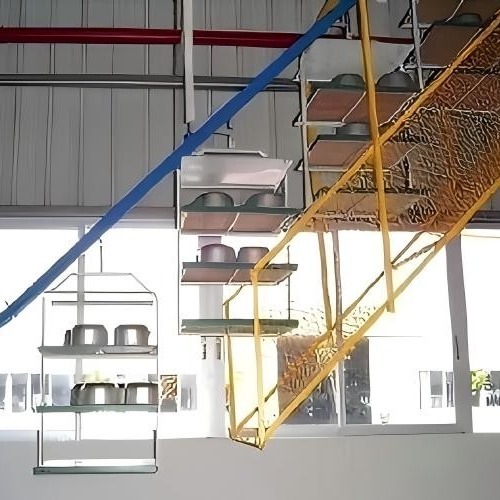

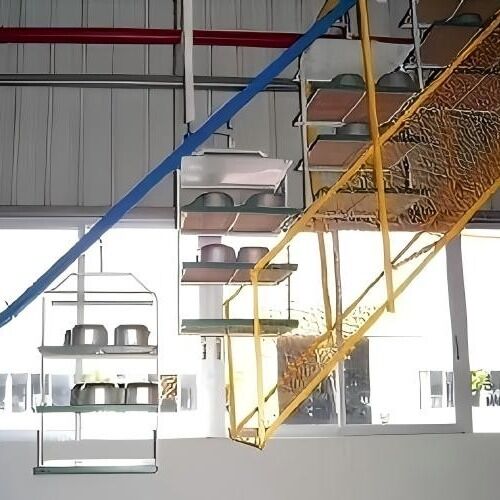

Overhead Conveyor Chain Components, Tracks & Drive Units (QXG & XT Series)

Overview Keep your production line moving with CoatTech’s premium conveyor components. We supply complete chain systems as well as individual spare parts for maintenance. From the versatile QXG Enclosed Track series to the heavy-duty American Standard XT Forged Chain, our components are heat-treated for high tensile strength and wear resistance.

Core Features

  • High Tensile Strength: Chains are drop-forged and heat-treated to withstand heavy loads and reduce stretching over time.

  • Flexible Layout: We provide horizontal curves (R600/R800) and vertical curves (Up/Down) to fit any complex factory layout.

  • Smooth Operation: C-Rail enclosed tracks keep the chain clean and dust-free, while open I-Beam tracks allow for easy maintenance on heavy industrial lines.

  • Drive Technology: Drive units equipped with safety shear pins or torque limiters to protect the motor and chain in case of a jam.

Technical Specification Sheet

Parameter Series V: QXG Enclosed (Light) Series W: 5-Ton Enclosed (Medium) Series X: XT-348/458 (Heavy)
Catalog Code QXG-150 / 200 QXG-250 / 300 XT-348 / XT-458 / XT-678
Chain Pitch 150mm / 200mm 250mm / 300mm 3" (76.2mm) / 4" (101.6mm)
Single Load 30 kg / Hanger 50 kg - 100 kg / Hanger 150 kg - 600 kg / Trolley
Tensile Strength 2000 kgf 4000 - 5000 kgf 10,000 - 20,000 kgf
Track Material C-Type Manganese Steel Heavy C-Type Steel I-Beam (10# / 12# Steel)
Curve Radius R600 / R800 / R1000 R1000 / R1200 R1500+ (Roller Turns)
Lubrication Automatic Oiler Cup Auto Mist Lubricator Auto Shot Lubricator
Drive Unit 1.5 kW - 2.2 kW 2.2 kW - 5.5 kW 5.5 kW - 11 kW

Overhead Conveyor Chain Components, Tracks & Drive Units (QXG & XT Series) 0Overhead Conveyor Chain Components, Tracks & Drive Units (QXG & XT Series) 1

If you have any doubt or idea,please send the inquiry,we will respond to you immediately!
