Heavy Duty Prep Station with Full Floor Grating & High Load Capacity

MOQ: 1
Price: USD5000-USD10000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 30SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
CT-PR-A4
NAME:
Preparation Station
Using Energy::
Diesel,gas,steam,electric Or Other Option
Main Door::
Fold Style Or Electric Rolling Style
Motor::
Chinese Brand Or Import Brand
Control Sytem::
Switch Style Or PLC Touch Screen Control
Wall::
Metal Sheld,EPS,Rock Wool Of PU For Option
Color::
White Or Other Option
Application::
Bus/truck Or Other Metallic Products
Energy Sources::
Water, Electricity,gas
Coating:
10-50um
Dimention::
As Require
Highlight:

heavy duty prep station with grating

,

high load capacity prep station

,

full floor grating prep station

Product Description

Heavy Duty Prep Station with Full Floor Grating & High Load Capacity

Designed for heavy vehicles and intensive use, this station features a premium Full Grating Floor. Unlike standard models with checker plates, the full grid floor provides 100% vertical airflow coverage, ensuring that heavy dust from chassis sanding is instantly captured, regardless of where the car is parked.

Core Features

  • Full Grid Basement: Replaces solid checker plates with complete steel grating for maximum airflow efficiency and superior cleanliness.

  • High Load Bearing: The reinforced steel basement structure is rated for vehicles up to 3.5 Tons (SUVs and light trucks).

  • High-Performance Fans: Upgraded turbo-fans ensure the static pressure is high enough to pull air through the full floor mesh.

  • Filtration: Floor paint-stop filters cover the entire basement area, doubling the dust holding capacity.

Parameter Series E: Full Grating Floor
Catalog Code CT-PREP-GRID
Inner Size 6900 x 3900 x 2700 mm
Airflow 18,000 m3/h
Fan Power 2 x 4kW Intake + 1 x 5.5kW Exhaust
Basement 300mm (Full Grating)
Wall Type Rear EPS + PVC Curtains
Heating None
Total Power 18 kW

Detailed Product Description


Optimized Workflow for Body Shops The CT-PREP-200 is the workhorse of the body shop. By performing sanding, masking, and priming in this dedicated station, you prevent dust contamination in your main spray booth. This dramatically improves the quality of your final topcoat.

Airflow Design (Semi-Downdraft) Air is drawn from the workshop through the top plenum filters (cleaning the air), moves downwards over the vehicle to capture sanding dust and primer overspray, and is exhausted through the rear wall or floor pit. This ensures the technician breathes clean air.

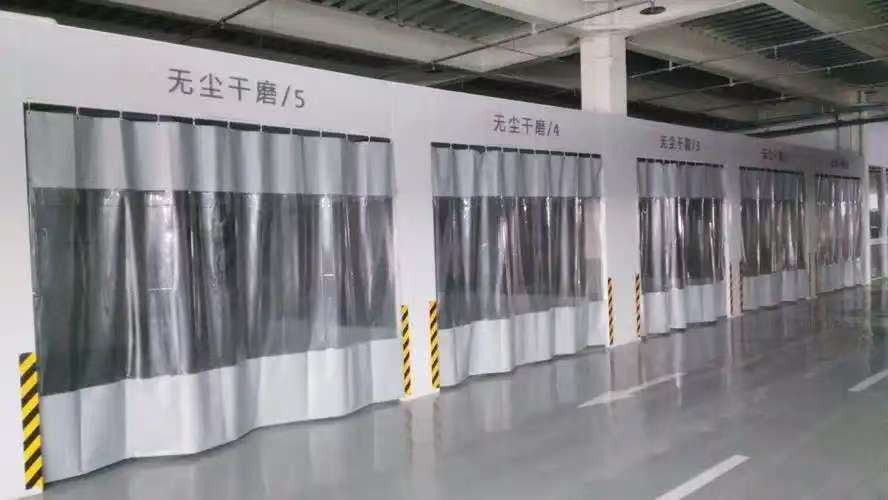

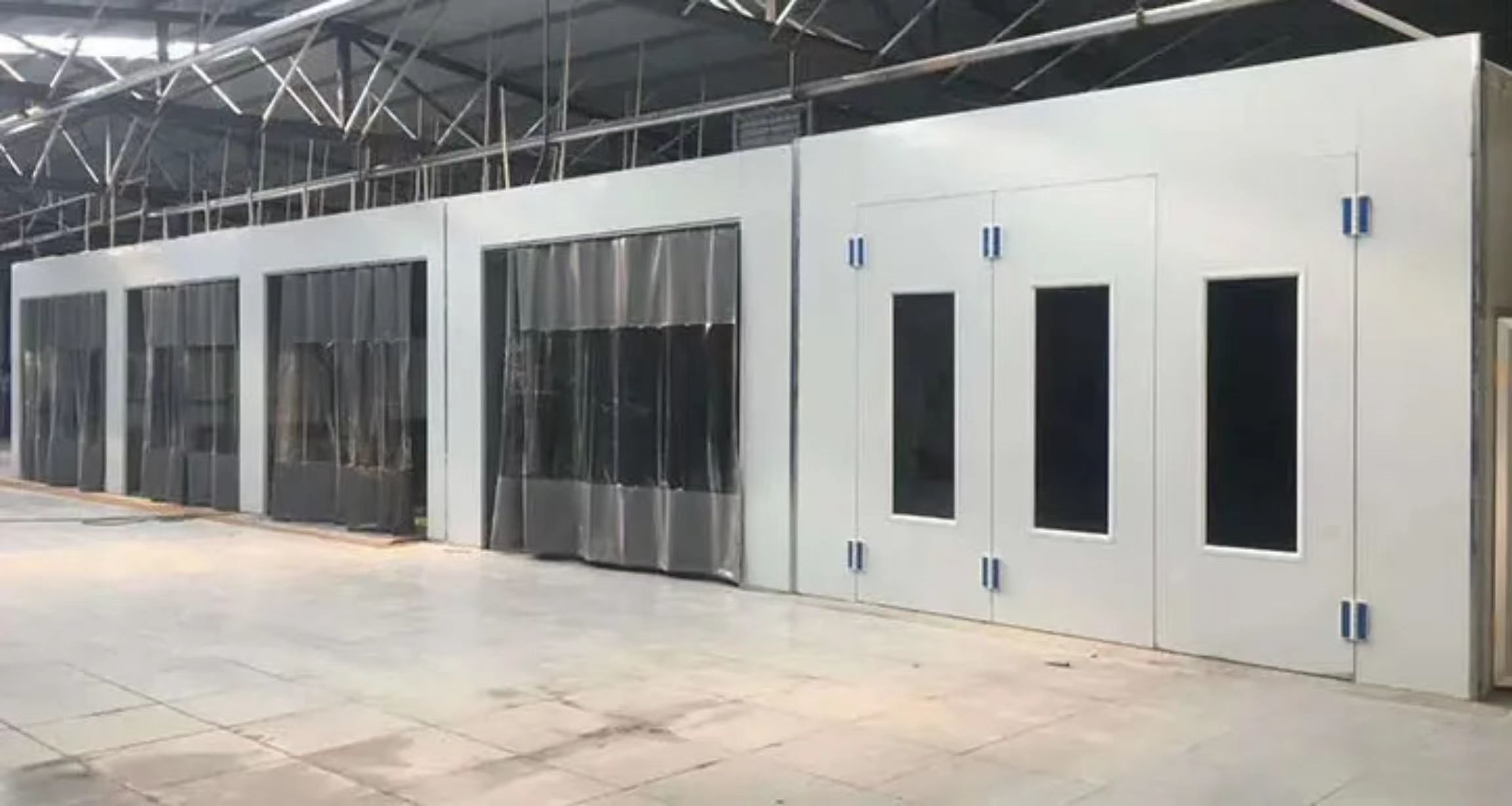

PVC Curtain Enclosure Unlike a fixed booth, the Prep Station uses sliding PVC curtains.

  • Convenience: Easily slide curtains open to move cars in and out quickly.

  • Visibility: Transparent windows allow the manager to monitor work progress.

  • Durability: Resistant to solvents and wear.

Energy Saving Strategy Don't turn on your 15kW Paint Booth just to spray a bumper with primer. Use the Prep Station (5.5kW) instead. It creates a cleaner environment than the open shop floor but costs a fraction of the price to operate.






FAQ


Q: Can I spray the final topcoat (Color/Clear) in this Prep Station? A: Technically yes, but we do not recommend it for high-quality finishes. The Prep Station is not a sealed environment like a Spray Booth, so there is a higher risk of dust. It is best used for Primer and Putty.

Q: Does it need a metal base (basement)? A: No. The most popular model is the "Rear Draft" version. It sits on your existing flat concrete floor and sucks air out through a filter box on the back wall. This saves money on ramps and steel bases.

Q: Can you make a station for 3 cars at once? A: Yes, we can connect multiple units together (side-by-side) to create a multi-bay sanding line.

Q: Is the fan unit noisy? A: We use a dynamic balanced centrifugal fan with a belt drive, which keeps noise levels below 75dB.

Heavy Duty Prep Station with Full Floor Grating & High Load Capacity 0
Heavy Duty Prep Station with Full Floor Grating & High Load Capacity 1
Heavy Duty Prep Station with Full Floor Grating & High Load Capacity 2
Heavy Duty Prep Station with Full Floor Grating & High Load Capacity 3
Heavy Duty Prep Station with Full Floor Grating & High Load Capacity 4
Heavy Duty Prep Station with Full Floor Grating & High Load Capacity 5



Tags:

bus pre station,

customizable paint prep station,

truck pre station
