Heated Industrial Air Makeup Unit (AMU) to Replace Exhausted Air and Maintain Positive Booth Pressure

Heated Industrial Air Makeup Unit (AMU) to Replace Exhausted Air and Maintain Positive Booth Pressure
Heated Industrial Air Makeup Unit (AMU) to Replace Exhausted Air and Maintain Positive Booth Pressure
Heated Industrial Air Makeup Unit (AMU) to Replace Exhausted Air and Maintain Positive Booth Pressure Heated Industrial Air Makeup Unit (AMU) to Replace Exhausted Air and Maintain Positive Booth Pressure Heated Industrial Air Makeup Unit (AMU) to Replace Exhausted Air and Maintain Positive Booth Pressure Heated Industrial Air Makeup Unit (AMU) to Replace Exhausted Air and Maintain Positive Booth Pressure
Basic Information
Place of Origin: CHINA
Brand Name: Coarrech
Certification: ISO9001、CE
Model Number: CT-PA-51
Minimum Order Quantity: 10pc
Price: 100-1000 USD
Packaging Details: With regular Film and Carton
Delivery Time: 7 DAYS After Deposit
Payment Terms: T/T
Supply Ability: 3000SET/MONTH
Contact Now
Product Name: Glass Fiber Filter Dimensions (L×W×H): Customizable
Applications: Automotive Paint Booths, Spray Booths, HVAC Systems Color: White-Green
Usage: Widely Used As A Dust Filter Efficiency: G3 G4
Porosity: 5μm Type: High Airflow Capacity
Highlight:

heated industrial air makeup unit

,

AMU for positive booth pressure

,

industrial air replacement unit with warranty

Heated Industrial Air Makeup Unit (AMU) to Replace Exhausted Air and Maintain Positive Booth Pressure



Overview:

Crucial for the proper operation of large spray booths. Spray booths exhaust huge volumes of air; if that air isn't replaced, the building enters negative pressure, sucking in dust from outside. The CT-FreshAir unit draws in fresh outside air, filters it, heats it to spraying temperature, and forces it into the facility to balance the pressure.



Detail Table



Feature Specification
Heating Method Direct Fired Gas Burner (92%+ efficiency)
Air Volume (CFM) Custom sized to match exhaust (e.g., 10,000 - 50,000 CFM)
Filtration G4 Pre-filters on intake
Temperature Control Modulating burner for precise temp maintenance
Installation Rooftop mounted or ground pad mounted
Control Interface Remote panel integrated with spray booth controls

Product Features:

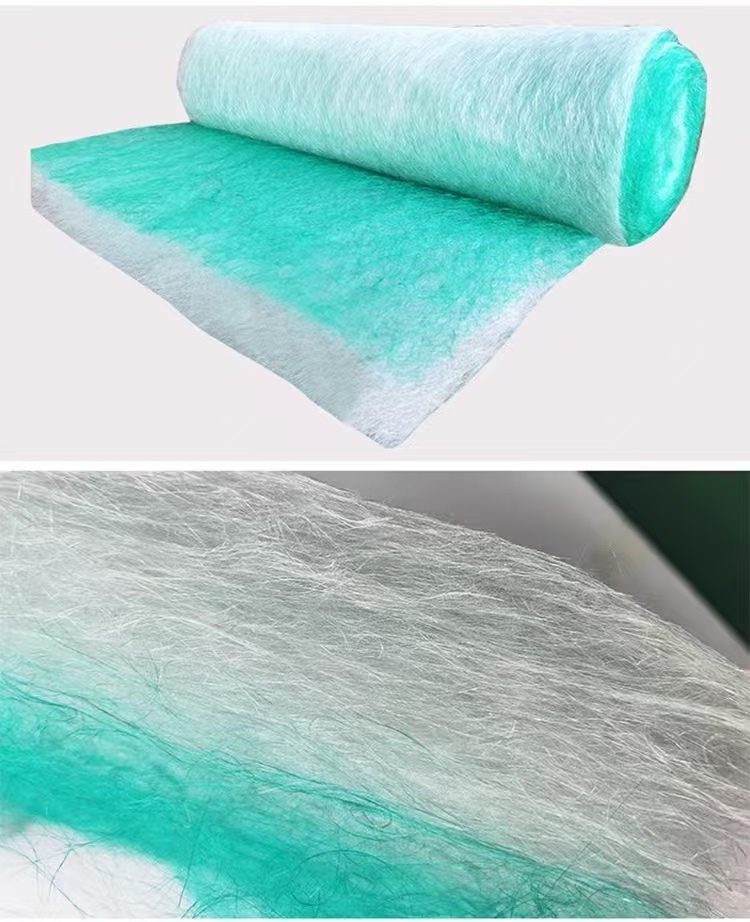

  1. Composed of high-strength continuous monofilament glass fibers with a progressively layered structure for high capture efficiency.

  2. Excellent compressibility, maintains shape integrity, and features filtering fibers optimized for retaining paint mist and dust.

  3. The filter material is green and white: the green side represents the air intake surface, while the white side faces outward.

  4. Elasticity with minimal pressure loss, delivering outstanding capture and filtration efficiency for dense and tightly packed paint mist (G3 and G4 efficiency).

  5. Compliant with DIN 4102 F1 flame-retardant standards.

  6. Strong moisture resistance, capable of withstanding 100% relative humidity.

  7. High-temperature resistance up to 170°C.

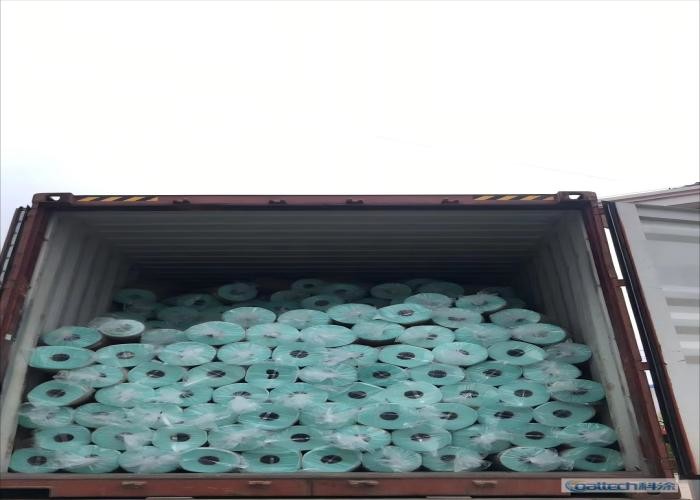

  8. Available in rolls or pre-cut sheets.

Applications:

  1. General HVAC systems, dry paint booths, and automotive spray booth exhaust systems for coarse dust filtration. Captures excess paint overspray to prevent equipment contamination, protect painted surfaces, and safeguard the external environment.

  2. Installed on grilles or exhaust fan bases in baking booths to collect excess free overspray particles generated during operations.

  3. Widely used in paint mist filtration systems for spray stations, automotive paint booths, and other dry paint processes. Also suitable for automotive paint booth floor filtration and general coarse dust filtration systems.

Important Reminder: Wear gloves during installation or cutting to prevent hand injuries from glass fibers.

Specifications

Parameter HT-50/60 HT-100
Weight 240 g/m² 320 g/m²
Filtration Efficiency 92%-96% 97%-99%
Initial Resistance 15 Pa 20 Pa
Final Resistance 250 Pa 280 Pa
Air Velocity 0.7-1.5 m/s 0.7-1.75 m/s
Dust Holding Capacity 3200-3600 g/m² 3600-4900 g/m²
Max Temperature 170°C 170°C
Thickness 50/60 mm 100 mm
Width 0.8/1.0/2.0 m Customizable upon request

Other sizes and specifications can be customized to meet client requirements.

Brand: Coattech
Origin: Guangdong, China
Keywords: Glass Fiber Air Filter, Paint Booth Filter Media, G3/G4 Efficiency, High Airflow Capacity, Flame-Retardant Filter.
