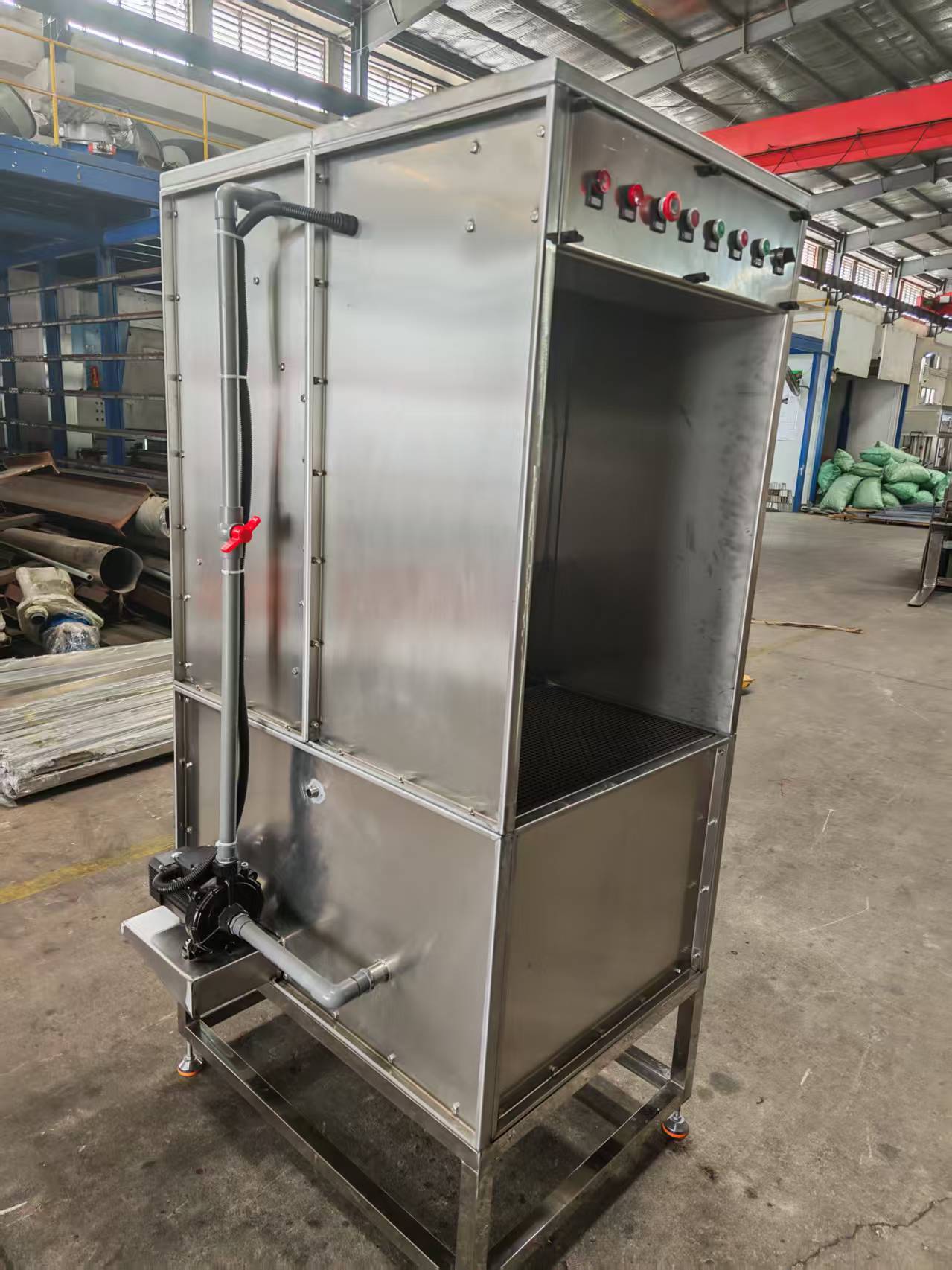

Laboratory Floor-Standing Water Curtain Spray Booth Small Parts Finishing

Laboratory Floor-Standing Water Curtain Spray Booth Small Parts Finishing
Laboratory Floor-Standing Water Curtain Spray Booth Small Parts Finishing
Laboratory Floor-Standing Water Curtain Spray Booth Small Parts Finishing
Basic Information
Place of Origin: China
Brand Name: CoatTech
Certification: CE
Model Number: WA-CU-01
Minimum Order Quantity: 1
Price: USD1000-USD5000/SET
Packaging Details: With regular Film and Carton
Delivery Time: 15 DAYS After Deposit
Payment Terms: T/T
Supply Ability: 30SET/MONTH
Contact Now
NAME: Water Curtain Booth Power Supply:: 1x220V
Using Energy:: Electric Main Door:: NO
Motor:: Chinese Brand Or Import Brand Control Sytem:: Switch Style
Application:: Paint Panel Noise Level: ≤80dB
Lighting: LED
Highlight:

floor-standing water curtain spray booth

,

small parts finishing spray booth

,

big size laboratory spray booth

Laboratory Floor-Standing Water Curtain Spray Booth Small Parts Finishing



Date: Oct 24, 2023 Model: WSB-800-SS (Lab Pro Series) Application: Laboratory Paint Testing / Small Parts Finishing



1. General Specifications

Parameter Specification
Type Floor-Standing Water Curtain Spray Booth
External Dimensions 860 (W) × 1000 (D) × 2000 (H) mm
Working Area 800 (W) × 530 (D) × 840 (H) mm
Body Material 1.5mm SUS304 Stainless Steel (Full Welded)
Structural Support

SUS304 Stainless Steel Square Tube Frame

2. Air Handling & Performance

Parameter Data
Fan Model TDAF-255L Centrifugal Fan (Direct Drive)
Airflow Capacity 1,500 m³/h
Air Pressure 363 Pa
Motor Power 0.37 kW (Ex-proof)
Exhaust Connection Top / Rear Outlet (Includes 3m PE Flexible Hose)
Air Speed (No Load) > 0.5 m/s

3. Filtration & Water System

Parameter Configuration
Water Curtain SUS304 Stainless Steel (Saw-tooth overflow design)
Water Pump Horizontal Clear Water Pump (0.37 kW / Model GD30-10)
Water Supply Equipped with Float Valve (Auto-fill)
Drainage Manual Drain Valve included
Mist Separation Rear Baffle Plates (Gas-Water Separation)
Exhaust Filtration

Stage 1: Fiberglass Paint-Stop Mesh (Mist)



Stage 2: Activated Carbon Plate (Odor Control)

4. Electrical Power

Parameter Specification
Voltage / Frequency 220V / 50Hz / 1-Phase (Standard Lab Power)
Total Power 1.0 kW
Lighting 1 × 20W Explosion-Proof LED (IP55)

Laboratory Floor-Standing Water Curtain Spray Booth Small Parts Finishing 0











Laboratory Floor-Standing Water Curtain Spray Booth Small Parts Finishing 1



Laboratory Floor-Standing Water Curtain Spray Booth Small Parts Finishing 2

Laboratory Floor-Standing Water Curtain Spray Booth Small Parts Finishing 3

Mastering the Art of Surface Finishing
Precision Engineering for a Flawless Finish
Where Technology Meets Perfection



Now your inquiry will be our best energy!
