Custom 3x3m High-Efficiency Glue Extraction System for Woodworking
  • name

Custom 3x3m High-Efficiency Glue Extraction System for Woodworking

MOQ: 1
Price: USD5000-USD10000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 30SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
Beyond Paint – Engineering Solutions for High-Viscosity Adhesive Spraying
Power Supply::
380V/50HZ/3Ph Or Other Option
Using Energy::
Electric
Application::
Panel/Parts
Coating:
10-50um
Noise Level:
≤50dB
Material:
Steel
Product Description

Custom 3x3m High-Efficiency Glue Extraction System for Woodworking

Beyond Paint – Engineering Solutions for High-Viscosity Adhesive Spraying

1. The Challenge (Problem)

Standard water curtain cabinets are designed for paint. However, woodworking glues (PVA, Contact Cement, PUR) are significantly more viscous and "tacky." Using a standard booth for glue leads to:



  • Rapid clogging of the water pump.

  • Glue buildup on the curtain plates that ruins the water film.

  • Difficult and costly maintenance.

2. Our Solution (Innovation)

We customized our flagship 3m x 3m Water Curtain Cabinet specifically for the woodworking industry. By upgrading the filtration architecture and increasing the pump torque, we created a system that "denatures" the glue particles before they can settle, keeping the air clean and the machine running 24/7.



3. Technical Specification Sheet

Parameter (Item) Industrial Glue-Specific Specification Engineering Advantage
System Dimensions 3000mm (W) x 3000mm (H) x 2200mm (D) Large-scale capacity for furniture panels
Cabinet Material SUS304 Heavy-Duty Stainless Steel Acid/Alkali resistant for glue chemistry
Water Curtain Surface Mirror-Polished "Easy-Slide" Finish Prevents glue adhesion and ensures smooth film
Exhaust Fan System High-Static 4.0kW Centrifugal Fan 22,000 m³/h airflow to capture heavy glue mist
Anti-Clog Pump 2.2kW Reinforced Self-Priming Pump Engineered for high-viscosity fluid circulation
Filtration Stage 1 Primary Stainless Steel Overflow Weir Initial glue particle separation
Filtration Stage 2 Dual-Layer Removable Filter Baskets Traps fibers and clumps before the pump intake
Filtration Stage 3 S-Type Labyrinth Air-Water Separator Ensures zero water-droplet carryover
Lighting IP66 Explosion-Proof LED High visibility for precision glue application
Safety Compliance Exd II BT4 Certified Components Safe for solvent-based contact adhesives
Tank Design Oversized Sludge Collection Basin 50% larger capacity for easier manual cleaning
Control Logic Independent Pump/Fan Interlock Prevents dry-running of the curtain system

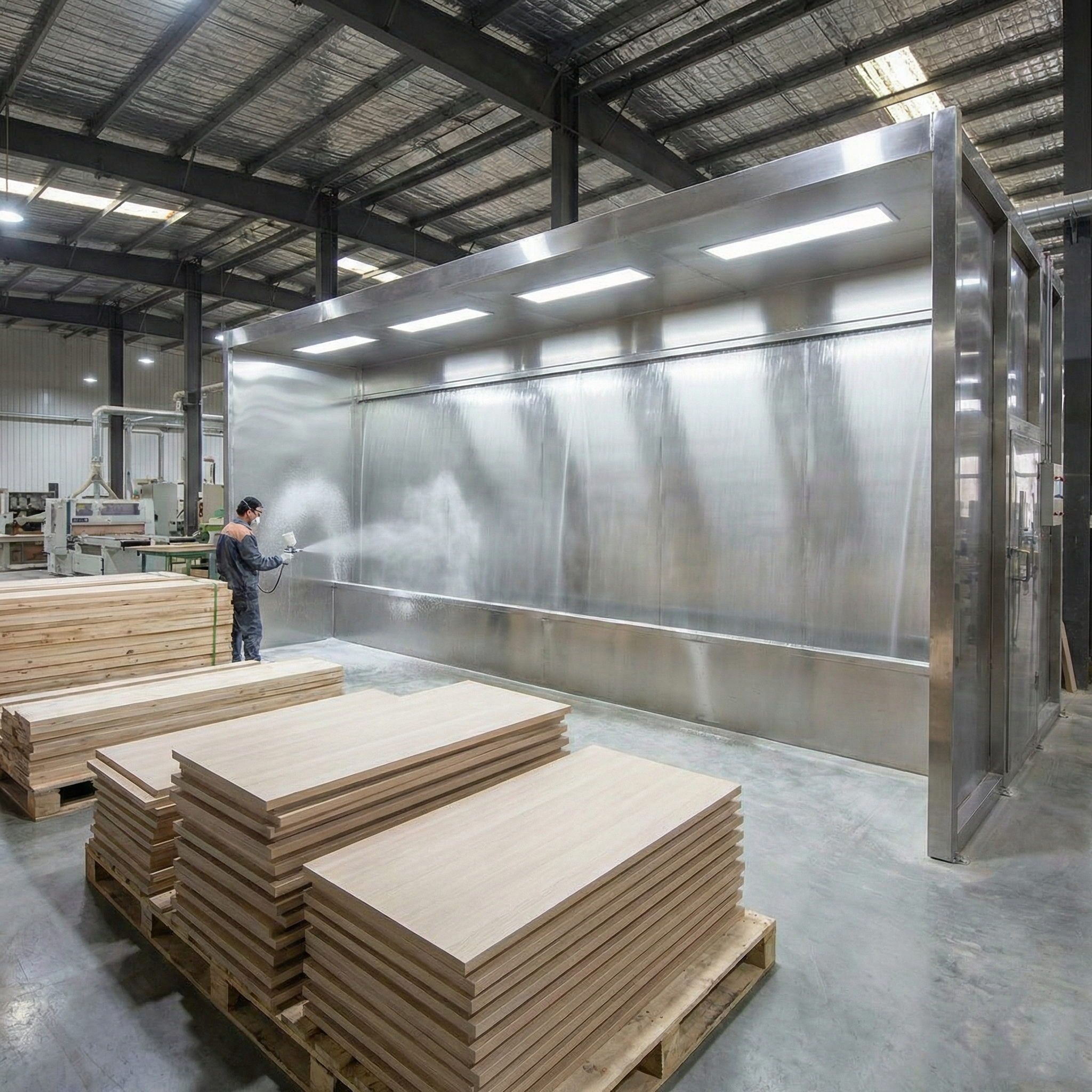

Custom 3x3m High-Efficiency Glue Extraction System for Woodworking 0Custom 3x3m High-Efficiency Glue Extraction System for Woodworking 1Custom 3x3m High-Efficiency Glue Extraction System for Woodworking 2

Custom 3x3m High-Efficiency Glue Extraction System for Woodworking 3Custom 3x3m High-Efficiency Glue Extraction System for Woodworking 4Custom 3x3m High-Efficiency Glue Extraction System for Woodworking 5

4. Key Features for Web Display

  • High-Volume Capture: Specifically tuned for the heavier molecular weight of wood adhesives.

  • Low Maintenance: Quick-release filter baskets allow for cleaning in under 5 minutes.

  • Corrosion Proof: Built entirely from SUS304 to withstand the chemical additives used in woodworking glues.

  • Sustainable: Designed to work with glue-denaturing agents to recycle water longer.

5. Closing Call to Action (CTA)

"Does your woodworking line suffer from glue overspray and clogged filters? Contact our engineering team today for a custom-sized extraction solution tailored to your specific adhesive type."

Custom 3x3m High-Efficiency Glue Extraction System for Woodworking 6
