OmniCoat Automotive Spray Booth: Redefining Efficiency and Flawless Finishes

MOQ: 1
Price: USD5200-USD10000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T,MoneyGram,Western Union,D/A
Supply Capacity: 50SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
SPB-23
NAME:
OmniCoat Automotive Spray Booth
Power Supply:
220V/50Hz
Raw Material:
According To Customer
Exhaust System:
Direct Drive
Outside Size:
7000*5250*3430mm(L*W*H)
Feature:
Rust / Corrosion Inhibitor
Wallboard:
75mm EPS Panel With 0.5mm Steel
Condation:
Brand New
Wall Panel:
50mm EPS Panel, 0.6 Steel
Guarantee Period:
One Year
Temperature Control:
Digital
Advantage:
Real Manufacture Price
Oem:
Acceptable For OEM Work
Quality Guarantee:
1 Year
Voltage:
According To Customer
Product Description

OmniCoat Automotive Spray Booth: Redefining Efficiency and Flawless Finishes


1.OmniCoat Automotive Systems is dedicated to providing top-tier industrial coating solutions for the modern auto repair and vehicle customization industry.


Today, we are proud to introduce our next-generation professional Automotive Spray Booth. Whether you are performing spot repairs or full-body color changes, OmniCoat delivers a dust-free, safe, highly illuminated, and efficient working environment.


2.Core Product Advantages


2-1:Full-Panoramic High-CRI Lighting System: Equipped with high-brightness, explosion-proof LED light fixtures on both the ceiling and side panels. This eliminates visual blind spots and restores the true color of the car paint, ensuring perfect presentation in every detail.

2-2:Smart Temperature Control & Micro-Positive Pressure: The upgraded integrated control panel allows for seamless switching between spraying and baking modes. It precisely controls cabin temperature and maintains a micro-positive pressure state, effectively preventing external dust infiltration.

2-3:Eco-Friendly High-Efficiency Filtration: Utilizing a multi-layer 3D filtration system (pre-filter, ceiling filter, floor fiberglass paint arrestor, and activated carbon), the paint mist capture rate exceeds 98%. This protects operator health and complies with strict environmental emission standards.

2-4:Superior Aerodynamic Design: The powerful intake and exhaust fan units generate a smooth, downdraft airflow. This quickly removes overspray and significantly reduces drying times, boosting your body shop's workflow efficiency.

2-5:High-Strength Thermal Insulation Cabin: Constructed with flame-retardant composite insulation panels, the booth offers excellent sealing performance and minimal heat loss, significantly reducing daily operational energy costs.


3.Technical Specification Sheet
For your facility planning and procurement evaluation, below are the detailed technical specifications for the standard OmniCoat Spray Booth:

OmniCoat Automotive Systems — Safeguarding Every Flawless Coat.

Pre-orders are now open! We offer customized non-standard services tailored to different workshop sizes. Contact our overseas sales team today for an exclusive quotation and facility layout design.


Parameters Specifications
External Dimensions (L x W x H) 7.0m x 5.4m x 3.4m
Internal Dimensions (L x W x H) 6.9m x 3.9m x 2.7m
Wall Panels 50mm EPS / Rock Wool color steel composite insulation board, dual steel sheet thickness 0.42mm
Main Doors 3-fold entrance doors (W 3.0m x H 2.6m) with tempered glass observation windows
Service Door 1 operator safety door (W 0.8m x H 2.0m) with explosion-proof lock
Ceiling Lights 8 units x 4 pcs 15W LED tubes, Illumination ≥1000 Lux
Side Lights 8 units x 2 pcs 15W LED tubes, vertically distributed to eliminate shadows
Intake Fans 2 x 4kW dual-intake centrifugal fans, air capacity 24,000 m³/h
Exhaust Fan 1 x 5.5kW centrifugal fan with electric damper actuator
Heating System High-efficiency diesel burner (Optional: Infrared electric heating)
Max Baking Temperature 80°C (Heats up to 60°C in just 10-15 minutes)
Filtration System Intake pre-filter + Ceiling sub-high efficiency filter + Floor paint mist felt + Eco-friendly activated carbon
Control Panel Microcomputer integrated board with constant temperature baking, leakage protection, over-temperature alarm, and timer
Total Power Approx. 15.5 kW (380V/50Hz 3-Phase)

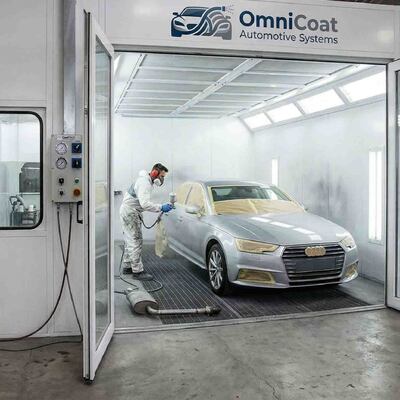

OmniCoat Automotive Spray Booth: Redefining Efficiency and Flawless Finishes 0


4.OmniCoat Automotive Systems — Safeguarding Every Flawless Coat.


Pre-orders are now open! We offer customized non-standard services tailored to different workshop sizes.

Contact our overseas sales team today for an exclusive quotation and facility layout design.

OmniCoat Automotive Spray Booth: Redefining Efficiency and Flawless Finishes 1
