Continuous Industrial Overhead Conveyor with Integrated Curing

MOQ: 1
Price: USD2000-USD10000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 500SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
OCCL-13
NAME:
Coating Line 13
Power Supply::
220V/50HZ/1Ph Or Other Option
Using Energy::
Electric Or Other Option
Motor::
Chinese Brand Or Import Brand
Control Sytem::
Switch Style Or PLC Touch Screen Control
Color::
White Or Other Option
Application::
Metallic Products
Coating:
10-50um
Dimention::
As Require
Product Description

Continuous Industrial Overhead Conveyor with Integrated Curing

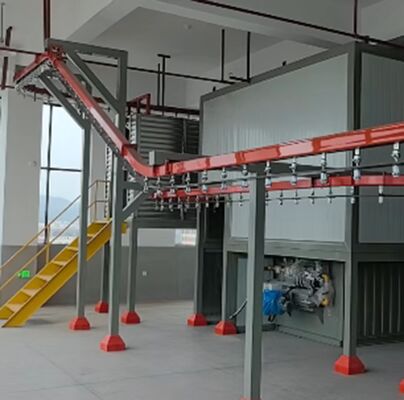

A comprehensive view of a large-scale industrial continuous overhead conveyor system with a red monorail track and small product hooks,

integrated with a grey insulated curing oven, maintenance stairs, and control panel within a factory environment.


Maximize Production Efficiency with Our Continuous Overhead Conveyor & Curing Oven


Our continuous industrial overhead conveyor system with an integrated inline curing oven is the cornerstone of modern, high-volume painting and coating operations. By integrating material handling and thermal processing into a single, automated workflow, this system dramatically reduces manual labor, ensures consistent product quality, and significantly increases your facility's throughput for applications ranging from metal part coating to final product finishing.


Key Advantages for Your Coating Line


1.Continuous, Automated Flow: Eliminate process bottlenecks and maximize uptime with uninterrupted product transport through painting, flash-off, and curing stages.

2.Precision Thermal Consistency: Engineer-optimized curing oven delivers uniform air distribution and precise temperature control, guaranteeing flawless, repeatable finishes.

3.Flexible, Modular Design: Customizable conveyor paths, track lengths, and oven zones to fit your existing facility footprint and unique production volume.

4.Significant Labor Savings: Minimize direct labor costs by automating material handling and reducing operator intervention across the entire processing line.


Technical Specifications

Parameter Specification
Conveyor System Type Continuous Monorail Track
Track Material High-Strength Box Track (Q-Track)
Maximum Load Capacity 100 kg (220 lbs) per Hook
Hook Spacing (Standard) 500 mm (19.7 in) C-C
Conveyor Speed Range 0.5 - 8.0 m/min (1.6 - 26.2 ft/min)
Conveyor Drive System Inline Caterpiller Drive with AC VFD Control
Curing Oven Type Direct Gas-Fired Convection
Oven Operating Temperature Max 250°C (482°F)
Oven Panel Construction Double-Wall, 150mm Rockwool Insulation
Heating Medium Natural Gas or LPG Burner
Control System Siemens PLC with Touch Screen HMI
Main Power Supply 3-Phase, 380V/480V, 50/60Hz
Safety Features Interlocked Guarding, Emergency Stop Stations


Continuous Industrial Overhead Conveyor with Integrated Curing 0

Continuous Industrial Overhead Conveyor with Integrated Curing 1


This comprehensive solution is engineered to optimize every aspect of your painting process.

 Contact us today to discuss your specific requirements and learn

how we can integrate this powerful system into your facility to reduce costs and elevate your product quality.


Continuous Industrial Overhead Conveyor with Integrated Curing 2
