Custom Heavy-Duty Overhead Conveyor Coating Line for Vehicle Chassis

MOQ: 1
Price: USD2000-USD10000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 500SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
Coating Line APR 14
NAME:
Coating Line APR 14
Power Supply::
220V/50HZ/1Ph Or Other Option
Using Energy::
Electric Or Other Option
Motor::
Chinese Brand Or Import Brand
Control Sytem::
Switch Style Or PLC Touch Screen Control
Color::
White Or Other Option
Application::
Metallic Products
Coating:
10-50um
Dimention::
As Require
Product Description

1.Custom Heavy-Duty Overhead Conveyor Coating Line for Vehicle Chassis


Product Description:


CoatTech is proud to announce the successful installation and commissioning of our latest Customized Heavy-Duty Overhead Conveyor Coating Line.

Engineered specifically for the rigorous demands of heavy machinery manufacturing, this system provides an optimized surface finishing solution for truck chassis, trailer frames, and large-scale industrial steel structures.


2.Two Big Function


1.Handling massive, awkwardly shaped metal components during the painting process has traditionally been a major bottleneck for heavy equipment manufacturers.

To solve this, our new coating line integrates a high-capacity overhead chain conveyor system.

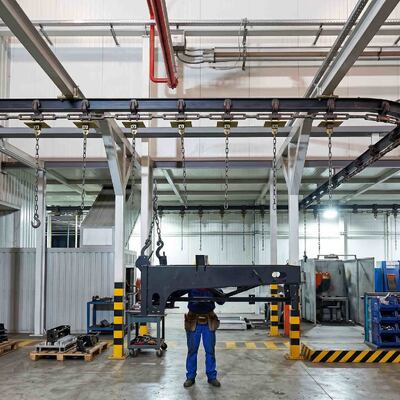

As demonstrated in our facility, the robust drop chains and custom-designed load hooks can safely and smoothly transport workpieces weighing several tons, keeping the floor space entirely clear and eliminating the need for cumbersome ground trolleys.


2.The continuous flow system allows the heavy chassis to move seamlessly from the loading area directly into our state-of-the-art spray booths and high-temperature curing ovens.

This suspended 360-degree accessibility empowers operators to apply anti-corrosive primers and topcoats flawlessly, ensuring complete coverage even in complex structural cavities.

By maintaining strict control over the airflow, paint mist filtration, and curing temperatures, this CoatTech solution dramatically increases production throughput while delivering the ultimate weather-resistant and rust-proof finish required by heavy-duty vehicles.


3.Technical Specifications:


Parameter Specification
Product Category Customized Heavy-Duty Overhead Conveyor Coating Line
Target Workpieces Commercial Vehicle Chassis, Construction Machinery Frames, Large Steel Structures
Conveyor System Type Heavy-Duty Drop Forged Rivetless Chain Conveyor
Load Capacity (Per Hook) 500 kg - 2,500+ kg (Fully customizable based on workpiece weight)
Core Process Modules Overhead Transport, Down-Draft Spray Booth, High-Temperature Curing Oven
Workpiece Accessibility 360-Degree suspended access for blind-spot-free painting
Paint Mist Filtration Multi-stage dry filter system (Water-wash/Water-curtain options available)
Compatible Coatings Anti-corrosive primers, Heavy-duty industrial topcoats, Polyurethane paints


Custom Heavy-Duty Overhead Conveyor Coating Line for Vehicle Chassis 0

Custom Heavy-Duty Overhead Conveyor Coating Line for Vehicle Chassis 1


Stop struggling with undersized equipment. Let our engineers design a heavy-duty material handling and

curing solution that matches the scale of your production. Send us your heaviest part dimensions for a free capacity assessment!


Custom Heavy-Duty Overhead Conveyor Coating Line for Vehicle Chassis 2
