Custom Heavy-Duty Overhead Conveyor Coating Line for Vehicle Chassis

MOQ: 1
Price: USD2000-USD10000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 500SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
Coating Line APR 16
NAME:
Integrated Industrial Spray & Bake Booth With Overhead Conveyor
Power Supply::
220V/50HZ/1Ph Or Other Option
Using Energy::
Electric Or Other Option
Motor::
Chinese Brand Or Import Brand
Control Sytem::
Switch Style Or PLC Touch Screen Control
Color::
White Or Other Option
Application::
Metallic Products
Coating:
10-50um
Dimention::
As Require
Product Description

1.Advanced Custom Industrial Spray Booth System Integrated with Heavy-Duty Conveyor Track


Product Description:


In the manufacturing of heavy-duty equipment, the quality of the surface coating directly dictates the lifespan and reliability of the final product. To meet the exacting standards of our global industrial clients, CoatTech has launched a fully integrated, customized Industrial Spray Booth and Baking System, uniquely designed to operate in tandem with heavy overhead conveyor tracks.


2.Two Big Function

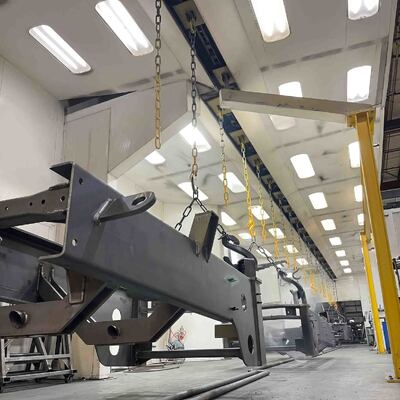

What sets this system apart is its structural ingenuity. The heavy-duty conveyor track is seamlessly integrated into the reinforced roof skeleton of the spray booth cabin.


This innovative layout allows massive steel frames to be safely suspended inside the cabin without compromising the structural integrity of the booth.


Inside, the working environment is highly optimized. Brilliant, explosion-proof LED lighting arrays eliminate shadows, providing painters with perfect visibility for precision application on complex chassis geometries.


Furthermore, the booth is engineered with a high-efficiency downdraft ventilation system. Fresh air is evenly distributed from the ceiling plenum,


while overspray and VOCs are swiftly pulled down into the heavy-duty floor gratings and multi-level filtration system.


This ensures a safe, clean breathing zone for operators and prevents paint defects caused by dust or drifting overspray.


From dimensional planning to the final PLC control integration, this turnkey coating system can be customized to fit the exact footprint of your workshop and the precise cycle times of your production line.


3.Technical Specifications:


Parameter Specification
System Name Integrated Industrial Spray & Bake Booth with Overhead Conveyor
Operational Mode Continuous Flow line or Step-by-Step Indexing (Configurable)
Cabin Construction High-density Rockwool insulated panels with reinforced steel load-bearing frame
Conveyor Integration Roof-mounted reinforced I-beams compatible with heavy-duty drop chains
Illumination System High-intensity, shadow-free, explosion-proof LED lighting arrays
Ventilation & Airflow Ceiling downdraft plenum with heavy-duty underfloor exhaust and filtration
Heating System Diesel Burner / Natural Gas Burner / Electric Infrared (Optional)
Control System Centralized PLC touchscreen panel with safety interlocks and temp monitoring
Dimensions & Layout 100% Customized according to factory layout and maximum workpiece size


Custom Heavy-Duty Overhead Conveyor Coating Line for Vehicle Chassis 0

Custom Heavy-Duty Overhead Conveyor Coating Line for Vehicle Chassis 1


Stop struggling with undersized equipment. Let our engineers design a heavy-duty material handling and

curing solution that matches the scale of your production. Send us your heaviest part dimensions for a free capacity assessment!


Custom Heavy-Duty Overhead Conveyor Coating Line for Vehicle Chassis 2
