Heavy-Duty Overhead Conveyor Coating Line For Automotive Axles

MOQ: 1
Price: USD2000-USD10000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 500SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
Coating Line APR 14
NAME:
Coating Line APR 14
Power Supply::
220V/50HZ/1Ph Or Other Option
Using Energy::
Electric Or Other Option
Motor::
Chinese Brand Or Import Brand
Control Sytem::
Switch Style Or PLC Touch Screen Control
Color::
White Or Other Option
Application::
Metallic Products
Coating:
10-50um
Dimention::
As Require
Product Description

1.Heavy-Duty Overhead Conveyor Coating Line For Automotive Axles & Heavy Machinery


Brand: CoatTech
MOQ: 1 Set
Price: USD 5,000 - USD 15,000 / SET (Customizable based on layout)


2.Product Overview:


Engineered for the rigorous demands of industrial manufacturing, the CoatTech Heavy-Duty Overhead Conveyor System is the ultimate solution for transporting dense,

heavy components such as automotive differential and axle housings.

This continuous chain conveyor ensures smooth and stable movement through pretreatment, spraying, and curing zones. By minimizing sway and offering precise positioning,

this system is designed to engineer out your production bottlenecks, maximize floor space, and drastically improve workflow efficiency for high-volume factory production.


3.Technical Sheet

Parameter Specification
System Type Continuous Overhead Chain Conveyor
Track Profile High-Carbon Steel Enclosed Track / I-Beam
Load Capacity per Hanger Up to 1,000 kg (Customizable based on component weight)
Chain Pitch 150mm / 200mm / 250mm (Heavy-Duty Drop Forged)
Operating Speed 0.5 - 5.0 m/min (Variable Frequency Drive Adjustable)
Drive Unit Drive with Overload Protection
Tension Device Counterweight or Pneumatic Tensioner
Lubrication System Automatic Micro-Mist Lubricator
Temperature Resistance Up to 250°C (Suitable for curing ovens)
Primary Application Cast iron parts, automotive axles, heavy machinery

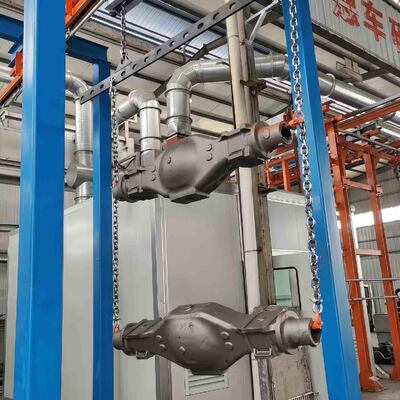

Heavy-Duty Overhead Conveyor Coating Line For Automotive Axles 0

Heavy-Duty Overhead Conveyor Coating Line For Automotive Axles 1


Contact us today to integrate this conveyor into your existing setup.


Heavy-Duty Overhead Conveyor Coating Line For Automotive Axles 2
