Heavy-Duty Overhead Conveyor Systems | Automated Finishing

MOQ: 1
Price: USD2000-USD10000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 500SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
Industrial Spray Booth for Large LPG Tanks
NAME:
Heavy-Duty Overhead Conveyor Systems | Automated Finishing
Power Supply::
220V/50HZ/1Ph Or Other Option
Using Energy::
Electric Or Other Option
Motor::
Chinese Brand Or Import Brand
Control Sytem::
Switch Style Or PLC Touch Screen Control
Color::
White Or Other Option
Application::
Metallic Products
Coating:
10-50um
Dimention::
As Require
Highlight:

heavy-duty overhead conveyor systems

,

automated finishing conveyor line

,

overhead conveyor coating system

Product Description

Heavy-Duty Overhead Conveyor Systems | Automated Finishing

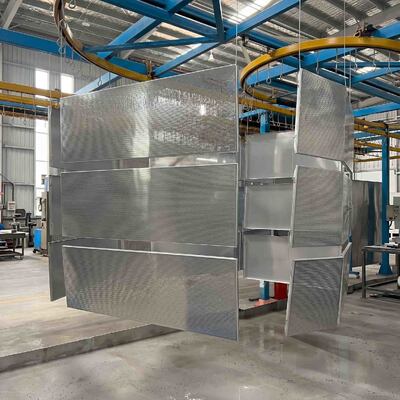

A heavy-duty overhead conveyor system continuously transporting large metal panels through an automated industrial powder coating and baking line.

Engineered Overhead Conveyor Systems for Automated Finishing Lines


Streamline your material handling and surface treatment processes with our advanced overhead conveyor systems. Specifically engineered for continuous, high-volume production, these robust chain-driven solutions seamlessly integrate into powder coating booths, high-temperature curing ovens, and complex assembly lines. By effectively utilizing your facility's ceiling space, our systems not only free up valuable floor footprint but also ensure the smooth, jerk-free transportation of heavy and cumbersome industrial components, ultimately boosting throughput and minimizing manual handling errors.


Key Advantages


1.Maximized Floor Space: The suspended, ceiling-mounted design efficiently utilizes vertical plant space, keeping the ground clear for other critical manufacturing tasks and machinery.


2.Exceptional High-Temperature Reliability: Constructed with heat-resistant forged components and equipped with specialized lubrication, the chain operates flawlessly inside high-temperature curing ovens and paint baking rooms.


3.Smooth & Surge-Free Travel: Precision-engineered drive units and tensioning mechanisms eliminate chain surging, ensuring uniform paint application and preventing product sway or damage during transit.


4.Versatile Track Routing: Featuring a highly adaptable modular design with tight horizontal and vertical curve radii, the track layout can be customized to navigate your specific facility layout.


5.Heavy-Duty Load Capacity: Drop-forged carbon steel chains and robust trolleys provide superior tensile strength, effortlessly accommodating heavy automotive parts and large metal enclosures.


3. Technical Specifications


Parameter Specification
System Type Enclosed Track / I-Beam Overhead Chain Conveyor
Chain Material Drop-Forged Carbon Steel / Heat-Treated Alloy Steel
Load Capacity per Hanger 30 kg - 500+ kg (Configurable based on track type)
Operating Temperature Up to 250°C (482°F) with high-temperature lubrication
Drive Unit Power 1.5 kW - 5.5 kW equipped with Variable Frequency Drive (VFD)
Chain Speed 0.5 - 10 meters per minute (Infinitely adjustable)
Track Curve Radius Horizontal: ≥ 600mm / Vertical: ≥ 800mm (Customizable)
Lubrication System Automated Programmable Oil Mist / Drip Lubricator
Primary Applications Powder Coating Lines, Paint Baking Rooms, Assembly Automation

Heavy-Duty Overhead Conveyor Systems | Automated Finishing 0

Heavy-Duty Overhead Conveyor Systems | Automated Finishing 1


Upgrade your industrial finishing and coating lines with our high-capacity overhead conveyor systems for seamless operations. Request a quote today!


Heavy-Duty Overhead Conveyor Systems | Automated Finishing 2
