Automated Ground Spindle Conveyor System for Automotive & Industrial Coating

MOQ: 1
Price: USD8000-USD12000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 30SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
CT-GSC
Power Supply::
380V/50HZ/3Ph Or Other Option
Using Energy::
Diesel,gas,steam,electric Or Other Option
Main Door::
Fold Style Or Electric Rolling Style
Application::
Bus/truck Or Other Metallic Products
Energy Sources::
Water, Electricity,gas
Coating:
10-50um
Noise Level:
≤80dB
Material:
Steel
Usage:
Automotive Painting, Furniture Painting, Industrial Painting
Heating System:
Riello Brand Burner
Highlight:

automated ground spindle conveyor system

,

floor rail coating line for automotive

,

industrial coating conveyor with spindle

Product Description

Automated Ground Spindle Conveyor System: High-Precision Solution for Automotive & Industrial Coating


Introduction:
Elevate your coating production efficiency with the CoatTech Automated Ground Spindle Conveyor System. Specifically engineered for high-volume, high-precision finishing, this system is the ideal choice for automotive exterior parts (such as car doors, bumpers, and mirror caps) and complex industrial components. By integrating stable mechanical motion with cleanroom-grade design, CoatTech ensures every workpiece achieves a flawless, consistent finish.


Key Features & Benefits:


1.Precision Movement Control: Equipped with advanced PLC and frequency conversion technology, ensuring smooth, vibration-free transport essential for high-quality spraying.


2.Cleanroom-Grade Compatibility: Designed with a low-profile, easy-to-clean structure and green epoxy floor compatibility, minimizing dust turbulence in the spray booth.


3.Versatile Jig System: The triangular fixture design (as seen in the visuals) supports various large-scale panels, including car doors and hoods, ensuring 360-degree spray accessibility.


4.Energy-Efficient Operation: Optimized motor performance reduces power consumption while maintaining high throughput for 24/7 industrial production.


5.Modular & Scalable: The track length and spindle spacing can be customized to fit your specific factory layout and production capacity requirements.


Technical Specifications


Parameter Specifications
Product Model CoatTech CT-GSC Series
Conveyor Type Ground-mounted Spindle / Chain Conveyor
Main Material Reinforced Carbon Steel / Stainless Steel Rail
Drive System AC Motor with Variable Frequency Drive (VFD)
Running Speed 0.5 – 6.0 m/min (Adjustable)
Max Load Capacity 50kg per Spindle/Fixture
Control System Siemens/Delta PLC with Touch Screen HMI
Fixture Rotation Optional 90° / 180° / 360° Automatic Indexing
Working Environment Class 1000 - 10,000 Cleanroom Compatible
Safety Features Emergency Stop Buttons, Limit Switches, Overload Protection
Applications Car Doors, Bumpers, Home Appliances, Electronic Housing


Application Scenarios:


Automotive Industry: Prime, base, and clear coating for plastic and metal exterior parts.


Consumer Electronics: Automated painting for laptop covers and smart home device shells.


Industrial Equipment: High-durability powder or liquid coating for precision components.

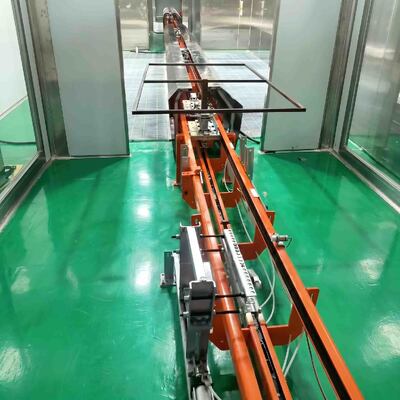

Automated Ground Spindle Conveyor System for Automotive & Industrial Coating 0


Contact Us Today Ready to optimize your heavy equipment coating process?

Contact Tim, Overseas Marketing & Sales Manager, to discuss your custom spray booth requirements and secure a technical consultation.



Automated Ground Spindle Conveyor System for Automotive & Industrial Coating 1
