Superbake Industrial Paint Booth KT-PQ-III-PLUS | CoatTech

MOQ:	1
Price:	USD8000-USD12000/SET
Standard Packaging:	With regular Film and Carton
Delivery Period:	15 DAYS After Deposit
Payment Method:	T/T
Supply Capacity:	30SET/MONTH

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

CoatTech

Certification

Model Number

Top-Open Spray Paint Booth for Transformers

Power Supply::

380V/50HZ/3Ph Or Other Option

Using Energy::

Diesel,gas,steam,electric Or Other Option

Main Door::

Fold Style Or Electric Rolling Style

Application::

Bus/truck Or Other Metallic Products

Energy Sources::

Water, Electricity,gas

Coating:

10-50um

Noise Level:

≤80dB

Material:

Steel

Usage:

Automotive Painting, Furniture Painting, Industrial Painting

Heating System:

Riello Brand Burner

Product Description

Superbake Industrial Paint Booth (Model: KT-PQ-III-PLUS) | Heavy-Duty & Explosion-Proof

Meta Description: Engineered for heavy-duty commercial vehicles and large industrial parts. The CoatTech Superbake Paint Booth features IP65 explosion-proof lighting, advanced HVAC, and dual-heating options. Get a turnkey solution today.

Product Overview

The CoatTech Superbake Industrial Paint Booth (Model: KT-PQ-III-PLUS) is a premium, large-scale surface finishing solution engineered for high-capacity industrial applications. With an expansive internal dimension of 8000 × 5000 × 4500 mm, this booth is purpose-built to accommodate heavy-duty commercial vehicles, large aerospace components, and oversized industrial machinery.

Designed to meet the stringent safety and environmental standards of global markets (including the Middle East and Europe), the KT-PQ-III-PLUS integrates IP65 explosion-proof lighting, a high-efficiency 4-stage filtration system, and a customizable HVAC unit. Whether you require a high-performance Riello diesel burner or a robust electric heating system, this booth delivers rapid curing times and flawless finishes.

Core Features & Advantages

Maximum Safety (Explosion-Proof Design): Equipped with dedicated IP65 explosion-proof LED light boxes and double-layer sealing gaskets, ensuring compliance in high-risk industrial environments.

Rapid Thermal Curing: Achieve baking temperatures (20℃ to 60℃) in just 10-15 minutes. Choose between the industry-leading Riello G20 Diesel Burner (with a 200KW 304 stainless steel heat exchanger) or a 72KW Stainless Steel Electric Heating system.

Intelligent Airflow Management: Powered by dual 7.5KW external rotor centrifugal intake fans and an 11KW exhaust fan, generating a massive 40,000 m³/h airflow. Features precision Belimo electric dampers for seamless transition between spraying and baking modes.

Heavy-Duty Structural Integrity: Constructed with 70mm high-strength EPS insulated wall panels and a reinforced front door frame (4400 × 4400 mm) capable of handling continuous, heavy-industrial use.

Eco-Friendly 4-Stage Filtration: Incorporates EN 779 G3/F5 rated filters and an Active Carbon Granular Filter to effectively absorb VOCs, benzene, and xylene, ensuring clean exhaust and a safe breathing environment for operators.

Superbake Industrial Paint Booth KT-PQ-III-PLUS | CoatTech 0

Technical Specifications

Parameter / Component	Specification Details

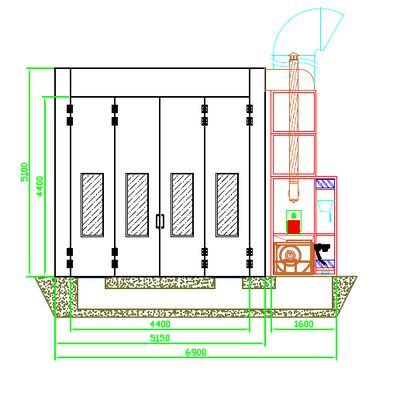

Inside Size	8000 × 5000 × 4500 mm (L × W × H)
Outside Size	8135 × 6900 × 5100 mm (L × W × H)
Civil Pit / Floor	2 pits required in the middle of the booth. Size: 760 × 6900 mm, Depth: 800 mm. Covered with 30x4 flat steel gratings, load capacity: 500 kg/m².
Main Door	4400 × 4400 mm (W × H); Sheet metal bending door with square tube frame, filled with EPS core material. Equipped with tempered glass observation windows. High structural strength, easy to open and close.
Personnel / Service Door	800 × 2000 mm (W × H); 1 unit located at the right front. Equipped with an automatic pressure relief lock and a tempered glass observation window.
Wall Panels	High-strength insulated EPS wall panels. Effective width: 1150 mm, Total thickness: 70 mm. 0.426 mm thick white color steel sheet on both sides with EPS core.
Roof Panels	High-strength insulated EPS roof panels. Effective width: 1150 mm, Total thickness: 50 mm. 0.426 mm thick white color steel sheet on both sides with EPS core.
Lighting System	Top Lighting (2 rows): 10 sets × 4 pcs = 40 pcs of 22W tubes. Side Lighting (2 rows): 10 sets × 4 pcs = 40 pcs of 22W tubes. Dedicated T8 LED tubes for paint booths. IP65 explosion-proof light boxes. Illuminance ≥ 1000 LUX.
Plenum (Static Pressure Chamber)	8000 × 5000 × 600 mm (L × W × H); Square tube support bracket. Bottom features powder-coated sheet metal filter frame and top filter support net.
Cabinet Unit	Square tube welded cabinet, positioned on the right side.
Intake Air Cabinet (Ventilation)	2 units of external rotor double-inlet centrifugal fans. Power per motor: 7.5 KW. Fan model: YDW-5.6M. Total airflow: 40,000 m³/h. No-load air speed: 0.25 m/s. Equipped with Belimo electric damper for intake air and pneumatic damper for circulation.
Exhaust Air Cabinet	1 unit of double-inlet centrifugal fan, belt-driven. Motor power: 11 KW. Fan model: TAE-710H. Total airflow: 40,000 m³/h. Equipped with manual/electric adjustable exhaust damper.
Heating System: Option 1 (Diesel)	Riello G20 Diesel Burner. 304 stainless steel 200 KW heat exchanger. Spraying without heating. Baking: Heats from 20℃ to 60℃ in 10-15 minutes.
Heating System: Option 2 (Electric)	Stainless Steel Electric Heating Tubes. 304 stainless steel tubes (3 KW per tube, 24 tubes in total, total power 72 KW). Spraying without heating. Baking: Heats from 20℃ to 60℃ in 10-15 minutes.
Filtration System	1. Intake Pre-filter: EN 779 Class G3. 2. Ceiling Filter (Sub-high Efficiency): Full-depth 3D adhesive, EN 779 Class F5. 3. Fiberglass Paint Stop Filter: 1st layer on the pit, 2nd layer at the bottom of the exhaust cabinet. Green on windward side, white on leeward side (EN 779 Class G3). 4. Active Carbon Granular Filter: Absorbs benzene and xylene from exhaust gas.
Control System	Control Panel: Standard relays and control buttons. Functions: Spraying, baking, baking time setting, lighting switch, fault alarm, power, emergency stop switch, pressure gauge. (Note: Control box is non-explosion-proof; Lighting uses explosion-proof wiring, explosion-proof flexible conduits, and explosion-proof control boxes).
Ducting System	Includes 4 straight exhaust ducts (1000 × 1000 × 1000 mm), one 90° elbow, and one 45° elbow.
Compressed Air Pipeline	1 set of DN20 stainless steel compressed air pipeline, equipped with one quick connector on both the left and right sides.
Total Power Requirements	33 KW (If using Diesel Heating) / 80 KW (If using Electric Heating).
Documents Included	Maintenance manual, circuit diagram, certificate of conformity, packing list, and 3D equipment drawings.
Warranty & Remarks	1. 2-Year Warranty. Supplier provides free service for equipment quality issues during warranty. 2. Consumables (lighting tubes, filters) and human-caused damage are not covered.

Superbake Industrial Paint Booth KT-PQ-III-PLUS | CoatTech 1

The extensive footprint and high load capacity of the KT-PQ-III-PLUS make it the perfect spray-and-bake solution for:

Commercial Transport: Buses, heavy-duty trucks, and trailers.

Construction & Engineering Machinery: Excavators, cranes, and tractors.

Industrial Manufacturing: Large structural steel parts, wind turbine components, and oil & gas equipment.

EPC Projects: Turnkey facility installations for overseas manufacturing hubs.

Need a Custom Solution?

Every industrial facility is unique. Our engineering team can customize the dimensions, voltage (e.g., 380V/50Hz/3Phase), to suit your local climate and specific project requirements.

Tags:

car spray booth,
