High-Efficiency Automated Spindle Coating Line

MOQ: 1
Price: USD2000-USD10000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 500SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
Coating Line 15
NAME:
High-Density Automated Spindle Coating Line
Power Supply::
220V/50HZ/1Ph Or Other Option
Using Energy::
Electric Or Other Option
Motor::
Chinese Brand Or Import Brand
Control Sytem::
Switch Style Or PLC Touch Screen Control
Color::
White Or Other Option
Application::
Metallic Products
Coating:
10-50um
Dimention::
As Require
Product Description

High-Efficiency Automated Spindle Coating Line
Redefining Mass Production Painting and Coating Efficiency


In the competitive landscape of industrial manufacturing, throughput and consistency are paramount. The high-density Automated Spindle Coating Line is engineered to deliver flawless, high-volume finishing for small to medium-sized cylindrical or complex parts. Designed to integrate seamlessly with your existing infrastructure, this system is the ultimate solution for mass-producing high-quality coated components.


How the Automated Spindle System Works


Our automated chain-on-edge (spindle) system utilizes a continuous, multi-tiered conveyor structure. Components are loaded onto specialized vertical spindles (as seen in our high-density array design) that rotate as they pass through the spraying or dipping zones. This 360-degree rotation ensures an even, precise coating application on every single part, eliminating dead angles and reducing material waste.


Key Features & Production Benefits


1.High-Density Batch Processing: The multi-tiered, paralleled track design allows hundreds of components to be processed simultaneously within a highly compact footprint, drastically multiplying your hourly output.


2.Precision 360° Rotation: Spindles automatically rotate components in the active coating zone, guaranteeing uniform film thickness and a flawless cosmetic finish.


3.Seamless Integration: Fully compatible with standard liquid painting, powder coating, or specialized anti-static coating environments.


4.Automated Transport & Curing: Integrated with smooth conveyor systems that transition parts seamlessly from the loading zone, through the spray booth, and into the curing oven without manual intervention.


Durable Anti-Static Design: Built with high-grade stainless steel and specialized tooling to maintain a clean-room level environment, ensuring zero contamination during the coating process.


Technical Specifications


Parameter Specification Unit
Equipment Name High-Density Automated Spindle Coating Line -
Application Mass production spraying/coating for small/medium parts -
Conveyor Type Chain-on-Edge / Rotational Spindle System -
Typical Line Speed 1.0 - 5.0 (Variable Frequency Drive Adjustable) m/min
Component Pitch (Distance) Customizable (e.g., 50.8 / 101.6) mm
Spindle Rotation Speed 10 - 150 (Adjustable in Spray Zone) RPM
Structural Material High-Strength Anodized Aluminum & 316 Stainless Steel -
Coating Methods Supported Liquid Spray, Powder Coating, Dip Coating -
System Tiers Multi-level customizable (e.g., 2 to 4 tiers) Levels
Part Loading/Unloading Manual or Robot-Assisted Auto-loading compatible -
Control System  PLC with Touchscreen HMI -
Max Working Temperature Up to 250°C (If routed through curing oven) °C
Power Requirements 3-Phase 380V, 50Hz (Customizable for global markets) V / Hz

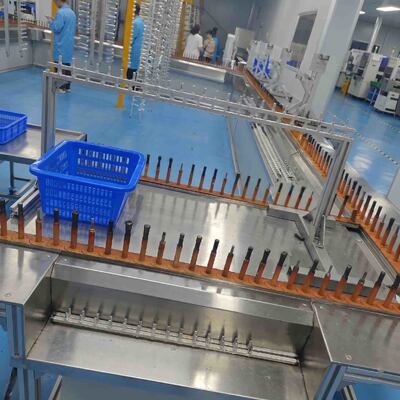

High-Efficiency Automated Spindle Coating Line 0



Ready to Elevate Your Finish Quality and Boost Efficiency?

Contact CoatTech Today for a Customized Automatic Painting Line Quote.


High-Efficiency Automated Spindle Coating Line 1
