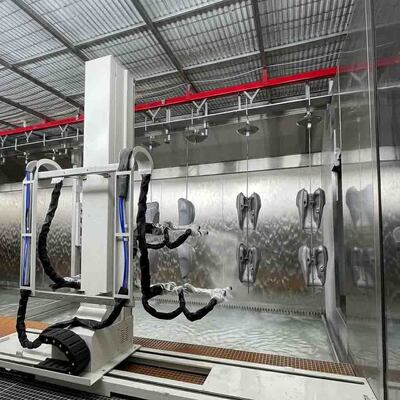

Automated Robotic Spray Painting Line with Water Curtain Booth

Automated Robotic Spray Painting Line with Water Curtain Booth

In modern industrial manufacturing, achieving flawless surface finishing while maintaining high production efficiency and environmental compliance is a significant challenge. Traditional manual spraying often suffers from inconsistent coating quality, high material wastage, and health hazards for operators.

Our Automated Robotic Spray Painting Line with Water Curtain Booth is engineered to solve these points. By combining multi-axis robotic precision with high-efficiency water wash overspray filtration, this integrated system delivers unparalleled coating uniformity, eco-friendly operations, and maximum throughput for mass production.

Key Performance Features

1. High-Precision Multi-Axis Robotic Spraying
The system utilizes a programmable, multi-axis industrial painting robot capable of executing complex spray paths with millimeter-level accuracy.

Uniform Film Thickness: Eliminates human error, ensuring consistent paint thickness across flat, curved, and intricate geometries.

Optimized Paint Transfer Efficiency: Precise spray gun triggering reduces paint consumption and minimizes overspray waste.

Rapid Recipe Switching: Store multiple part programs in the PLC system for quick changeovers between different product lines.

2. Advanced Eco-Friendly Water Curtain Technology

The back wall of the spray booth features a continuous, high-velocity flowing water curtain designed to capture suspended paint mist instantly.

Superior Overspray Capture: Airborne paint particles are drawn into the water wash vortex, preventing paint accumulation on the workpiece and booth interior.

Enhanced Air Purification: Significantly reduces VOC (Volatile Organic Compound) emissions and paint odors in the workshop.

Low Maintenance Design: Built with high-grade stainless steel to resist corrosion and simplify the cleaning of paint sludge.

3. Continuous Overhead Conveyor System

Designed for seamless factory automation, the heavy-duty suspended conveyor track transports workpieces continuously through the loading, spraying, flash-off, and curing zones.

Synchronized Speed Control: Conveyor speed is fully synchronized with the robotic arm's spraying cycle to prevent bottlenecks.

Customized Jig Hanging: Tailored hooks and rotational jigs ensure 360-degree spray coverage for complex parts.

System Work Process

Loading & Pre-treatment: Workpieces (such as motorcycle fuel tanks, automotive parts, or hardware) are securely hung onto the overhead conveyor jigs.

Automated Sensing: Optical sensors detect the incoming workpiece and trigger the corresponding robotic painting program.

Precision Coating: The robotic arm executes the pre-programmed trajectory, applying primer, basecoat, or topcoat with optimal fluid pressure.

Overspray Filtration: Excess paint mist is drawn into the water curtain wall by high-capacity exhaust fans, trapping the particles in the water filtration pool.

Transport to Curing: The coated parts move continuously to the flash-off area and drying oven for thermal curing.

Technical Specifications

Industrial Applications

This automated coating system is highly versatile and widely deployed across industries requiring high-volume, premium surface finishes:

Automotive & Motorcycle Parts: Fuel tanks, bumpers, side mirrors, rims, and plastic trim components.

Household Appliances: Refrigerator panels, washing machine housings, and air conditioner frames.

Hardware & Machinery: Valves, pump housings, cast iron parts, and metal enclosures.

Electronic Products: Laptop shells, communication equipment casings, and consumer electronics.

Frequently Asked Questions (FAQ)

How does the water curtain booth improve environmental safety?
The water curtain acts as a physical scrubber. When overspray hits the flowing water wall, the paint solids are instantly trapped and washed down into a filtration tank. This prevents hazardous paint dust from exhausting into the atmosphere and significantly lowers VOC concentrations within the facility, ensuring alignment with strict local environmental regulations.

Can this system handle different product sizes on the same line?
Yes. Thanks to smart sensing technology and advanced PLC programming, the robot can identify different parts on the conveyor line and automatically switch to the pre-loaded spraying profile for that specific component without stopping the line.

Request a Custom Engineering Proposal
Our engineering team specializes in designing turnkey automated coating solutions tailored to your specific workshop layout, production capacity, and workpiece dimensions. Contact us today to receive a detailed layout drawing and an ROI analysis for your facility.

Ready to upgrade your industrial finishing capabilities?

Contact our engineering team to design a customized surface finishing solution that meets your precise operational requirements and layout.
