Revolutionizing Surface Finishing: The Complete Guide to Automatic Spindle Rotating Spray Coating Lines

In modern industrial manufacturing, achieving a flawless, uniform finish on high-volume, complex, or circular components is a critical production bottleneck. Manual spraying often leads to uneven thickness, excessive material waste, and high labor dependency. The Automatic Spindle Rotating Spray Coating Line engineered by CoatTech solves these core challenges by merging high-speed continuous chain conveyors with 360-degree component rotation and precision multi-axis automated spray guns.

Whether you are coating automotive parts, consumer electronics, or cosmetic packaging, this automated system guarantees impeccable repeatability, reduced operational costs, and optimized coating efficiency.

How It Works: High-Speed Precision in Action

The automatic spindle coating line functions through a highly synchronized, continuous mechanical workflow:

1.Loading & Conveying: Components are securely mounted onto specialized vertical fixtures (spindles) attached to a heavy-duty chain conveyor system.

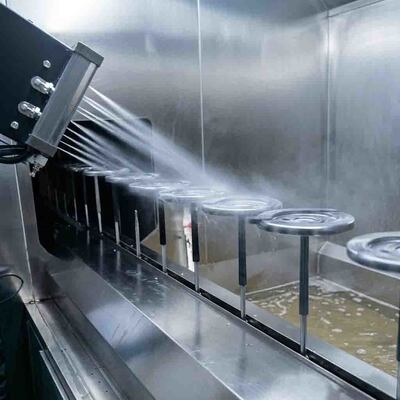

2.High-Speed Self-Rotation: As the conveyor transports the parts into the enclosed spray zone, a mechanical drive mechanism engages the spindles, causing the components to rotate rapidly on their own axes.

3.Automated Multi-Angle Spraying: An advanced array of automatic spray guns moves along programmed axes, delivering a continuous, micro-atomized layer of liquid paint, protective topcoats, or surface treatment agents.

4.Overspray Capture & Filtration: Beneath and behind the spraying zone, a robust stainless steel extraction chamber (such as a water-curtain cabinet or dry filter matrix) draws away excess paint mist, maintaining environmental compliance and a clean workspace.

Key Features and Advantages

1.360° Uniform Coating Coverage: By forcing the workpieces to rotate at high speeds directly in front of the atomizing nozzles, the system completely eliminates shading and blind spots. Every angle receives an identical coating thickness, making it ideal for cylindrical, spherical, and asymmetrical components.

2.Multi-Axis Intelligent Spray Gun Array: The spray zone features highly adjustable automatic gun mounts. Operators can precisely configure the spraying distance, fan pattern width, fluid pressure, and angling to match the exact geometry of different product batches.

3.Continuous High-Volume Output: Unlike batch-type static spray booths, the continuous chain conveyor configuration maximizes throughput. It operates seamlessly, shifting components from the loading zone, through the coating booth, and directly into curing or flash-off tunnels without manual intervention.

4.Eco-Friendly Paint Mist Recovery: Constructed entirely from premium SUS304 stainless steel, the exhaust booth utilizes optimized airflow dynamics to trap overspray. This significantly extends the lifespan of internal components, protects operators from VOC exposure, and simplifies routine maintenance.

Typical Applications

This versatile automation line is widely utilized across industries requiring high-aesthetic or high-durability surface finishes:

Cosmetics & Packaging: Plastic and metal lotion pumps, perfume bottle closures, and lipstick tubes.

Automotive Industry: Interior knobs, exterior badges, cylindrical sensors, and wheel hubs.

Consumer Electronics: Audio volume dials, phone case frames, and smart appliance control elements.

Hardware & Tools: Door handles, cylindrical locks, plumbing fixtures, and mechanical parts.

Technical Specifications

Elevate Your Production Standard Today

Transitioning from manual or semi-automated coating to a fully integrated Automatic Spindle Rotating Spray Coating Line dramatically minimizes paint consumption, stabilizes your yield rate, and drives down per-unit labor costs.
