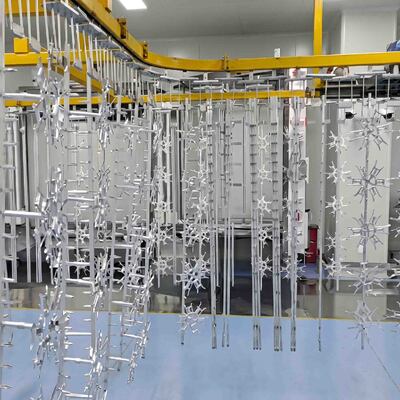

Next-Gen Automated Overhead Conveyor System for Precision Industrial Coating Lines

Next-Gen Automated Overhead Conveyor System for Precision Industrial Coating Lines

Product Overview

The Automated Overhead Conveyor System is a high-efficiency, continuous-loop material handling solution engineered specifically for modern industrial surface treatment, liquid painting, powder coating, and cleanroom spray booth lines. Designed to maximize throughput while minimizing manual handling, this intelligent overhead chain conveyor provides seamless, synchronized transport of components through pre-treatment, masking, automatic spraying, flash-off, and high-temperature curing ovens.

With its robust tracking, dust-free configuration, and fully customizable jigging systems, it represents the ideal automation upgrade for high-precision manufacturing sectors including automotive components, aerospace parts, consumer electronics, and industrial machinery.

Key Features & Product Benefits

1. Superior Cleanroom Compatibility & Contamination Control

Engineered with enclosed track designs and advanced anti-static, dust-free lubrication technologies, this conveyor system eliminates mechanical debris and oil dripping. It maintains the strict environmental integrity required for Class 10,000 cleanroom paint booths, significantly reducing defect rates caused by airborne particulates.

2. Intelligent Speed Regulation & Precise Positioning

Equipped with state-of-the-art Variable Frequency Drive (VFD) motors and integrated PLC control systems, the conveyor offers infinite speed adjustment. This allows perfect synchronization with automated robotic sprayers, reciprocating machines, and specific flash-off or curing dwell time requirements.

3. Space-Optimized Multi-Axis Routing

The flexible tracking system can execute tight horizontal turns, vertical inclines, and declines. This multi-axis layout capability maximizes the use of vertical factory space, minimizes the overall footprint of the coating line, and allows seamless transit between different floors or processing chambers.

4. Heavy-Duty Reliability & Low Maintenance

Featuring forged chain links, high-tensile alloy tracks, and automatic tensioning devices, the system ensures stable continuous operation under high thermal loads (up to 250°C inside curing ovens) with extended maintenance intervals.

5. Tailored Load-Bearing Jigs & Hangers

Every system is paired with custom-engineered vertical racks, multi-arm hangers, or rotating jigs. These are precision-designed to maximize batch density, ensure optimal grounding for electrostatic spraying, and provide 360-degree exposure to automatic spray nozzles.

Technical Specifications

Industrial Applications

1.Automotive & Transport: Automotive trim, alloy wheels, e-bike frames, and structural chassis parts.

2.Electronics & Robotics: Drone frames, computer housings, lighting fixtures, and precision instrument casings.

3.Industrial Equipment: Ventilation fan hubs, pump housings, valves, and agricultural machinery components.

4.Hardware & Consumer Goods: Household appliances, metal furniture, and architectural metal panels.

Frequently Asked Questions (FAQ)

Q1: What is the maximum load capacity per hanger for this overhead conveyor system?
A: Our standard enclosed track overhead conveyor supports up to 100 kg per single hanging point. For heavier industrial components, we design and supply heavy-duty Power & Free conveyor networks capable of handling loads from 500 kg to over 2,000 kg per carrier unit by distributing the weight across multiple trolley wheels.

Q2: Is this system fully compatible with high-temperature curing ovens?
A: Yes, absolutely. The track steel, chain alloy, bearing packs, and guiding wheels are specifically treated and paired with high-temperature lubricants designed to withstand continuous exposure inside baking and curing ovens operating at temperatures up to 250°C without deformation or structural degradation.

Q3: How does the conveyor system prevent dust and oil contamination inside cleanroom paint booths?

A: We utilize an enclosed track profile that traps structural friction particles inside the rail. Additionally, the system incorporates automated oil-free or micro-mist lubrication mechanisms that prevent excess grease accumulation. Anti-static components and dust-shields are mounted directly above the active spray zones to fully protect the wet paint film from contamination.

Q4: Can the system be integrated into our existing factory PLC network and automated spray robots?A: Yes. The conveyor's control panel features standard industrial communication protocols (such as Modbus, Profinet, or Ethernet/IP). This allows seamless master-slave synchronization with automatic paint-spraying robots, reciprocating guns, and central plant management software for real-time speed adjusting and fault monitoring.

Q5: Do you provide custom engineering for specialized hanging jigs and processing racks?
A: Yes. We offer comprehensive design services for custom hangers and rotational jigs. Based on your specific component CAD drawings, we engineer racks that optimize piece-density per meter, guarantee correct drainage angles for liquid pre-treatment, and ensure perfect electrical grounding required for high-efficiency electrostatic powder or liquid coating.

Ready to Elevate Your Finish Quality and Boost Efficiency?

Contact CoatTech Today for a Customized Automatic Painting Line Quote.
