Maximize production efficiency with our Industrial Infrared Curing Spray Booth. Features energy-saving infrared heating, even temperature distribution, and heavy-duty structural design.

Product Overview

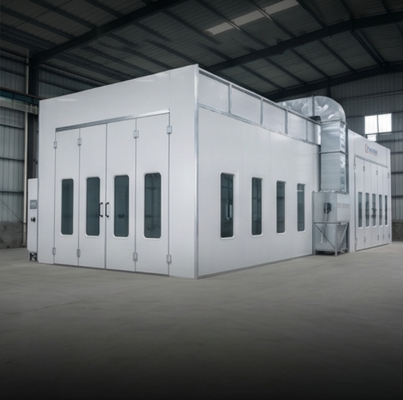

Designed for high-throughput industrial applications, this premium spray booth integrates advanced short-wave infrared heating technology. Unlike traditional diesel or gas burners, the infrared baking system directly heats the painted substrate, drastically reducing curing times, minimizing energy consumption, and delivering a flawless, mirror-like finish. Ideal for automotive parts, industrial machinery, and furniture manufacturing.

Key Features

1.Rapid Curing Technology: Infrared lamps provide instantaneous heat, reducing drying time by up to 50% compared to convection heating.

2.Energy Efficiency: Direct-to-substrate heating eliminates the need to heat the entire cabin air mass, significantly lowering operational costs.

3.Zonal Control: Independent switches for different lamp groups allow for localized baking, perfect for partial touch-ups or small components.

4.Heavy-Duty Enclosure: Constructed with premium insulated EPS/Rockwool wall panels for optimal thermal retention and structural integrity.

Technical Specifications

See It In Action:

Seeing is believing. Check out our detailed step-by-step video guide to see how efficiently a CoatTech spray booth is assembled on-site through Youtube Video

https://youtu.be/lzobBHWHaWE

Frequently Asked Questions (FAQ)

Q1: What are the primary advantages of combining a downdraft system with infrared curing lamps?
A: This combination offers the ultimate environment for a flawless finish. The full downdraft airflow continuously pulls airborne dust and overspray straight down into the floor filters, away from your paint job. Meanwhile, the shortwave infrared lamps cure the paint from the inner layers outward. This prevents "skinning" (where the surface dries first, trapping solvents underneath), minimizes the risk of pop-boiling, and cuts your overall baking time in half compared to traditional hot-air convection booths.

Q2: Can the wall-mounted infrared heating zones be controlled independently?
A: Yes. The integrated infrared heating system is segmented into multiple independent zones controllable via the main panel. For smaller panels, spot repairs, or bumper touch-ups, operators can activate only the specific heating zones required. This targeted curing significantly reduces power consumption and lowers operating costs.

Q3: Is this spray booth fully compatible with waterborne paint systems?
A: Absolutely. Waterborne paints require precise, uniform airflow and controlled thermal energy to break the water barrier efficiently. The combination of clean, high-velocity laminar downdraft air and direct, shortwave infrared radiant heat ensures exceptionally rapid water evaporation and cross-linking, making it highly effective for both solvent-based and waterborne paint lines.

Q4: What is the recommended maintenance schedule for the filter elements?

A: To maintain optimal cabin pressure and a pristine, dust-free environment, we recommend the following replacement intervals under normal operating conditions:

1.Pre-Filters (Intake Air): Every 100 working hours.

2.Ceiling Fine Filters: Every 400 to 500 working hours.

3.Floor Paint-Stop Filters (Glass Fiber): Every 80 to 100 working hours, or when visible overspray accumulation slows down the exhaust airflow.

Here is the Youtube Link video for your reference

https://youtube.com/shorts/B3tQHiFbkC8?feature=share
