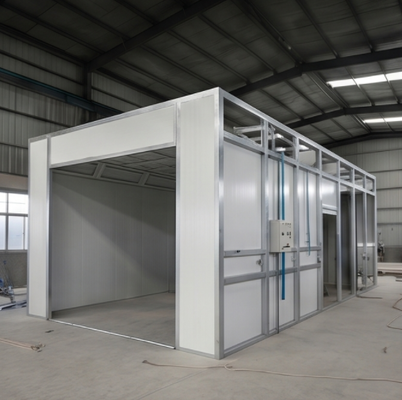

For clients requiring highly customized dimensions, cleanrooms, or integrated production line enclosures, our Pre-Fabricated Modular Framework is the ideal foundation. This product supplies the robust, precision-engineered galvanized steel skeleton and connecting nodes required to build a stable and secure cabin. It is designed for rapid on-site assembly, drastically reducing installation time and labor costs while offering endless flexibility for paneling and equipment integration.

Key Features

1.Quick-Assembly Modular Design: Pre-drilled, standardized structural components bolt together seamlessly without the need for on-site welding.

2.Corrosion-Resistant Materials: Constructed entirely from high-grade galvanized steel tubes and profiles, ensuring long-term structural integrity even in high-humidity environments.

3.High Structural Load Capacity: Engineered to safely support heavy ceiling filter plenums, lighting fixtures, and overhead conveyor tracks (Power and Free systems).

4.Infinite Customization: The skeletal framework can be scaled to any length, width, or height, adapting to specific factory layouts and equipment requirements.

Technical Specifications

See It In Action:

Seeing is believing. Check out our detailed step-by-step video guide to see how efficiently a CoatTech spray booth is assembled on-site through Youtube Video

https://youtu.be/lzobBHWHaWE

Frequently Asked Questions (FAQ)

Q1: What are the primary advantages of combining a downdraft system with infrared curing lamps?
A: This combination offers the ultimate environment for a flawless finish. The full downdraft airflow continuously pulls airborne dust and overspray straight down into the floor filters, away from your paint job. Meanwhile, the shortwave infrared lamps cure the paint from the inner layers outward. This prevents "skinning" (where the surface dries first, trapping solvents underneath), minimizes the risk of pop-boiling, and cuts your overall baking time in half compared to traditional hot-air convection booths.

Q2: Can the wall-mounted infrared heating zones be controlled independently?
A: Yes. The integrated infrared heating system is segmented into multiple independent zones controllable via the main panel. For smaller panels, spot repairs, or bumper touch-ups, operators can activate only the specific heating zones required. This targeted curing significantly reduces power consumption and lowers operating costs.

Q3: Is this spray booth fully compatible with waterborne paint systems?
A: Absolutely. Waterborne paints require precise, uniform airflow and controlled thermal energy to break the water barrier efficiently. The combination of clean, high-velocity laminar downdraft air and direct, shortwave infrared radiant heat ensures exceptionally rapid water evaporation and cross-linking, making it highly effective for both solvent-based and waterborne paint lines.

Q4: What is the recommended maintenance schedule for the filter elements?

A: To maintain optimal cabin pressure and a pristine, dust-free environment, we recommend the following replacement intervals under normal operating conditions:

1.Pre-Filters (Intake Air): Every 100 working hours.

2.Ceiling Fine Filters: Every 400 to 500 working hours.

3.Floor Paint-Stop Filters (Glass Fiber): Every 80 to 100 working hours, or when visible overspray accumulation slows down the exhaust airflow.

Here is the Youtube Link video for your reference

https://youtube.com/shorts/B3tQHiFbkC8?feature=share
